Installation
Electrocution hazard!
Always turn the Eurorack case off and unplug the power cord before plugging or unplugging any Eurorack
bus board connection cable. Do not touch any electrical terminals when attaching any Eurorack bus
board cable.
The Make Noise soundhack Spectraphon is an electronic music module requiring 230mA of +12VDC and
55mA of -12VDC regulated voltage and a properly formatted distribution receptacle to operate. It is
designed to be used within the Eurorack format modular synthesizer system.
Go to
http://www.makenoisemusic.com/
To install, find 34hp of space in your Eurorack synthesizer case, confirm proper installation of included

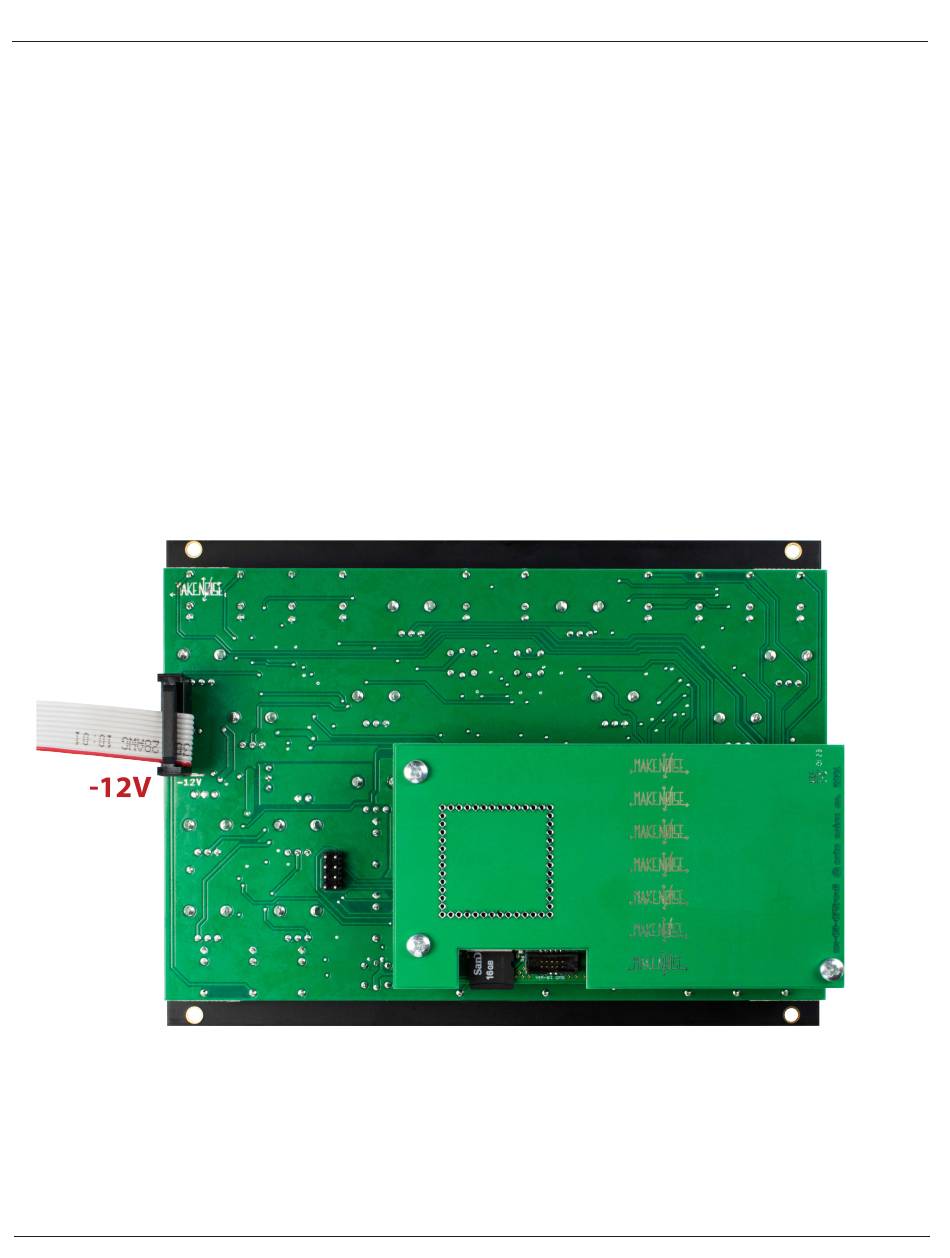

eurorack bus board connector cable on backside of module (see picture below), plug the bus board
connector cable into the Eurorack style bus board, minding the polarity so that the RED stripe on the cable is
oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U
Busboard, the NEGATIVE 12 Volt line is indicated by the white stripe.
Please refer to your case manufacturers' specifications for location of the Negative supply.
