Summary of Contents for Make Noise soundhack ECHOPHON

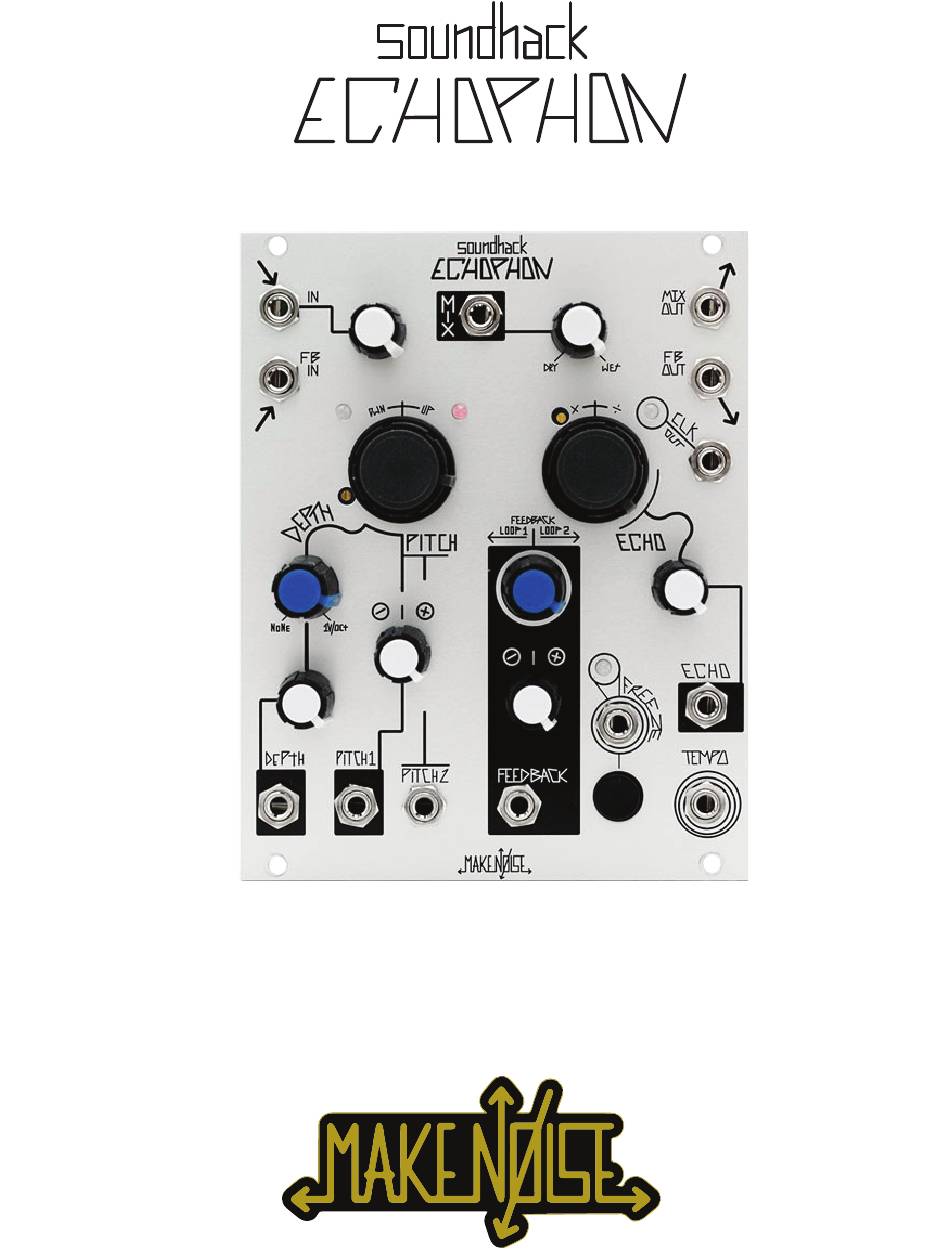

  • Page 1 v2.6...

  • Page 2: Table Of Contents

    Table of Contents: ECHOPHON FCC -----------------------------------------------------3 Limited Warranty ----------------------------------------4 Installation --------------------------------------------------5 Panel Controls ------------------------------------------7 Getting Started ----------------------------------------------9 External Feedback Loop ------------------------------10 Patch Ideas ------------------------------------------------11...

  • Page 3: Fcc

    This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. makenoisemusic.com Make Noise Co., 414 Haywood Road, Asheville, NC 28806...

  • Page 4: Limited Warranty

    Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply. During the warranty period, any defective products will be repaired or replaced, at the option of Make Noise, on a return-to-Make Noise basis with the customer paying the transit cost to Make Noise.

  • Page 5: Installation

    Eurorack style bus board, minding the polarity so that the RED stripe on the cable is oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U Busboard, the negative 12 Volt line is indicated by the white stripe.
  • Page 6 Panel Controls Echophon Panel Controls Audio Input/ Output 1A. Signal Input: AC coupled, expects standard signal level of 10Vpp signal. 2A. Level Control for Signal Input: overloads at 3:00 to 5:00. 3A. Mix CV Input: unipolar control input. Range 0V to +5V. 4A.

  • Page 7: Panel Controls

    Panel Controls Echophon Panel Controls (cont’d) Pitch Shift 1C. Temphonic LEDs: indicate mechanics of the pitch-shifting machine. 2C. Pitch Panel Control: bipolar panel control. At 12:00 no pitch shift, greater than 12:00 shifts pitch Up and less than 12:00 shifts pitch Down.
  • Page 8 Panel Controls Echophon Panel Controls (cont’d) Echo 1D Echo Time LED: Indicates Tempo of the Echo Clock. 2D Echo Clock Output: outputs the Echo Time as 4ms wide clock pulse. 0V-5Vpp 3D Echo Time Panel Control: sets time/ length of Echo, from 7ms to 1.7 sec 4D Echo Time CV Attenuator: unipolar attenuator for Echo Time CV Input.

  • Page 9: Getting Started

    Getting Started: Patch the signal to be processed into the Signal Input (1A). The associated Level Control (2A) accommodates modular synthesizer signals of 10Vpp for the rst 70% of its rotation. Beyond 2:00 on the Level Control, there is clipping followed by digital overloading.

  • Page 10: External Feedback Loop

    Using the Feedback Loop: Patch the Feedback Output (2B) to an external module such as the modDemix. Set up the external module to process the Feedback Output signal. For the modDemix, you could set up the typical Ring Modulation patch where you have a Sine or Triangle waveform from a VCO patched to the Carrier input on the modDemix.

  • Page 11: Patch Ideas

    Patch Ideas: All patches require signal to be processed patched to Signal Input with Level Control set to accommodate incoming signal and Mix Output patched to signal mixer/monitoring system. The Pillars of Hercules: this patch is designed for processing percussive sounds. Mix 12:00, Depth 2:00, Pitch 7:00, Feedback 7:00 (for Loop 1), Echo Time 7:00.
  • Page 12 Patch Ideas: (cont’d) Digicello: Patch Pink Noise to Signal Input of OPTOMIX Channel 1. Signal Output from OPTOMIX Channel 1 to Signal Input ECHOPHON. Make the following settings: Level 3:00, Mix 5:00, Depth full clockwise, Pitch full counter clockwise, Echo Time 8:00 Create a CV and Gate sequence (using René...
