Panel Controls (cont.)

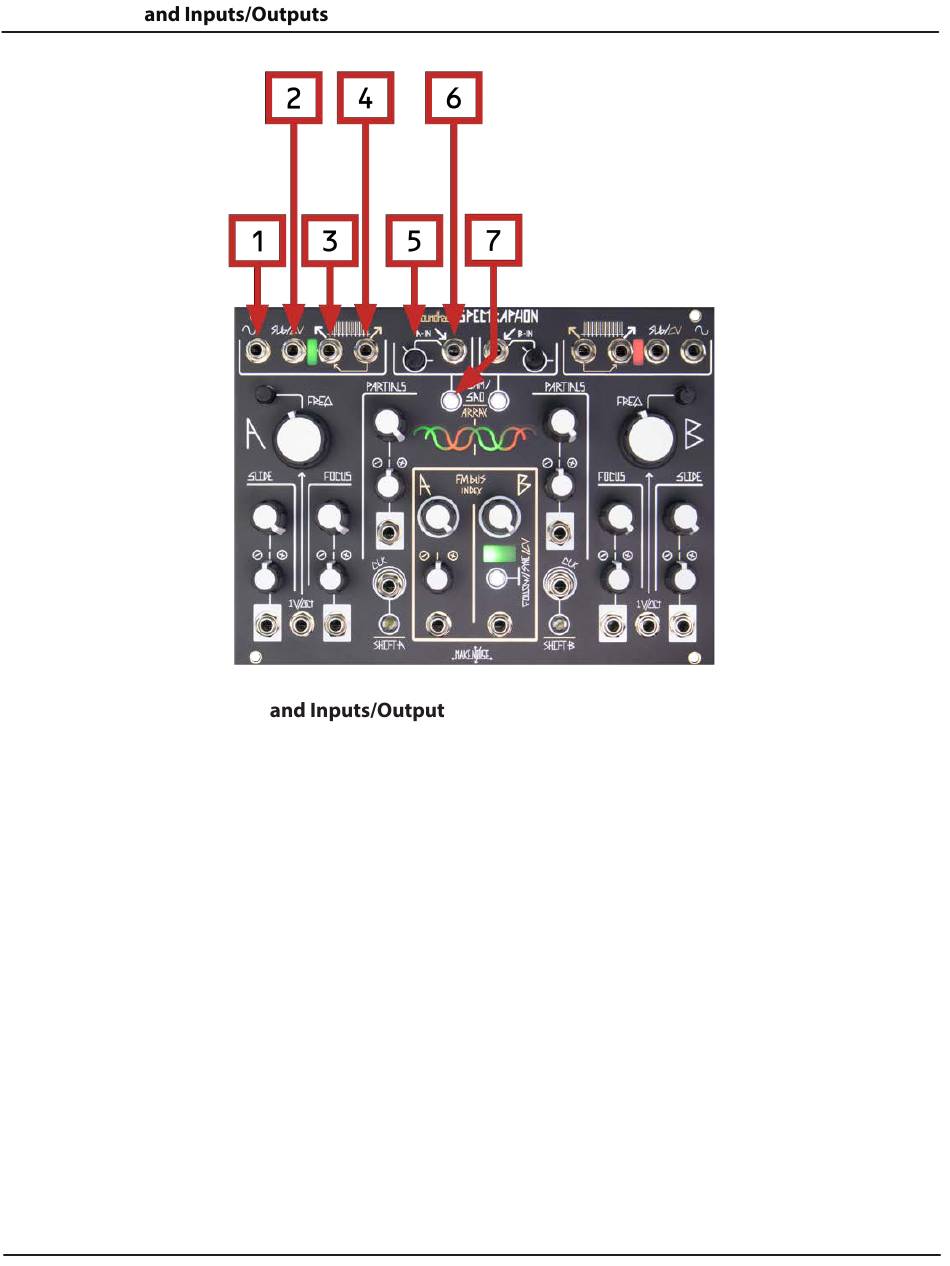

Spectraphon Panel Controls s
Side A Inputs and Outputs
1. Sine Wave output. Sine wave that oscillates at A Core Frequency.
2. Sub/CV Output. Sub/CV Output for Side A.
3. Odd Harmonic Output. Odd harmonics for Side A.
4. Even Harmonic Output. Even harmonics for Side A. Normalled to Odd Harmonic Output.
5. A-In Panel Control. Sets Input Level (SAM) or Even Harmonic Offset (SAO).
6. A-In CV Input. CV Input for A-In. Use depends on mode.
7. SAM/SAO/Array Button. Switches between SAM and SAO for Side A. Creates Array when pressed
while holding Shift-A in SAM.
