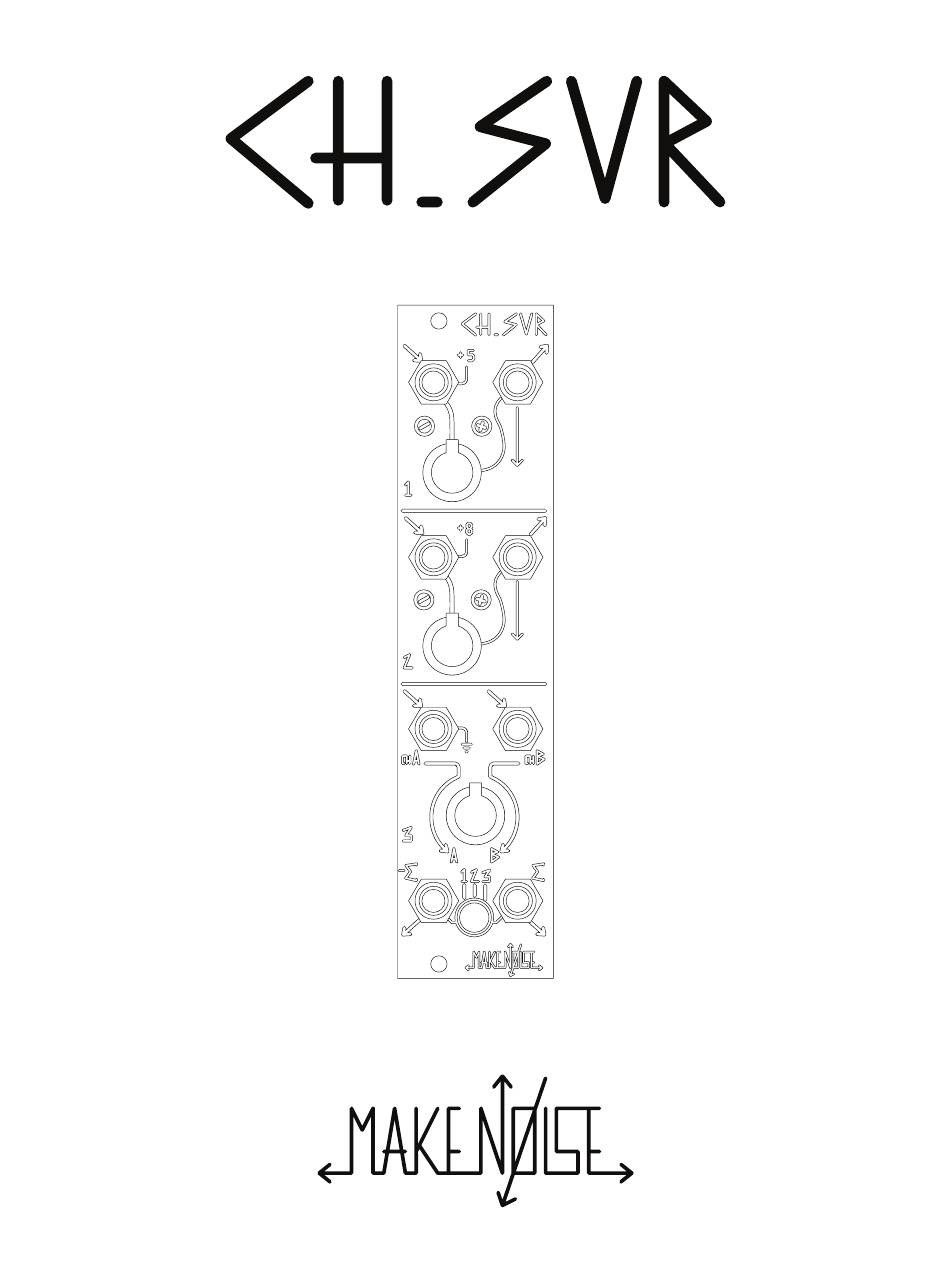

Make Noise CH.SVR Manual

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH.SVR and is the answer not in the manual?

Questions and answers

Related Manuals for Make Noise CH.SVR

Summary of Contents for Make Noise CH.SVR

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. LIMITED WARRANTY 2. INSTALLATION 3. INTRODUCTION 4. PANEL CONTROLS 5. GETTING TO KNOW CH.SVR 6. TIPS & TRICKS 7. PATCH IDEAS...

  • Page 3: Limited Warranty

    LIMITED WARRANTY Make Noise warrants this product to be free of defects in materials or construction for a period of one year from the date of purchase (proof of purchase/invoice required). Malfunction resulting from wrong power supply voltages, backwards or reversed eurorack bus board cable connection, abuse of the product, removing knobs, changing faceplates, or any other causes determined by Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply.

  • Page 4: Installation

    Eurorack style bus board, minding the polarity so that the RED stripe on the cable is oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U Busboard, the negative 12 Volt line is indicated by the white stripe.

  • Page 5: Introduction

    INTRODUCTION Did you know that MATHS started its life as a patch buddy for the Quad Multimode Gate? In the manual for MATHS (2009), Tony wrote: Ever since completing the QMMG design, I have felt that it needed a good buddy. A patch pal! Say hello to QMMG's best friend, MATHS.

  • Page 6: Panel Controls

    PANEL CONTROLS 1. Channel 1 Input: Normalled to +5VDC. Patch signal to be attenuverted by Channel 1 here. 2. Channel 1 Output: Outputs attenuverted version of the signal at the Channel 1 Input. When patched, removes Channel 1 from Sum and Inverted Sum. 3.

  • Page 7: Getting To Know Ch.svr

    GETTING TO KNOW CH.SVR Like its pal the MATHS, Ch.Svr is laid out top to bottom, with several channels in the upper portion of the module feeding SUM and INVerted Sum outputs at the bottom. However, instead of the individual channels being arranged left to right, Ch.Svr’s channels are arranged vertically.

  • Page 8: Tips & Tricks

    TIPS & TRICKS Anywhere you need more subtle modulation, Ch. Svr is there for you… now all your eurorack slivers may have subtle and intentional modulation they deserve. Use Ch. Svr before your Quantizer to cross fade between different sequences, combine patterns, turn a melody upside down (pattern inversion), transpose a sequence and use any combination of these tech- niques together to create new musical pattern variations.

  • Page 9: Patch Ideas

    PATCH IDEAS VOLTAGE MIRROR Patch signal to be mirrored to Ch3 signal input. Set Ch2 to fully negative, Ch3 to fully positive. Take Sum output. Patch dummy cable to Ch1 output. Adjust Ch2 offset to taste, or use Ch1 for the offset instead if the signal is smaller.
