Panel Controls (cont.)

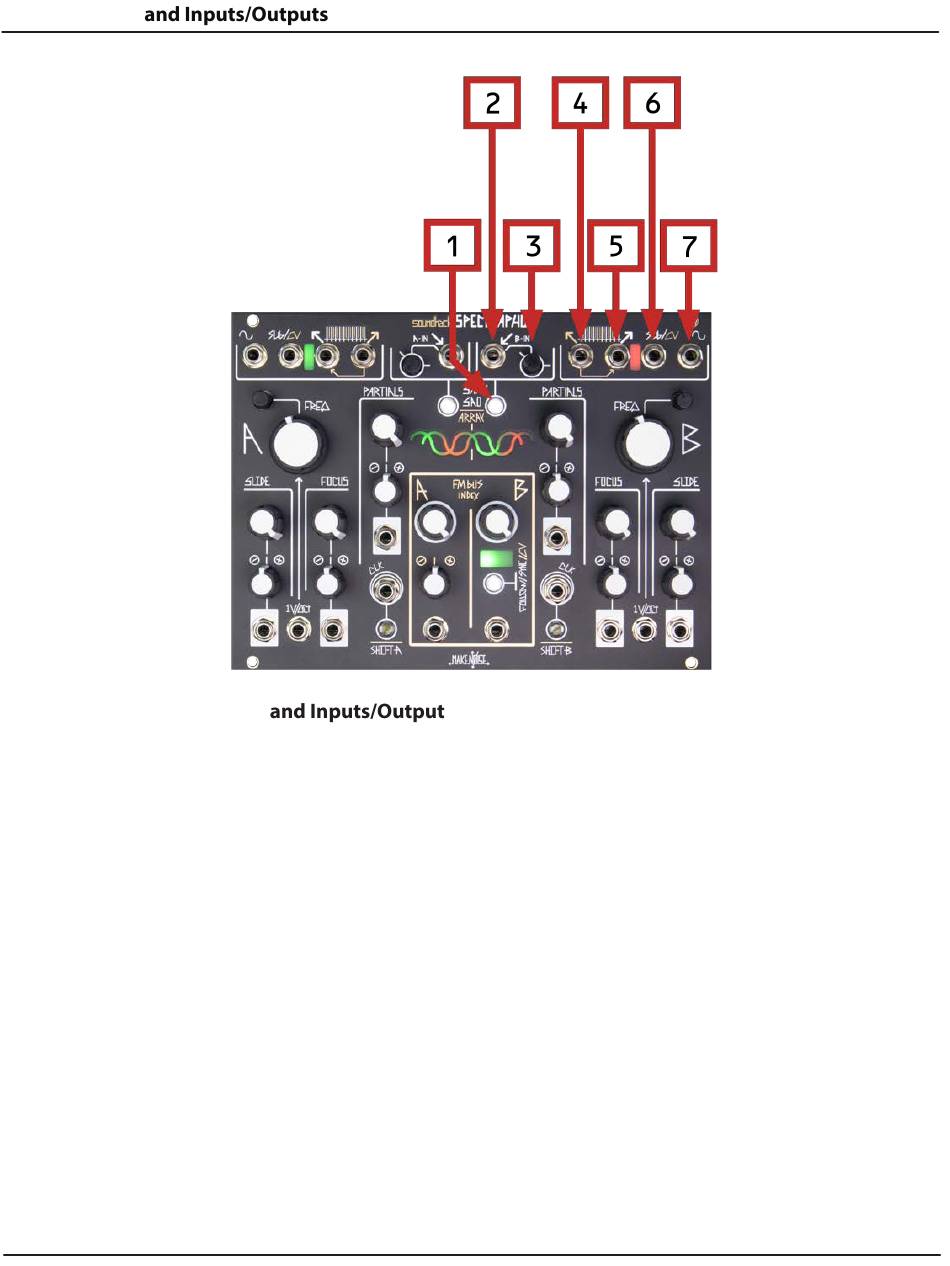

Spectraphon Panel Controls s
Side B Inputs and Outputs
1. SAM/SAO/Array Button. Switches between SAM and SAO for Side B. Creates Array when pressed
while holding Shift-B in SAM.
2. B-In CV Input. CV Input for B-In. Use depends on mode.
3. B-In Panel Control. Sets Input Level (SAM) or Even Harmonic Offset (SAO).
4. Even Harmonic Output. Even harmonics for Side B. Normalled to Odd Harmonic Output.
5. Odd Harmonic Output. Odd harmonics for Side B.
6. Sub/CV Output. Sub/CV Output for Side B.
7. Sine Wave output. Sine wave that oscillates at B Core Frequency.
