10

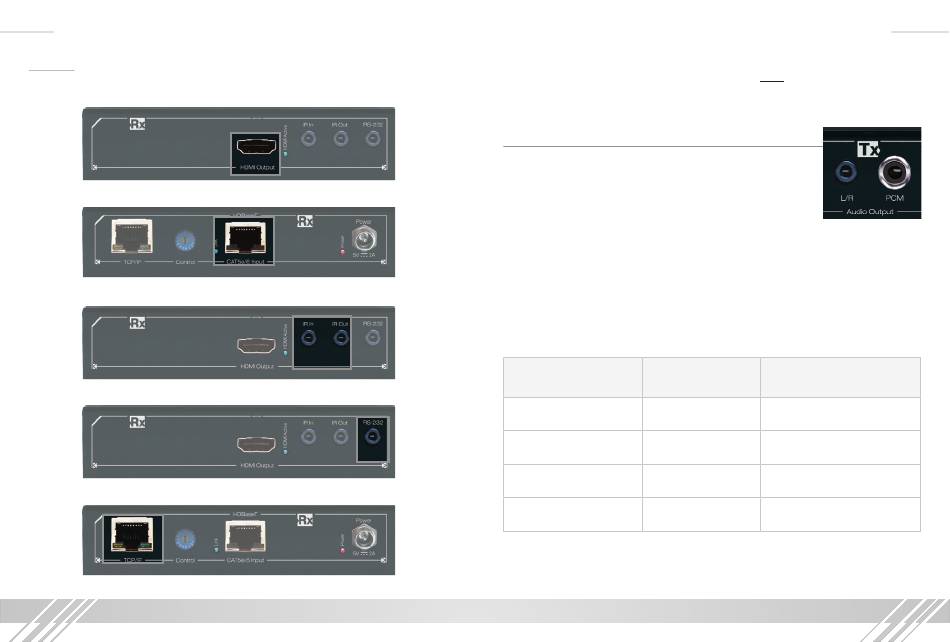

Rx Unit:
Using a short HDMI cable, connect your output / display device to the HDMI port
labeled "HDMI Output".
Connect the CAT5e/6 cable at the port labeled "CAT5e/6 Input".
If you are sending or receiving IR, connect included IR Sensor and/or IR Emitter
If you are transmitting or receiving RS-232, connect to the RS-232 port
For Ethernet, connect the cable to TCP/IP RJ45 port.
After all the connections are made, connect power to the Tx and Rx
units using the included power supplies and then power up your source
and display equipment.

Audio De-Embedding Outputs

Analog L/R Audio output (3.5mm Stereo):
Provides de-embedded 2ch analog audio output
from HDMI input source
Digital Audio output (Digital Coaxial RCA):
Provides de-embedded Digital Audio Output from HDMI input
Notes:
There are no volume or tone control features
There are no DSP features. Ie, in order to achieve 2ch analog audio output,
the HDMI input source audio format must be 2ch
External audio connectors may be set off via RS-232.
See the RS-232 Commands section for more information.
Audio Input
Analog L/R
Signal Format
2CH PCM
Pass-through
Multi-Channel PCM
DOLBY/DTS
HD Audio
Digital Audio
output
output
Pass-through
MUTE
MUTE
MUTE
Pass-through
MUTE
MUTE
11
