PCBKDCATHD
HDMI CAT5/5e/6 Extender
Operating Instructions
PCBKDCATHD
PCBKDCATHD

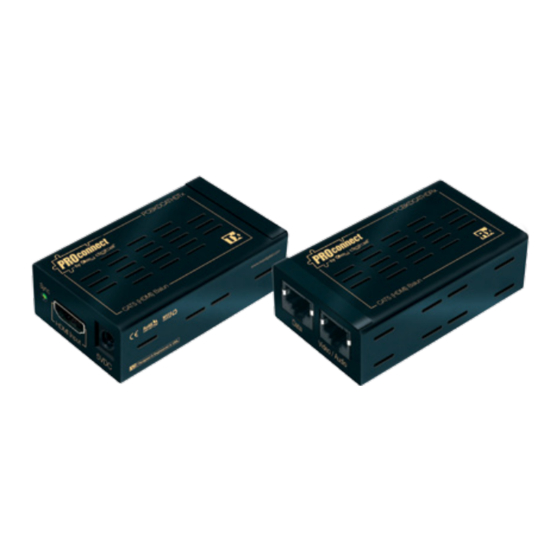

PCBKDCATHD is a master box that includes one (1) PCBKDCATHDTx Transmitter
Balun and one (1) PCBKDCATHDRx Receiver Balun. PCBKDCATHD is capable of
sending 1080P/60 to distances of up to 150 ft., and lower resolutions up to 280 ft.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Key Digital PRO Connect PCBKDCATHD Tx
Summary of Contents for Key Digital PRO Connect PCBKDCATHD Tx
-
Page 1: Operating Instructions
PCBKDCATHD HDMI CAT5/5e/6 Extender Operating Instructions PCBKDCATHD PCBKDCATHD PCBKDCATHD is a master box that includes one (1) PCBKDCATHDTx Transmitter Balun and one (1) PCBKDCATHDRx Receiver Balun. PCBKDCATHD is capable of sending 1080P/60 to distances of up to 150 ft., and lower resolutions up to 280 ft. - Page 2 Quick Set Up Guide Table of Contents Installation Instructions..........Connect the HDMI input source cable to HDMI Input Mounting the PCBKDCATHD...
-
Page 3: Installation Instructions
Using a power supply other than the one provided by An optional cable clip (included) enables a method ProConnect by Key Digital ® with the unit VOIDS THE ENTIRE for securing HDMI cables to the mounting bracket... -
Page 4: Supported Resolutions
DVI applications for the PCBKDCATHD Supported Resolutions The PCBKDCATHD can also be used to extend DVI video cable runs. Common Video Resolutions For these applications, use DVI to HDMI (Key Digital model number KD-MFHDMI or ® KD-FMHDMI) adapters. Resolution Common Name... -
Page 5: Technical Specifications
Technical Specifications Important Product Warnings: Connectors: Connect CAT5 cables before providing power to the unit. One HDMI connector labeled “HDMI Input” (PCBKDCATHDTx) / “HDMI Output” ➔ (PCBKDCATHDRx) Test for proper operation before securing unit behind walls or in hard to access spaces. Two CAT5 output connectors labeled “Data”... -
Page 6: Product Support
Phone: 914-667-9700 ➔ E-mail: tech@keydigital.com ➔ Repairs and Warranty Service Should your product require warranty service or repair, please obtain a Key Digital ® Return Material Authorization (RMA) number by contacting us at: Phone: 914-667-9700 ➔ E-mail: rma@keydigital.com ➔... - Page 7 Rev 0 – Jan 2010 521 East 3rd Street, Mount Vernon, NY 10553 Phone 914.667 .9700 914.668.8666 www.keydigital.com...
