Page 1: Operating Instructions

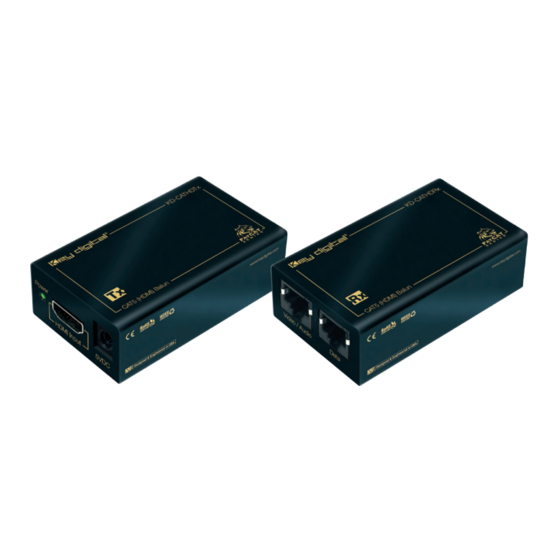

KD-CATHD HDMI CAT5/5e/6 Extender Operating Instructions KD-CATHD KD-CATHD KD-CATHD is a master box that includes one (1) KD-CATHDTx Transmitter Balun and one (1) KD-CATHDRx Receiver Balun. KD-CATHD is capable of sending 1080P/60 to distances of up to 150 ft., and lower resolutions up to 280 ft. -
Page 2: Table Of Contents
............KD-CATHDRx Please read all instructions to insure safe operation of the product. Plasma Finally, connect the CAT5 Outputs of the KD-CATHDTx Balun to receiving KD-CATHDRx Balun. © 2009 Key Digital, Inc. All rights reserved. -
Page 3: Hdmi Input
KD-CATHDTx chassis by fastening screws until CAUTION: No other power supply adapter can be used with this unit! mounting clips are fixed firmly against the units. Using a power supply other than the one provided by Key Digital with ®... -
Page 4: Dvi Applications For The Kd-Cathd
DVI applications for the KD-CATHD Supported Resolutions The KD-CATHD can also be used to extend DVI video cable runs. Common Video Resolutions For these applications, use DVI to HDMI (Key Digital model number KD-MFHDMI or KD-FMHDMI) adapters. Resolution Common Name... -
Page 5: Technical Specifications
Page 6 Page 7 Technical Specifications Important Product Warnings: Connect CAT5 cables before providing power to the unit. Test for proper operation before securing unit behind walls or in hard to access spaces. If installing the KD-CATHD into wall or mounting bracket into sheet-rock, provide proper screw support with bolts or sheet-rock anchors. -
Page 6: How To Contact Key Digital
➔ Repairs and Warranty Service Key Digital Trainings Should your product require warranty service or repair, please obtain a Key Digital For questions about Key Digital Trainings please contact us at: ® Return Material Authorization (RMA) number by contacting us at: Phone: 914-667-9700 ➔... - Page 7 , led by digital video pioneer Mike Tsinberg, ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high quality video imaging is important. Key Digital ® is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers.
