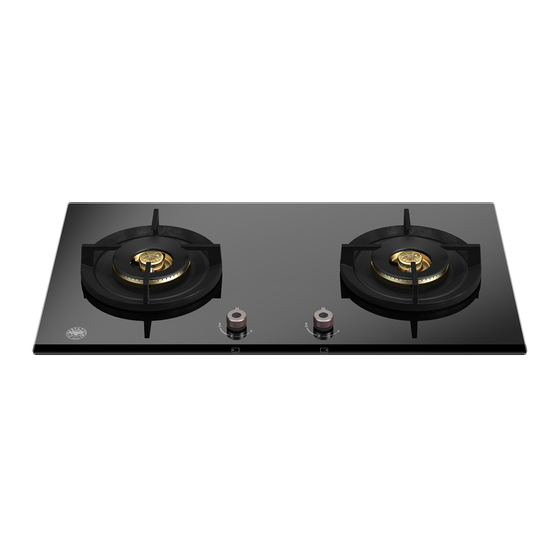

- Page 1 BERTAZZONI INSTALLATION AND USER MANUAL BUILT-IN GAS HOBS MODEL P94GV (GLASS) COMM. CODE P782BPROGNE P782BMODGNE 3100790 WWW.BERTAZZONI.COM 1...
-
Page 2: Table Of Contents
/ Contents CONTENTS INTRODUCTION AND WARNINGS MANUFACTURER LIABILITY ENVIRONMENTAL PROTECTION GENERAL SAFETY INSTRUCTIONS USAGE INSTRUCTIONS APPLIANCE DATA PLATE PLASTIC PACKAGING TECHNICAL INSTALLATION INSTRUCTIONS HOB INSTALLATION IMPORTANT INFORMATION INSTALLING THE HOB ABOVE AN OVEN INSTALLING THE HOB ABOVE A CUPBOARD OR DRAWERS HOB FASTENING ROOM VENTILATION LOCATION AND VENTILATION... - Page 3 By making them versatile and easy-to-use, cooking with Bertazzoni becomes a real pleasure. This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come.
-
Page 4: Introduction And Warnings
/ Introduction INTRODUCTION READ THESE INSTRUCTIONS CAREFULLY ENVIRONMENTAL PROTECTION BEFORE INSTALLING USING APPLIANCE. These instructions are valid only for the countries Please think of the environment whose identifying symbols are shown on the when disposing of the packaging. appliance label. The manufacturer shall not be held liable for property damage or personal injury resulting This appliance is marked in accordance with... -
Page 5: General Safety Instructions
/ Introduction INTRODUCTION GENERAL SAFETY INSTRUCTIONS • Using the hob generates heat, moisture and • During use, the appliance and its accessible combustion products – keep the area well parts become very hot. ventilated during operation. • Never touch the heating elements during use. •... -
Page 6: Technical Installation Instructions
/ Installation TECHNICAL INSTALLATION INSTRUCTIONS TECHNICAL INSTALLATION INSTRUCTIONS The installation, adjustments, transformations and IMPORTANT INFORMATION maintenance listed in this section must only be The hob may be installed between kitchen cabinets performed by qualified technicians (in accordance or between a cabinet and a (masonry) wall. The with applicable legislation). -
Page 7: Installing The Hob Above An Oven
/ Installation TECHNICAL INSTALLATION INSTRUCTIONS TECHNICAL INSTALLATION INSTRUCTIONS INSTALLING THE HOB ABOVE A CUPBOARD INSTALLING THE HOB ABOVE AN OVEN The clearance between the hob and the OR DRAWERS The clearance between the hob and the kitchen furniture or other installed appliances kitchen units must be enough to ensure must be enough to ensure sufficient ventilation sufficient ventilation and air discharge. -
Page 8: Hob Fastening
/ Installation / Ventilation ROOM VENTILATION HOB FASTENING In order to allow for correct appliance operation, In order to prevent accidental water ingress into the room in which it is installed must have the unit below, the appliance is fitted with a special continuous ventilation. -
Page 9: Location And Ventilation
/ Ventilation / GAS LOCATION AND VENTILATION CONNECTING THE APPLIANCE TO THE GAS Gas cooking appliances must always have the SUPPLY corresponding combustion products extracted Before connecting the appliance to the gas via cooker hoods connected to a flue or directly supply, check that the data on the product to the outside (see Figure A). -
Page 10: Precautions When Using The Product With Lpg (Butane/Propane)
/ Gas PRECAUTIONS WHEN USING THE PRODUCT We therefore recommend: WITH LPG (BUTANE/PROPANE) • Using only LPG cylinders from official resellers authorised by the various manufacturers The gas taps installed on the hob must operate • Using the cylinders until they are empty but with liquefied gas of controlled quality, supplied at without tilting or overturning them the correct nominal pressure. -
Page 11: Gas Conversion
/ Gas conversion GAS CONVERSION WARNING! Isolate the appliance’s gas and electricity supplies before performing any maintenance. The gas conversion procedure involves two steps: • Replacing the nozzles • Burner minimum adjustment WARNING: After performing the above-mentioned procedures, the technician must apply the label corresponding to the new gas regulation to replace the old one. -
Page 12: Electrical Connection
/ Electrical connection / Maintenance ELECTRICAL CONNECTION LECTRICAL CONNECTION MAINTENANCE REPLACING COMPONENTS The electrical connection must be made in accordance with applicable standards Isolate the appliance’s gas and electricity supplies legislation. before performing any maintenance. Before connecting up the appliance, check that: Contact an authorised service centre if functional •... -
Page 13: Hob Description
/ Description of Hobs DESCRIPTION OF HOBS CONTROLS / BURNERS 1 Right side dual burner 2 Left side dual burner WARNING SYMBOLS FOR TOUGHENED GLASS GAS HOB Do not place anything, e.g. flame tamer or asbestos mat, between pan and pan support as serious damage to the appliance may result Do not remove the pan support and enclose the... -
Page 14: Using The Appliance
/ Use USING DUAL BURNERS BURNERS AND GRATES The flame spreaders and burner caps must be Dual burners offer greater flexibility, as it is correctly positioned in order for the hob to operate possible to light both rings or just the inner ring. properly. -
Page 15: Safety System
/ Use / Cleaning CLEANING THE APPLIANCE CLEANING THE APPLIANCE SAFETY SYSTEMS A flame sensor (thermocouple) is installed on each burner to prevent gas from coming out if the Before performing any cleaning operation, wait flame is accidentally extinguished. for all parts to cool down and isolate the hob’s If there is a blackout of the electricity supply, the electricity and gas supply. -
Page 16: Troubleshooting
If the burner flame accidentally goes out, the gas WARRANTY AND CUSTOMER SERVICE: continues to exit for a few moments before the WWW.BERTAZZONI.COM safety device activates. Turn the control knob to the OFF (zero) position and do not attempt ignition for at least 1 minute, thereby letting the gas disperse, which could otherwise be a danger. - Page 17 For Singapore market: P782BPROGNE Additional Safety Precautions: The warning statement – In the event of the burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least 1 min. Do not press the control knob for more than 15 seconds. If the burner does not ignite within these 15 seconds, release the control knob and open the door or wait for at least 1 minute before making a new ignition attempt.
