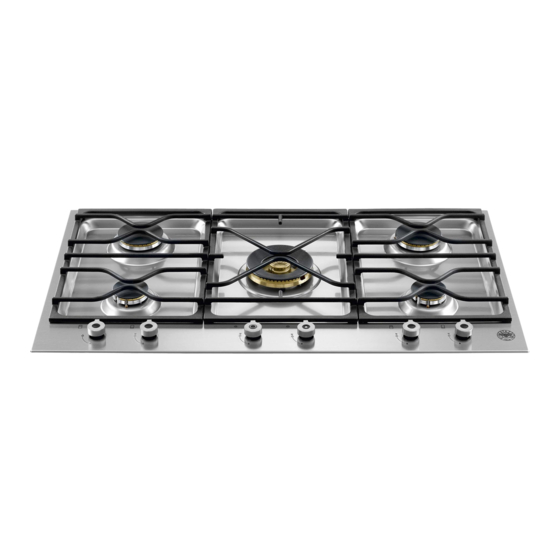

Bertazzoni PM36500X Instructions For The Installation, Maintenance And Use

Bertazzoni PM36500X Instructions For The Installation, Maintenance And Use

Hide thumbs Also See for PM36500X:

Advertisement

Quick Links

INSTRUCTIONS FOR THE INSTALLATION, MAINTENANCE
AND USE OF FIXED HOBS WITH GAS OR MIXED SUPPLY
DIMENSIONS:
Models PM36500X
Models PM365S0X
(W) x
(890 mm)
(520 mm)
Type 'A'
Type 'B'
(D)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM36500X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bertazzoni PM36500X

  • Page 1 INSTRUCTIONS FOR THE INSTALLATION, MAINTENANCE AND USE OF FIXED HOBS WITH GAS OR MIXED SUPPLY DIMENSIONS: (W) x (890 mm) (520 mm) Models PM36500X Type ‘A’ Models PM365S0X Type ‘B’...
  • Page 2: What To Do If You Smell Gas

    IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR’S USE. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. OBSERVE ALL GOVERNING CODES AND ORDINANCES. WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. Do not store or use gasoline or other flammable vapors and liquid in the vicinity of this or any other appliance.
  • Page 3 Requirements 1. Overhead clearances (Minimum values) The minimum overhead clearances shall be in accordance with the minimum values indicated in the table n.1 and are shown and in the fig. 1- 2 Range hoods and exhaust fans shall be installed in accordance with the manufacturer’s instructions. However, in no case shall the clearance between the top of the highest burner of the cooking appliance and the range hood be less than 650mm.
  • Page 4 This appliance is not equipped with devices to remove the products of combustion. The appliance must therefore be connected following the norms for installation mentioned above. Special attention must be paid to the information below regarding aeration and ventilation of the premises. VENTILATION OF THE PREMISES To guarantee that the appliance works correctly it is necessary that the place where the appliance is installed is continuously ventilated.
  • Page 5: Maintenance Of The Machine

    Wiring diagrams Wiring diagram description For hotplate see Fig. 13. 1. Cable terminal L. Black 2. Ignition switch N. White 3. Spark generator T. Green (earth) 4. Ignition spark MAINTENANCE OF THE MACHINE CHANGING THE PARTS Before carrying out any maintenance work, disconnect the appliance from the gas and electric supply.
  • Page 6: Service & Maintenance Instructions

    Regulation of burners Regulation of the "MINIMUM" on the burners To regulate the minimum on the burners carry out the following procedure indicated below: 1) Turn on the burner and put the knob onto position MINIMUM ( small flame ). 2) Remove the knob of the tap which is set for standard pressure.
  • Page 7: Cleaning The Appliance

    Burners fitted with a safety device (thermocouple): Turn the knob that corresponds to the burner selected counterclockwise to the MAXIMUM position at the etched star (large flame) and then press the knob down to activate the spark ignition. Once ignited, keep pressing the knob for about 10 seconds to allow the flame to heat the thermocouple.
  • Page 8 Fig. 1 Fig.2 Fig. 3...
  • Page 9 Fig. 3A Fig. 3B Fig.4 Fig.5A Fig.5B Fig.6 Fig.7...
  • Page 10 Fig.8 Fig.9 Fig.10...
  • Page 11 Fig.11 Fig.12 Fig.13 Fig.14...
  • Page 12 3100071...
