INSTRUCTIONS AND ADVICE FOR THE
USE, INSTALLATION AND MAINTENANCE
OF GAS FUELLED BUILT - IN HOT PLATES
Dear Customer,
thank you for having purchased one of our products.
We are certain that this new, modern, functional and practical appliance, built with the very highest
quality materials, will meet your requirements in the best possible way. This appliance is easy to
use. It is, however, important to thoroughly read the instructions in this handbook in order to obtain
the best results.
These instructions are only valid for the countries of destination, the identification symbols
of which are indicated on the cover of the instruction manual and on the appliance itself.
The manufacturer shall not be held responsible for any damages to persons or property
caused by incorrect installation or use of the appliance.
Model: P7C01CONXF
The Manufacturer shall not be held responsible for any inaccuracies in this handbook due to printing or
transcription errors; the designs in the figures are purely indicative. The Manufacturer also reserves the right
to make any modifications to the products as may be considered necessary or useful, also in the interests of
the user, without jeopardizing the main functional and safety features of the products themselves. This cook
top was designed to be used exclusively as a cooking appliance: any other use (such as heating
rooms) is to be considered improper and dangerous.
COD. 04067IZ - 07.06.2013
Advertisement
Table of Contents
Related Manuals for Bertazzoni P7C01G9XT
Summary of Contents for Bertazzoni P7C01G9XT
- Page 1 INSTRUCTIONS AND ADVICE FOR THE USE, INSTALLATION AND MAINTENANCE OF GAS FUELLED BUILT - IN HOT PLATES Dear Customer, thank you for having purchased one of our products. We are certain that this new, modern, functional and practical appliance, built with the very highest quality materials, will meet your requirements in the best possible way.

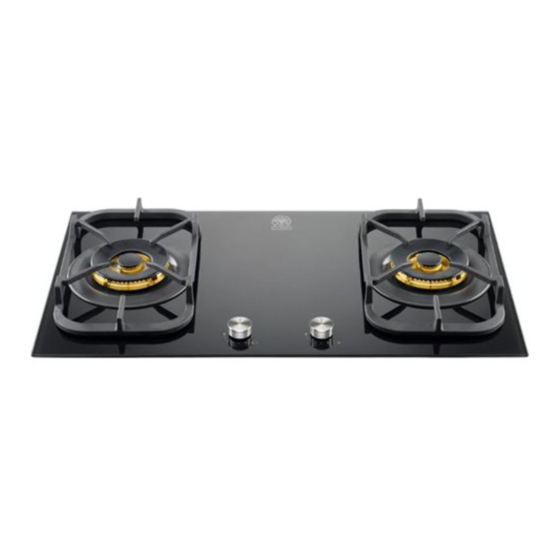

- Page 2 DESCRIPTION OF HOBS TYPE: PCZ 90 A P7C01G9XT P9C01G9X7 1 DUAL burner of 4750 - 5000 W 2 Double crown burner of 4750 - 5000 W 3 Pan support 4 Burner n° 1 control knob 5 Burner n° 2 control knob Attention: this appliance has been manufactured for domestic use only and it employment by private person.
- Page 3 1) TRADITIONAL BURNERS position obtaining the maximum flow capacity of both flames. A diagram is screen-printed above each knob on When the flames are lit, keep the knob pressed for the front panel. This diagram indicates to which a few seconds, until the device automatically keeps burner the knob in question corresponds.
- Page 4 - The machine must not be used by people Burners Power W Pan Ø in cm (including children) with impaired mental or 4750 ÷ 5000 22 ÷ 27 DUAL total physical capacities, or without experience of using electrical devices, unless supervised or 8 ÷...
- Page 5 WARNINGS AND ADVICE FOR THE USER: ●use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The room must therefore be well ventiladed by keeping the natural air vents clear (see fig. 3) and by activating the mechanical aeration device (suction hood or electric fan fig.
-
Page 6: Electric Hob
CLEANING IMPORTANT: - After a period of time may appear metal reflex and always disconnect the appliance from the gas scratches (fig. 6/A) due to the wrong cleaning and and electricity mains before carrying out any the wrong use of the pots. The scratches are cleaning operation. -
Page 7: Installation
INSTALLATION TECHNICAL INFORMATION 3) INSTALLING THE HOT PLATE FOR THE INSTALLER Check that the appliance is in a good condition after having removed the outer packaging and internal Installation, adjustments of controls and wrappings from around the various loose parts. In maintenance must only be carried out by a case of doubt, do not use the appliance and contact qualified engineer. - Page 8 INSTALLATION 4) FIXING THE HOT PLATE - Evenly and securely fix the seal to the crystal, pressing it in place with the fingers. The hot plate has a special seal which prevents - Insert the hooks into their relative housings and liquid from infiltrating into the cabinet.
-
Page 9: Room Ventilation
INSTALLATION pressure. Gas connection must comply with IMPORTANT INSTALLATION the pertinent standards and provisions in SPECIFICATIONS force. When gas is supplied through ducts, the The installer should note that the appliance appliance must be connected to the gas supply that side walls should be no higher than the system: hot plate itself. -
Page 10: Electrical Connection
INSTALLATION current installation regulations. 8) ELECTRICAL CONNECTION - Remember that the earth wire must not be interrupted by the circuit-breaker. - For optimum safety, the electrical connection may IMPORTANT: the appliance must be also be protected by a high sensitivity differential installed following the manufacturer's instructions. - Page 11 ADJUSTMENTS Always disconnect the appliance from the It is understood that only burners operating electricity main before making any adjustments. with Town gas should be subjected to the above All seals must be replaced by the technician at mentioned adjustments. The screw must be the end of any adjustments or regulations.
-
Page 12: Replacing The Injectors
CONVERSIONS 10) REPLACING THE INJECTORS paragraphs 9. The technician must reset any seals on the regulating or pre-regulating The burners can be adapted to different types of devices. gas by mounting injectors suited to the type of gas The envelope with the injectors and the labels in question. - Page 13 SERVICING Always disconnect the appliance from the following instructions: electricity and gas mains before proceeding - remove the tap. with any servicing operation. - Clean the cone and its housing using a cloth soaked in diluent. 11) REPLACING HOT PLATE PARTS - Lightly spread the cone with the relative grease.
- Page 14 SERVICING CABLE TYPES AND SECTIONS TYPE OF TYPE OF SINGLE - PHASE HOT PLATE CABLE POWER SUPPLY Gas hot plate H05 RR - F Section 3 x 0.75 mm ATTENTION!!! If the power supply cable is replaced, the installer should leave the ground wire longer than the phase conductors (fig.
- Page 15 TECHNICAL DATA ON THE DATA LABEL 2 BURNERS G30 - LPG = 30 mbar G20 - NATURAL = 20 mbar G110 - TOWN = 15 mbar gas rate = 9.5 kW Tot.Nom.L.P.G. gas rate = 10.0 kW Tot.Nom.H.K.Town rate = 691 g/h (G30) Tot.Nom.L.P.G.
- Page 16 TECHNICAL DATA FOR THE APPLIANCE GAS REGULATION...
