INSTRUCTIONS FOR THE INSTALLATION, MAINTENANCE
AND USE OF FIXED HOBS WITH GAS OR MIXED SUPPLY

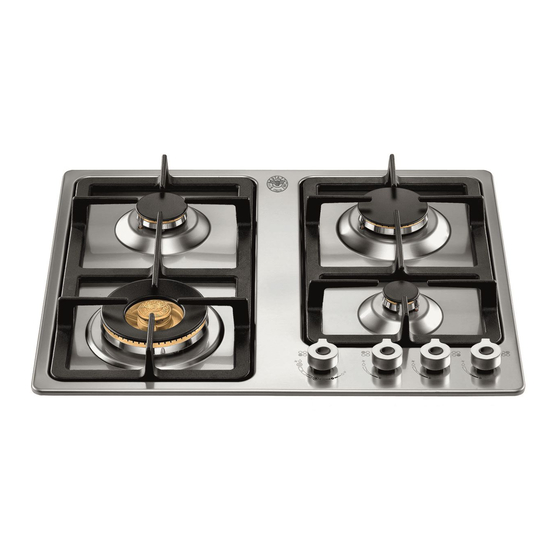

59X50 cm (TYPE P61/P61V) Model P680 1 PRO X & P680 1 H9 X
86X50 cm (TYPE P91/P91V) Model P910 1 PRO X & P910 1 H9 X
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P680 1 PRO X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bertazzoni P680 1 PRO X

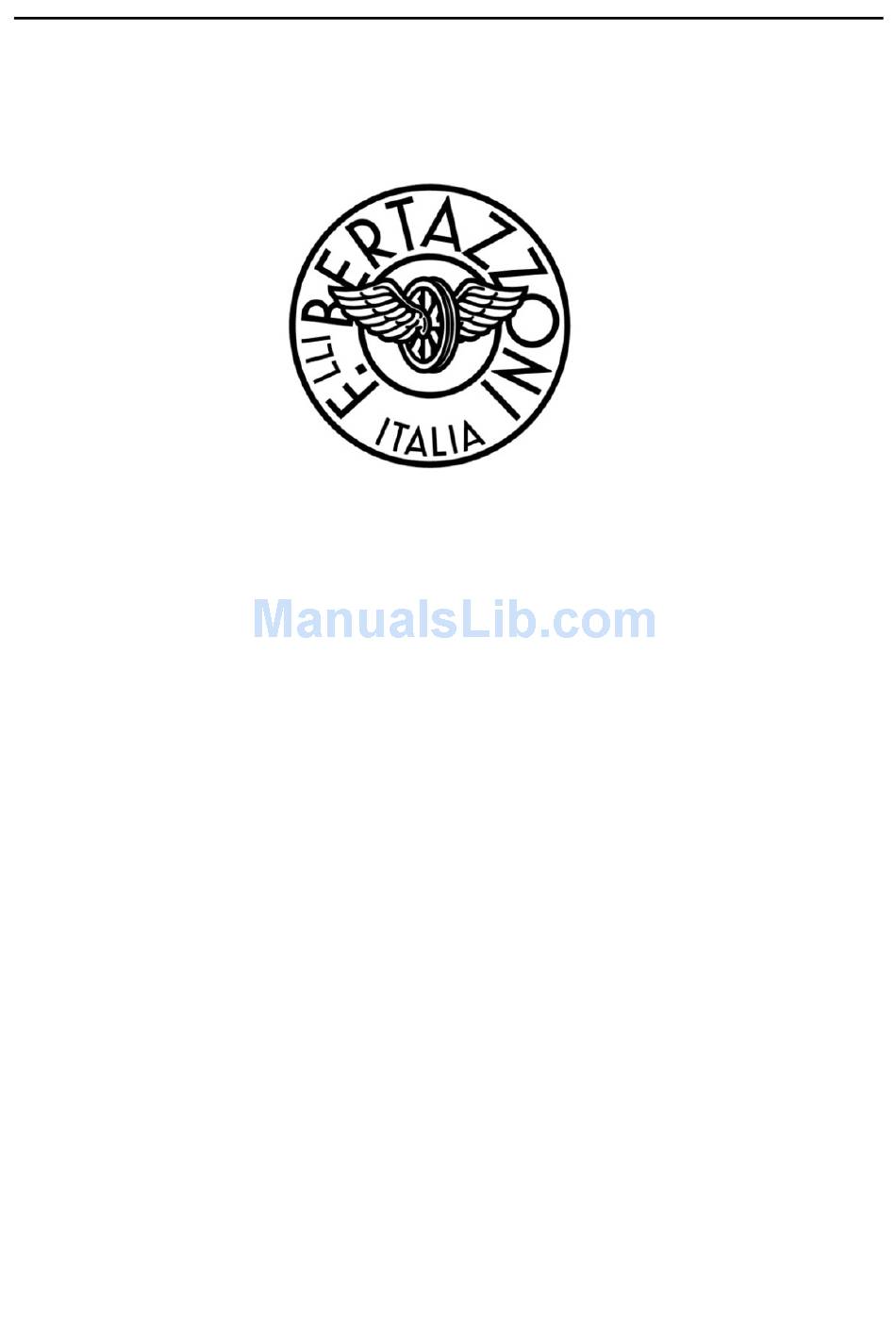

  • Page 1 INSTRUCTIONS FOR THE INSTALLATION, MAINTENANCE AND USE OF FIXED HOBS WITH GAS OR MIXED SUPPLY 59X50 cm (TYPE P61/P61V) Model P680 1 PRO X & P680 1 H9 X 86X50 cm (TYPE P91/P91V) Model P910 1 PRO X & P910 1 H9 X...
  • Page 2: Table Of Contents

    These instructions are valid only for those countries which are indicated by their identification symbol on the front cover of the instruction booklet and on the label on the appliance. The manufacturer cannot be held responsible for any damage to things or persons caused by an incorrect installation or by incorrect use of the appliance.
  • Page 3: Fixing The Hob - Advice About Installation

    Table N°.1 L1 min (cm) W (cm) D (cm) L2 min (cm) L3 min (cm) L4 min (cm) FIXING THE HOB In order to prevent liquids from accidentally leaking into the kitchen unit underneath the appliance is equipped with a special seal. To put on this seal follow the instructions below very carefully.
  • Page 4: Adaptation To Different Types Of Gas

    Ensure that the available gas supply is the same as the gas type label affixed to the base of the hob. If not, contact Bertazzoni for a Gas Conversion Kit. The gas supply pressure must be adjusted in accordance with the data label for the gas type.
  • Page 5: Use And Maintenance Manual

    When satisfied with the hotplate, please instruct the user on the correct method of operation. In case the appliance fails to operate correctly after all checks have been carried out, please call the Bertazzoni Service Centre. USE AND MAINTENANCE MANUAL IMPORTANT SAFETY INSTRUCTIONS ...
  • Page 6: Cleaning Of The Appliance

    • Burners not igniting properly. • Gas valves, which are difficult to turn. In case the appliance fails to operate correctly, contact Bertazzoni. CLEANING OF THE APPLIANCE Before carrying out any cleaning operation disconnect the appliance from the electric mains and turn off the main tap which supplies the appliance with gas.
  • Page 7 Any subsequent necessary repairs or adjustments must be carried out with the greatest care and attention by authorised personnel. For this reason, we strongly advise you contact the Bertazzoni Service Center, specifying the nature of the problem, the model of the equipment and the serial number.
  • Page 8: Figures

    Fig.1 Fig.2 Fig.3 Fig.4 Fig.5A Fig.5B Fig.6A Fig.6B Fig.7...
  • Page 9 Fig. 8 Fig. 9 Fig.10 Fig.11 Fig.12 Fig.13...
  • Page 10: Electrical Diagran

    Fig.14 Fig.15 Fig.16...
  • Page 11 P680 1 H9 X P910 1 H9 X Fig.17...
  • Page 12 Cod. 310693...
