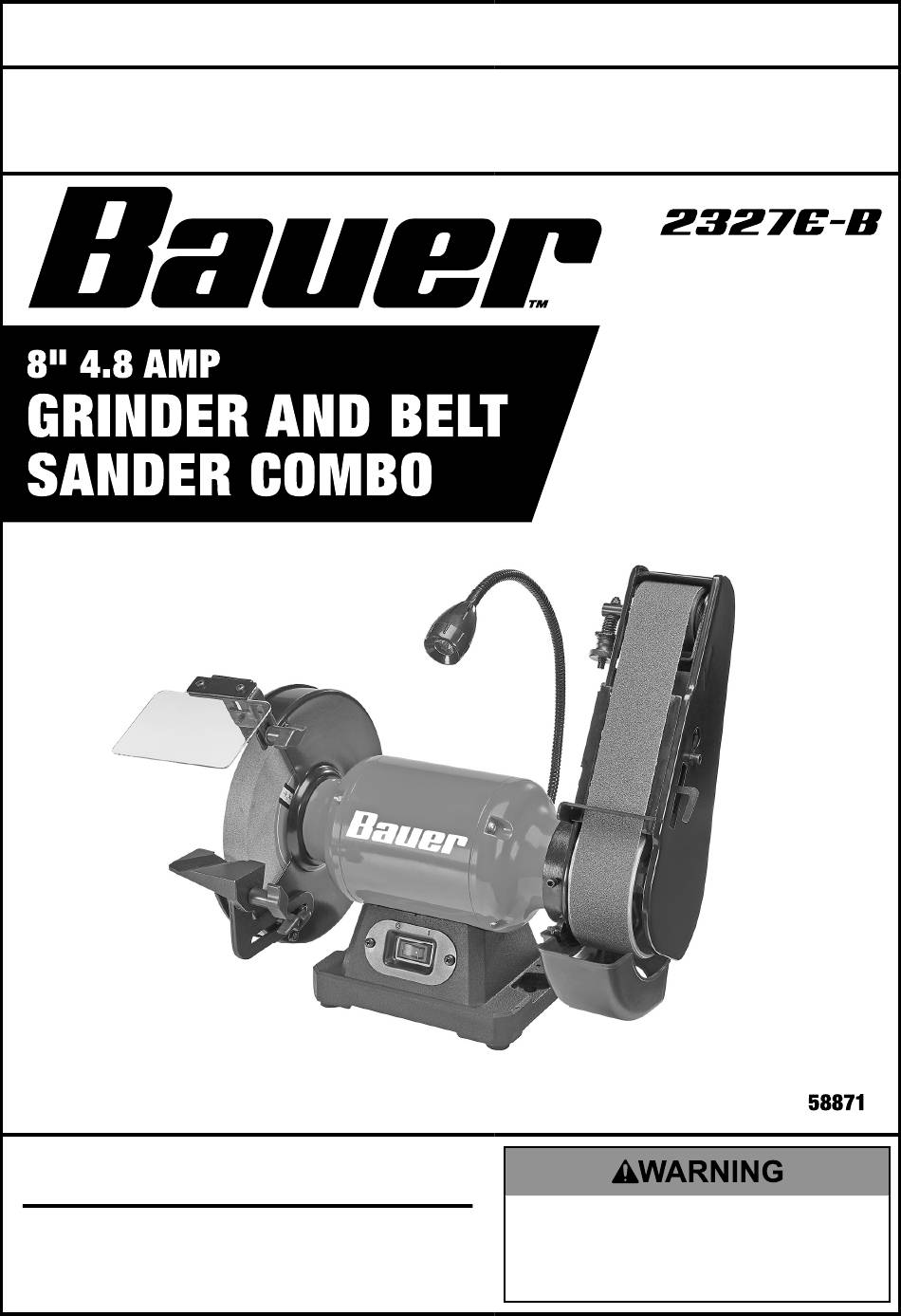

Bauer 2327E-B Owner's Manual & Safety Instructions

Bauer 2327E-B Owner's Manual & Safety Instructions

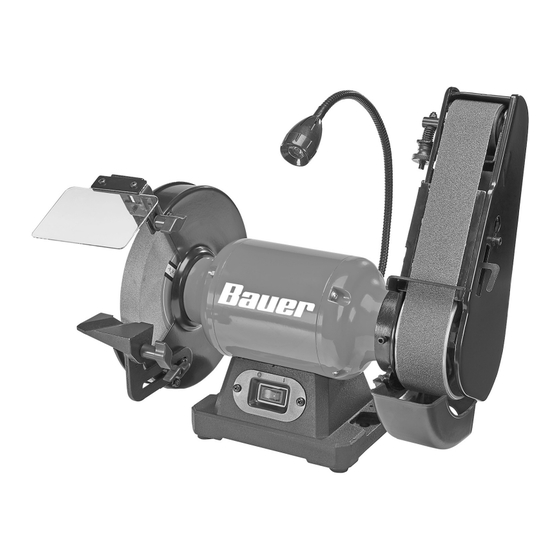

8" 4.8 amp grinder and belt sander combo
Hide thumbs Also See for 2327E-B:

Advertisement

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1‑888‑866‑5797 as soon as possible.
©
Copyright
2021 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
22l

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2327E-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bauer 2327E-B

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
  • Page 2: Table Of Contents

    table of contents Safety ................2 Maintenance .............12 Specifications ............7 Parts List and Diagram ..........14 Setup .................7 Warranty ..............16 Operation ..............9 WarninG SyMBOLS anD DeFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
  • Page 3: Safety

    c. Do not expose power tools to rain or wet i. Only use safety equipment that has been conditions. Water entering a power tool approved by an appropriate standards agency. will increase the risk of electric shock. Unapproved safety equipment may not provide adequate protection.
  • Page 4 d. Store idle power tools out of the reach of 7. Belt Sander safety warnings children and do not allow persons unfamiliar a. Wear eye protection. with the power tool or these instructions b. Support workpiece with miter gauge, to operate the power tool. Power tools are work stop, or worktable.
  • Page 5 Grounding tO preVent eLectric SHOcK anD DeatH FrOM incOrrect GrOunDinG Wire cOnnectiOn: check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the tool. never remove the grounding prong from the plug.
  • Page 6: Specifications

    extension cords 1. Grounded tools require a three wire extension cord. 7. Make sure the extension cord is properly wired Double Insulated tools can use either and in good electrical condition. Always replace a two or three wire extension cord. a damaged extension cord or have it repaired by a qualified electrician before using it.
  • Page 7: Setup

    Setup - Before use: read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: turn the power Switch of the tool off and unplug the tool from its electrical outlet before performing any procedure in this section.
  • Page 8 5. The Work Stop (84) fits across the top of the Sanding Belt Sanding Belt to prevent the workpiece from moving Support plate to the rear when sanding. M5  x   1 0 cap Screws  / Washers 6. Align two holes on the Work Stop with two Holes on the Sanding Belt Support Plate (75).
  • Page 9 Operating instructions read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. tool changing tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: turn the power Switch of the tool off and unplug the tool from its electrical outlet before performing any procedure in this section.
  • Page 10 7. For wheels with paper gaskets (blotters) or 8. Install the new grinding wheel and place the metal gaskets: Slip the grinding wheel onto the Outer Flange in position on the Spindle. Spindle with the gasket first. The gasket should be 9.
  • Page 11 Workpiece and Work area Set up 1. Designate a work area that is clean and well lit. 3. Secure loose workpieces using a vise or clamps The work area must not allow access by children (not included) to prevent movement while working. or pets to prevent distraction and injury.
  • Page 12: Maintenance

    Maintenance and Servicing instructions procedures not specifically explained in this manual must be performed only by a qualified technician. tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: Make sure that the power Switch is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section.
  • Page 13 5. Slide a new 2" x 28" Sanding Belt (sold separately) 7. Replace the Sanding Belt Cover and onto the front and rear Drums with the directional tighten the Cap Screw securely. arrows on the inside of the Belt pointing in the 8.
  • Page 14: Parts List And Diagram

    parts List and Diagram parts List part Description part Description Philips Screw M5  x   4 6 Nut with Flange M3 Wheel Guard Cover Plate Nut M16 Base Wheel Flange Power Cord Clamp Brown Corundum Grinding Wheel Philips Screw M3  x   1 0 Philips Screw ...
  • Page 15 assembly Diagram Item 58871 For technical questions, please call 1-888-866-5797. Page 15...
  • Page 16: Warranty

    pLeaSe reaD tHe FOLLOWinG careFuLLy THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
