Bauer 1816E-B Owner's Manual & Safety Instructions

Bauer 1816E-B Owner's Manual & Safety Instructions

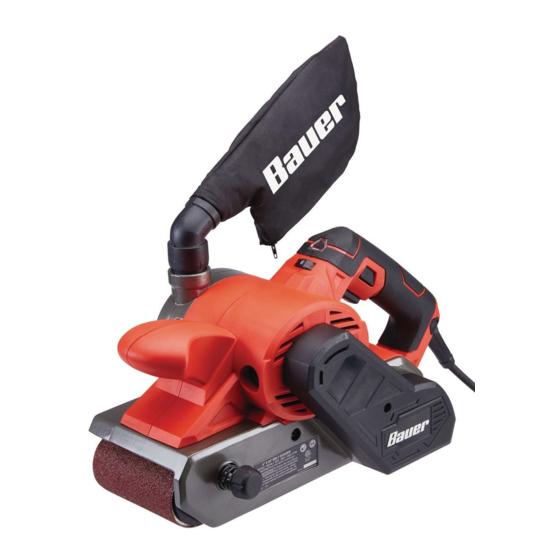

Heavy duty belt sander
Hide thumbs Also See for 1816E-B:

Advertisement

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
10 AMP 4" X 24"
HEAVY DUTY BELT SANDER
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2018 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
1816E-B
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
19c
64530

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1816E-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bauer 1816E-B

  • Page 1 (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. 1816E-B 10 AMP 4" X 24"...
  • Page 2: Table Of Contents

    table of contents Safety ............2 Maintenance ..........11 Specifications ..........8 Parts List and Diagram ......14 Setup ............9 Warranty ............ 16 Operation ........... 10 WarninG SyMBOLS anD DEFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
  • Page 3: Safety

    Electrical safety 1. power tool plugs must match the outlet. 4. Do not abuse the cord. never use the cord never modify the plug in any way. for carrying, pulling or unplugging the Do not use any adapter plugs with grounded power tool.
  • Page 4 7. use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Service Have your power tool serviced by a qualified repair person using only identical replacement parts.
  • Page 5 Vibration Safety This tool vibrates during use. 2. Do not smoke during use. Nicotine reduces Repeated or long-term exposure to vibration may the blood supply to the hands and fingers, cause temporary or permanent physical injury, increasing the risk of vibration-related injury. particularly to the hands, arms and shoulders.
  • Page 6 Grounding tO prEVEnt ELEctric SHOcK anD DEatH FrOM incOrrEct GrOunDinG WirE cOnnEctiOn: check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the tool. never remove the grounding prong from the plug.
  • Page 7 5. If you are using one extension cord for more taBLE a: rEcOMMEnDED MiniMuM WirE than one tool, add the nameplate amperes GauGE FOr EXtEnSiOn cOrDS* (120/240 VOLt) and use the sum to determine the required EXtEnSiOn cOrD naMEpLatE minimum cord size. (See table a.) LEnGtH aMpErES 6.
  • Page 8: Specifications

    Specifications Electrical Rating 120VAC / 60 Hz / 10 A Belt Speed 900 –1600 FPM Belt Size 4" W x 24" L Page 8 For technical questions, please call 1-888-866-5797. Item 64530...
  • Page 9: Setup

    Setup - Before use: read the EntirE iMpOrtant SaFEty inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. note: For additional information regarding the parts listed in the following pages, refer to Parts List and Diagram on page 14.
  • Page 10: Operation

    Operating instructions read the EntirE iMpOrtant SaFEty inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. tool Set up tO prEVEnt SEriOuS inJury FrOM acciDEntaL OpEratiOn: Make sure that the trigger is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section.
  • Page 11: Maintenance

    Maintenance and Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. tO prEVEnt SEriOuS inJury FrOM acciDEntaL OpEratiOn: Make sure that the trigger is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section.
  • Page 12 troubleshooting problem possible causes Likely Solutions Tool will not start. 1. Cord not connected. 1. Check that cord is plugged in. 2. No power at outlet. 2. Check power at outlet. If outlet is unpowered, turn off tool and check circuit breaker. If breaker is tripped, make sure circuit is right capacity for tool and circuit has no other loads.
  • Page 13 pLEaSE rEaD tHE FOLLOWinG carEFuLLy THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
  • Page 14: Parts List And Diagram

    parts List and Diagram parts List part Description part Description Screw St4.2 x 16 Bolt M6 Screw St4.2 x 40 Baffle Side Cover Rear Wheel Guide Wind Circle Needle Bearing HK1514 Screw St4.2 x 40 Bearing 6001 Spring Washer Ø5 Shoe Washer Ø5 Screw St4.2 x 55...
  • Page 15 assembly Diagram Item 64530 For technical questions, please call 1-888-866-5797. Page 15...
  • Page 16: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.

This manual is also suitable for:

64530
