t.a.c. MZ18L Manual page 3

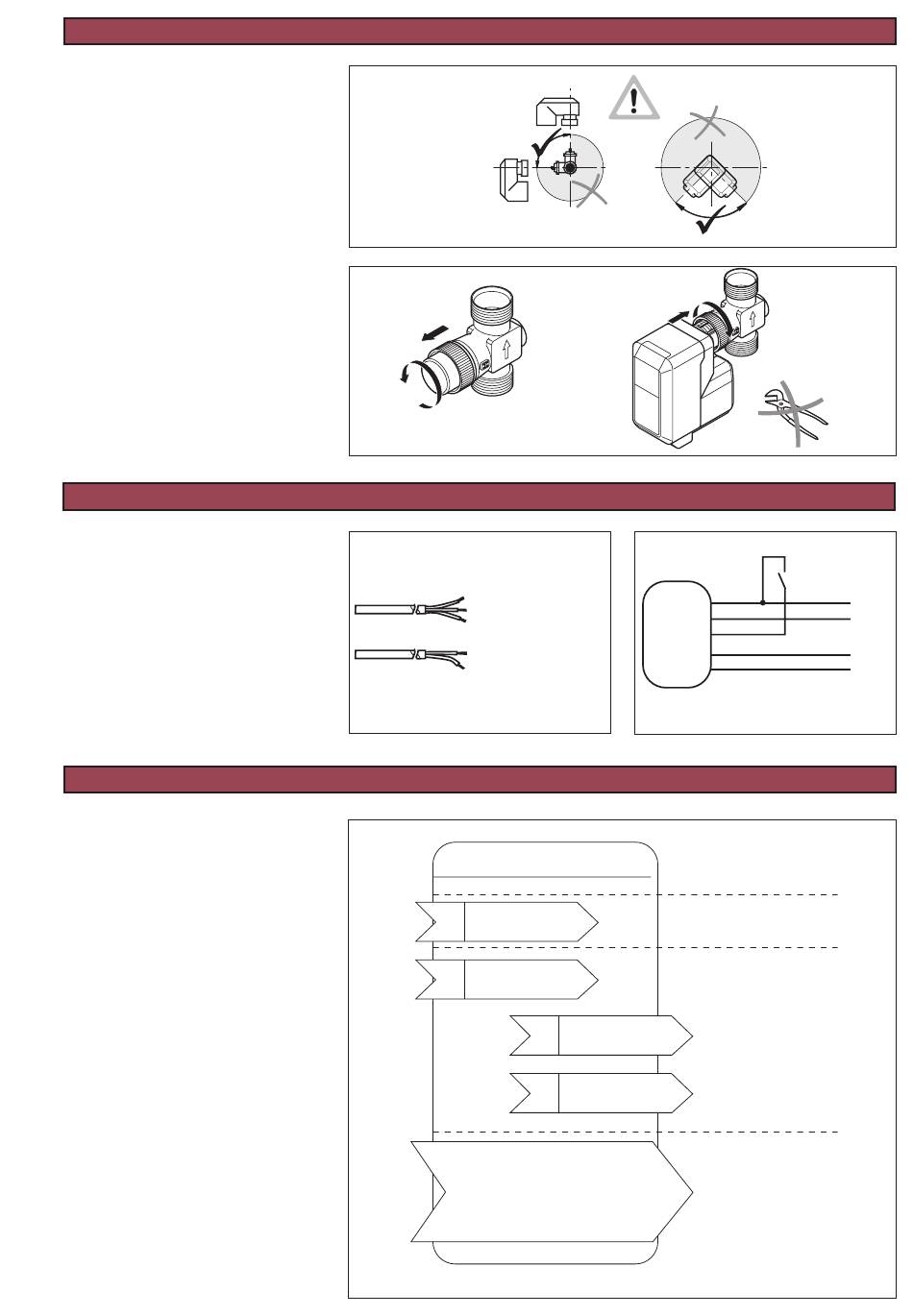

MOUNTING
The actuator may only be mounted
beside or above the valve. Adjust the
valve in the right position before
mounting the actuator. (Fig. 3)
Before the actuator is fixed to the valve,
the adjustment cap must be removed.
Make sure that the actuator is in the
open position (factory supplied position)
before fixing the actuator to the valve
body. (Fig. 4)
The actuator must be mounted by hand.
Don't use tools or additional forces,
because actuator and valve may be
damaged.
CONNECTIONS
The electrical installation must comply
with the wiring diagram shown in Fig. 5
and Fig. 6.
LONMARK NETWORK INTERFACE
The Actuator with LON Capabilities will
support the following subset of the
SNVT variables used for the
communication and binding. The
detailed specification of the network
variables will be found in the LonMark
Objects Summary.
Disc with external interface files (.xif) for
MZ18L/MZ09L ......... Art. no 0-008-5648
Power supply + DI Brown 24 V AC+
White 24 V AC-
Green DI+
LON
Black LON FTT10
White LON FTT10
Open Loop Actuator Object, Object Type 3
nviActPos
nv1
SNVT_lev_percent
nviManActPos
nv2
SNVT_lev_percent
Configuration Parameter
nciDefaultOutput
nciDIConfig
nciDirRev
nciRunTime
nciMaxRcvTime
3 (8)
(G)
(G0)
MZ18L
(C)
(C)
Fig. 5
Mandatory
Network Variables
Optional
Network Variables
nvoActPosFb
nv3
SNVT_lev_percent
nvoDISwitch
nv4
SNVT_switch
Optional
Configuration Properties
(SNVT_lev_percent)
(SNVT_lev_disc)
Reset the device
(SNVT_state)
after modifying
(SNVT_time_sec)
Configuration
(SNVT_time_sec)
Parameters
Fig. 3
Fig. 4
DI
Brown
24 VAC
White
Green
Black
LON
White
Fig. 6
Fig. 7
