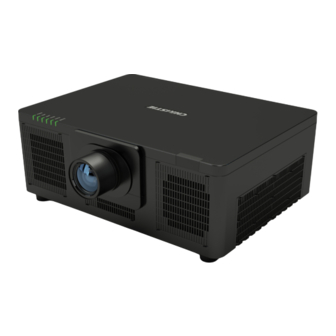

Christie DS Series User Manual

Hide thumbs Also See for DS Series:

Advertisement

Quick Links

Download this manual
User's Manual (detailed)
Operating Guide - Technical
020-001894-01
DS Series
LWU1200-DS

Advertisement

loading

Related Manuals for Christie DS Series

Summary of Contents for Christie DS Series

  • Page 1 User’s Manual (detailed) Operating Guide - Technical 020-001894-01 DS Series LWU1200-DS...

  • Page 3: Lcd Projector

    LCD Projector LWU1200-DS User's Manual (detailed) Operating Guide – Technical Supported signals for COMPUTER IN Resolution (H x V) Signal mode H. frequency V. frequency Rating FRAME LOCK (kHz) (Hz) 720 x 400 TEXT 37.9 VESA ○ 640 x 480 VGA (60Hz) 31.5 59.9...
  • Page 4 Supported signals Supported signals for HDMI1 Resolution Signal mode H. frequency V. frequency Rating FRAME LOCK (H x V) (kHz) (Hz) 720 x 400 TEXT 37.9 VESA ○ 640 x 480 VGA (60Hz) 31.5 59.9 VESA VGA (72Hz) 37.9 72.8 VESA VGA (75Hz) 37.5...
  • Page 5 Supported signals Supported signals for HDMI1 Resolution (H x V) Signal mode H. frequency V. frequency Rating FRAME LOCK (kHz) (Hz) ○ 720(1440) x 480i 480i 15.7 ○ 720(1440) x 576i 576i 15.6 ○ 720 x 480p 480p 31.5 ○ 720 x 576p 576p 31.3...
  • Page 6 Supported signals Supported signals for HDMI2 Resolution (H x V) Signal mode H. frequency V. frequency Rating FRAME LOCK (kHz) (Hz) 720 x 400 TEXT 37.9 VESA ○ 640 x 480 VGA (60Hz) 31.5 59.9 VESA VGA (72Hz) 37.9 72.8 VESA VGA (75Hz) 37.5...
  • Page 7 Supported signals Supported signals for HDMI2 Resolution (H x V) Signal mode H. frequency V. frequency Rating FRAME LOCK (kHz) (Hz) ○ 720(1440) x 480i 480i 15.7 ○ 720(1440) x 576i 576i 15.6 ○ 720 x 480p 480p 31.5 ○ 720 x 576p 576p 31.3...
  • Page 8 Supported signals Supported signals for HDBaseT Resolution (H x V) Signal mode H. frequency V. frequency Rating FRAME LOCK (kHz) (Hz) 720 x 400 TEXT 37.9 VESA ○ 640 x 480 VGA (60Hz) 31.5 59.9 VESA VGA (72Hz) 37.9 72.8 VESA VGA (75Hz) 37.5...
  • Page 9 Supported signals Supported signals for HDBaseT Resolution (H x V) Signal mode H. frequency V. frequency Rating FRAME LOCK (kHz) (Hz) ○ 720(1440) x 480i 480i 15.7 ○ 720(1440) x 576i 576i 15.6 ○ 720 x 480p 480p 31.5 ○ 720 x 576p 576p 31.3...
  • Page 10 Supported signals Supported signals for DisplayPort Resolution (H x V) Signal mode H. frequency V. frequency Rating FRAME LOCK (kHz) (Hz) 720 x 400 TEXT 37.9 VESA ○ 640 x 480 VGA (60Hz) 31.5 59.9 VESA VGA (72Hz) 37.9 72.8 VESA VGA (75Hz) 37.5...
  • Page 11 Supported signals Supported signals for DisplayPort Resolution (H x V) Signal mode H. frequency V. frequency Rating FRAME LOCK (kHz) (Hz) ○ 720 x 480p 480p 31.5 ○ 720 x 576p 576p 31.3 ○ 1280 x 720p 720p (50Hz) 37.5 ○...
  • Page 12 Supported signals Supported signals for SDI Resolution (H x V) Signal mode H. frequency V. frequency Rating FRAME LOCK (kHz) (Hz) ○ 720 x 480i 480i 15.7 SMPTE ○ 720 x 576i 576i 15.6 SMPTE ○ 1280 x 720p 720p (50Hz) 37.5 SMPTE ○...

  • Page 13: Monitor Out

    Connection to the ports Connection to the ports NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed. ►Only the signal that is input from the COMPUTER IN can be output from the MONITOR OUT port.
  • Page 14 Connection to the ports HDBaseT RJ-45 jack ② ④ ⑥ ⑧ ⑧ ⑥ ④ ② ① ③ ⑤ ⑦ ⑦ ⑤ ③ ① Signal Signal Signal HDBaseT0+ HDBaseT2+ HDBaseT3+ HDBaseT0- HDBaseT2- HDBaseT3- HDBaseT1+ HDBaseT1- HDMI 1, HDMI 2, HDMI OUT ②...
  • Page 15 Connection to the ports DisplayPort ⑩ ⑫ ⑭ ⑯ ⑱ ❷ ❹ ❻ DisplayPort connector ⑨⑪ ⑬ ⑮ ⑰ ⑲ ❶ ❸ ❺ Signal Signal Signal Main Link Lane 3 - 15 AUX CH + Main Link Lane 1 + 16 GND Main Link Lane 3 + 10 Main Link Lane 0 -...

  • Page 16: Audio Out

    Connection to the ports AUDIO IN1 Ø3.5 stereo mini jack • Analog, 47kΩ input impedance AUDIO IN2 RCA jack x2 • Analog, 47kΩ input impedance AUDIO OUT Ø3.5 stereo mini jack • Analog, 1kΩ output impedance CONTROL ① ② ③ ④...
  • Page 17 Connection to the ports RJ-45 jack ⑧ ⑥ ④ ② ② ④ ⑥ ⑧ ① ③ ⑤ ⑦ ⑦ ⑤ ③ ① * About the details of network communication, please refer to the Network Guide. Signal Signal Signal WIRELESS PORT ④...
  • Page 18 Connection to the ports 3G-SDI BNC jack • SD/HD/3G-SDI signal, Digital, 0.8V±10%, 75Ω terminated • S ystem: SD-SDI signal: conforming to SMPTE ST 259-C standard YCBCR 4:2:2 10-bit 480i, 576i Single link HD-SDI signal: conforming to SMPTE ST 292 standard YPBPR 4:2:2 10-bit 720p@50/60, 1080i@50/60, 1080sf@25/30 3G-SDI Level-A signal: conforming to SMPTE ST 424 standard...
  • Page 19 RS-232C Communication RS-232C Communication When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication / Network command table (&26). Connection Turn off the projector and the computer.

  • Page 20: Command Format

    RS-232C Communication Communication settings 1. Protocol 19200bps , 8N1 (default) (& OPTION menu - SERVICE - COMMUNICATION in the Operating Guide) 2. Command format ("h" shows hexadecimal) Byte Number Command Header Data Header Data Setting Action Type flag code size code Packet Action...
  • Page 21 RS-232C Communication 3. Response code / Error code ("h" shows hexadecimal) (1) ACK reply: 06h When the projector receives the Set, Increment, Decrement or Execute command correctly, the projector changes the setting data for the specified item by [Type], and it returns the code. (2) NAK reply: 15h When the projector cannot understand the received command, the projector returns the error code.
  • Page 22 Command Control via the Network Command Control via the Network When the projector connects network, the projector can be controlled with RS-232C commands from the computer with web browser. For details of RS-232C commands, refer to RS-232C Communication / Network command table (&26).

  • Page 23: Communication Port

    Command Control via the Network Communication Port The following two ports are assigned for the command control. TCP #23 TCP #9715 Configure the following items from a web browser when command control is used. Port Settings Click the [Enable] checkbox to open [Network Port open Control Port1 (Port: 23)] to use TCP #23.

  • Page 24: Command Control Settings

    Command Control via the Network Command control settings [TCP #23] 1. Command format Same as RS-232C communication, refer to RS-232C Communication command format. 2. Response code / Error code ("h" shows hexadecimal) Four of the response / error code used for TCP#23 are the same as RS-232C Communication (1)~(4).
  • Page 25 Command Control via the Network 2. Response code / Error code ("h" shows hexadecimal) The connection ID is attached for the TCP#23's response / error codes are used. The connection ID is same as the sending command format. (1) ACK reply: 06h + ××h (××h : connection ID) (2) NAK reply: 15h + ××h (3) Error reply: 1Ch + 0000h + ××h...
  • Page 26 Network Bridge Communication Network Bridge Communication This projector is equipped with NETWORK BRIDGE function. When the projector connects to the computer by wired or wireless LAN communication, an external device connected with this projector by RS-232C communication can be controlled from the computer as a network terminal. For details, see the 7.

  • Page 27: Communication Settings

    Network Bridge Communication Communication settings For communication setting, use the COMMUNICATION menu in the OPTION - SERVICE menu Item Condition BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps 8 bit (fixed) Data length PARITY NONE/ODD/EVEN 1 bit (fixed) Start bit 1 bit (fixed) Stop bit Transmission method...
  • Page 28 RS-232C Communication / Network command table RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code Turn off BE EF 06 00 2A D3 01 00 00 60 00 00 Turn on BE EF 06 00 BA D2 01 00...
  • Page 29 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code LENS MEMORY BE EF 06 00 A0 91 02 00 0D 24 00 00 LENS SHIFT - V LENS MEMORY BE EF 06 00 E4 91 02 00 0E 24...
  • Page 30 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code TOP LEFT BE EF 06 00 02 23 01 00 01 23 00 00 TOP RIGHT BE EF 06 00 92 22 01 00 01 23 01 00 BOTTOM LEFT...
  • Page 31 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 89 D2 02 00 03 20 00 00 Increment BE EF 06 00 EF D2 04 00 03 20 00 00 BRIGHTNESS Decrement BE EF...

  • Page 32: Color Temp

    RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 4C FE 02 00 93 30 00 00 User GAMMA Increment BE EF 06 00 2A FE 04 00 93 30 00 00 Point 4 Decrement...
  • Page 33 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 34 F4 02 00 B1 30 00 00 COLOR TEMP Increment BE EF 06 00 52 F4 04 00 B1 30 00 00 GAIN R Decrement...
  • Page 34 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 49 73 02 00 03 22 00 00 Increment BE EF 06 00 2F 73 04 00 03 22 00 00 TINT Decrement BE EF...
  • Page 35 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 0C 63 02 00 00 27 00 00 Advanced Color Increment BE EF 06 00 6A 63 04 00 00 27 00 00 Adjustment HUE R...
  • Page 36 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 30 66 02 00 11 27 00 00 Advanced Color Increment BE EF 06 00 56 66 04 00 11 27 00 00 Adjustment SATURATION Y...
  • Page 37 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 88 68 02 00 23 27 00 00 Advanced Color Increment BE EF 06 00 EE 68 04 00 23 27 00 00 Adjustment LUMINANCE C...
  • Page 38 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 F1 82 02 00 01 21 00 00 Increment BE EF 06 00 97 82 04 00 01 21 00 00 H POSITION Decrement BE EF...
  • Page 39 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code 2K COMPATIBLE BE EF 06 00 02 3D 01 00 61 23 00 00 DIGITAL SIGNAL 4K STANDARD BE EF 06 00 92 3C 01 00 61 23 01 00...
  • Page 40 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 C2 E4 01 00 E1 20 00 00 FRAME LOCK - BE EF 06 00 52 E5 01 00 E1 20 01 00 3G-SDI BE EF...
  • Page 41 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 01 88 02 00 25 21 00 00 3D KEYSTONE Increment BE EF 06 00 67 88 04 00 25 21 00 00 Left Bottom - H Decrement...
  • Page 42 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 6B 94 01 00 4C 31 00 00 EDGE MANUAL BE EF 06 00 FB 95 01 00 4C 31 01 00 BLENDING CAMERA...
  • Page 43 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 FB 93 01 00 50 31 00 00 CROPPING BE EF 06 00 6B 92 01 00 50 31 01 00 MODE BE EF 06 00...
  • Page 44 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 3C 73 02 00 54 27 00 00 WHITE Increment BE EF 06 00 5A 73 04 00 54 27 00 00 BALANCE GAIN Decrement...

  • Page 45: Installation

    RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code NORMAL BE EF 06 00 3B 37 01 00 00 33 30 00 QUIET MODE BE EF 06 00 AB 22 01 00 00 33 01 00 LIGHT LIGHT 75%...
  • Page 46 RS-232C Communication / Network command table RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 48 6C 02 00 33 27 00 00 COLOR Increment BE EF 06 00 2E 6C 04 00 33 27...
  • Page 47 RS-232C Communication / Network command table RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 46 D3 01 00 02 20 00 00 BE EF 06 00 D6 D2 01 00 02 20 01 00...
  • Page 48 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code AUDIO IN1 BE EF 06 00 92 DD 01 00 31 20 01 00 AUDIO AUDIO IN2 BE EF 06 00 62 DD 01 00 31 20 02 00 SOURCE -...
  • Page 49 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 40 D7 02 00 16 30 00 00 MENU Increment BE EF 06 00 26 D7 04 00 16 30 00 00 POSITION V Decrement...
  • Page 50 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 3B EF 01 00 C0 30 00 00 My Screen Lock BE EF 06 00 AB EE 01 00 C0 30 01 00 BE EF 06 00...
  • Page 51 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code NORMAL BE EF 06 00 02 79 01 00 21 22 00 00 SEARCH SKIP - SKIP BE EF 06 00 92 78 01 00 21 22 01 00 VIDEO...
  • Page 52 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code MY IMAGE BE EF 06 00 5A 3D 01 00 00 36 16 00 MESSENGER BE EF 06 00 AA 29 01 00 00 36 25 00 SHUTTER BE EF...
  • Page 53 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code MY IMAGE BE EF 06 00 E2 3C 01 00 02 36 16 00 MESSENGER BE EF 06 00 12 28 01 00 02 36 25 00 SHUTTER BE EF...
  • Page 54 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 FF 32 01 00 00 26 00 00 REMOTE BE EF 06 00 6F 33 01 00 00 26 01 00 RECEIV.
  • Page 55 RS-232C Communication / Network command table Command Data Names Operation Type Header Action Type Setting code BE EF 06 00 33 BD 01 00 60 1B 00 00 EXTRON for BE EF 06 00 A3 BC 01 00 60 1B 01 00 HDBaseT BE EF...
  • Page 56 PJLink command PJLink command Commands Control Description Parameter or Response 0 = Standby POWR Power Control 1 = Power On 0 = Standby 1 = Power On POWR ? Power Status inquiry 2 = Cool Down 11 = COMPUTER IN 23 = VIDEO 31 = HDMI 1 33 = HDMI 2...
  • Page 57 Responds with the name set in the item NAME ? Projector Name inquiry PROJECTOR NAME of the NETWORK menu Manufacturer's Name INF1 ? CHRISTIE inquiry LWU1200-DS INF2 ? Model Name inquiry INFO ? Other Information inquiry Returns an empty string.
  • Page 58 PJLink command Commands Control Description Parameter or Response SNUM ? Serial number query Responds with the serial number information SVER ? Software version query Responds with the software version information INNM ? Input terminal name query Responds with the Input terminal name Responds with the resolution information of IRES ? Input resolution query...
  • Page 59 Corporate offices Worldwide offices Christie Digital Systems USA, Inc. Africa Columbia Mexico United States (Arizona) ph: 714 236 8610 Ph: +52 55 4744 1790 ph: 602 943 5700 ph: +27 (0)11 510 0094 ph: +57 (318) 447 3179 Christie Digital Systems Canada Inc.
