Summary of Contents for Loewe Art 60

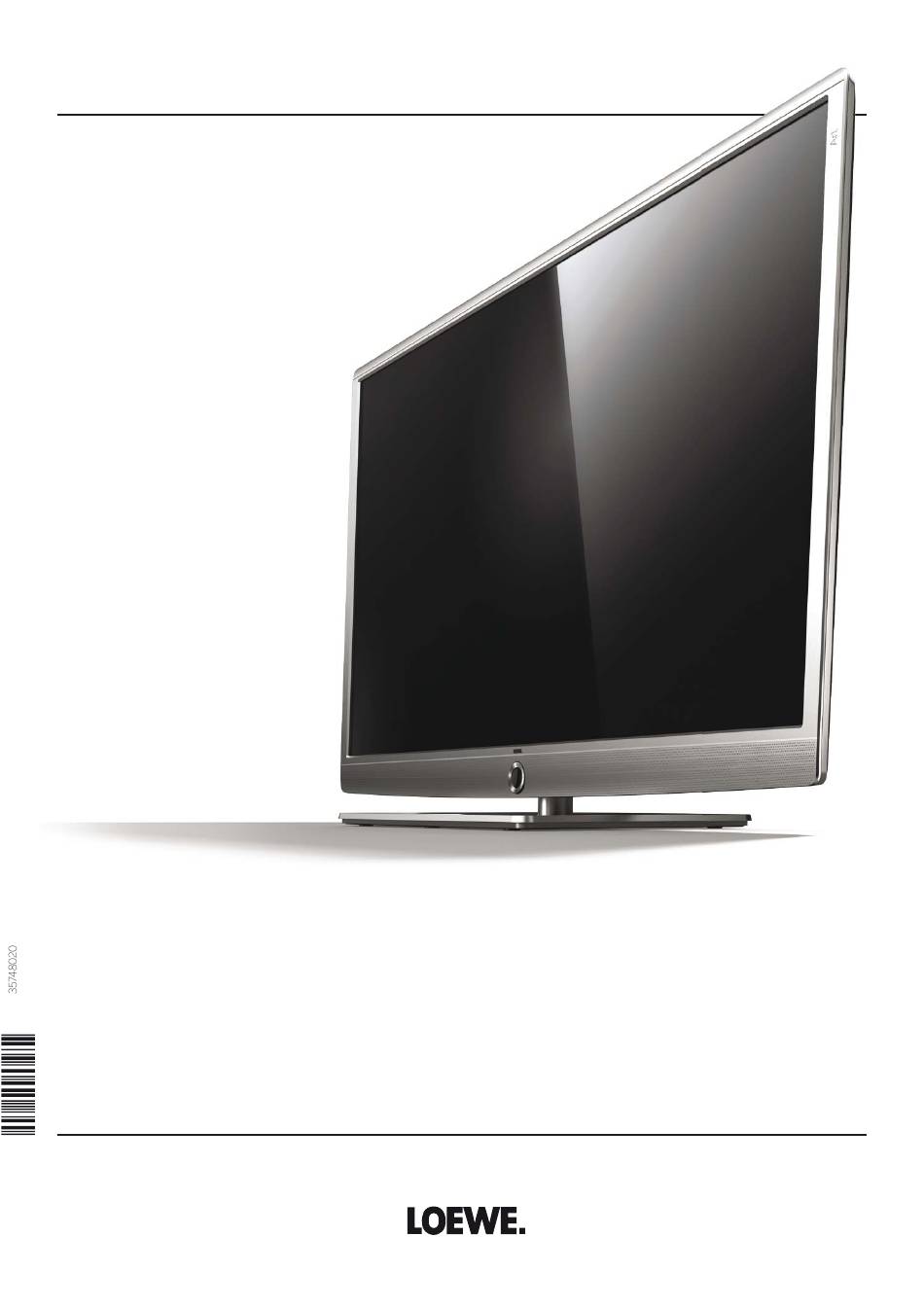

  • Page 1 Art 60 Art 50 Art 40 User guide...

  • Page 2: Imprint

    Art 40-60 User guide Imprint Imprint Loewe Technologies GmbH Printed in Germany Industriestraße 11 Editorial date 05/14-1.0c TB D-96317 Kronach © Loewe Technologies GmbH, Kronach www.loewe.de ID: 10.2.3.18 All rights including translation, technical modifications and errors reserved.

  • Page 3: Table Of Contents

    Art 40-60 User guide Table of contents Imprint ...................2 Audio/Radio ................60 Audio playback ....................61 Welcome ..................5 Radio mode (DVB radio) ................64 Scope of delivery ..................5 Radio mode (Internet radio) ..............65 About this user guide ................... 5 Photo ..................66 For your safety ................6 Photo display ....................
  • Page 4 Connecting the Audio system ..............122 Connecting the HiFi/AV amplifier ............122 Audio playback from external devices ........... 123 Serial interface RS-232C (RJ12) ............. 123 Operating Loewe units ................124 Teaching the remote control ..........125 Loewe Apps ....................126 Loewe Apps ................127 Troubleshooting ...............129...

  • Page 5: Welcome

    The glossary gives explanations of certain terms used in the TV set In addition to sleek design and a varied combination of colour and and the user guide. mounting choices, your Loewe TV set offers a host of technological options. Paragraphs which begin with the symbol indicate important instruc- tions, tips or conditions for the following settings.

  • Page 6: For Your Safety

    Always wear rubber gloves to carry the TV set if the LCD screen is Please use the Loewe 3D TV sets only with the Loewe 3D glasses damaged and liquid crystal might be leaking out. In the case of skin which can be purchased as an accessory from your Loewe dealer contact immediately rinse thoroughly with water.
  • Page 7 For your safety Set-up Thunder storms Loewe Flat TV sets are specified for Loewe accessories. The TV set is Pull out the mains plug and all connected antenna cables from the suitable for different mounting options. Note the assembly instructions TV set in a thunderstorm.

  • Page 8: Basic Functions

    Last selected station in DVB radio mode The assignment of these keys can be changed (see chapter External devices, section Operating Loewe units). The assignment of these keys can be changed (see chapter System settings, section Control – Web key function).

  • Page 9: Remote Control

    The assignment of these keys can be changed (see chapter External devices, section Operating Loewe units). The assignment of these keys can be changed (see chapter System settings, section Control – Web key function).

  • Page 10: Operating Controls On The Tv Set

    (EPG data updating, software update) Infrared transmitter: When showing 3D content, the 3D glasses Loewe Active Glasses 3D are controlled via the infrared sensor. Key M: TV set in standby mode: switch TV set on in TV mode...

  • Page 11: Connections Rear Side Of The Device

    Art 40-60 User guide Connections rear side of the device LAN - Network connection RS-232C - Serial interface PC IN - Mini AV socket CI-COMMON INTERFACE - Common Interface (CI slot) - Headphone connection HDMI 1 - HDMI input 1 (with HDMI ARC support) HDMI 4 - HDMI input 4 HDMI 2 - HDMI input 2 AV - Mini AV socket...

  • Page 12: Preparing The Tv Set

    Connecting the TV set Mounting options Connecting to the mains supply Your Loewe specialist dealer can assist you in finding other mounting Remove the cover for the connections. options that correspond to your needs. Use exclusively Loewe mount- Connect the TV set to a 220-240V mains socket: ing options (e.g., wall bracket, floor stand), which you will find in the...
  • Page 13 Art 40-60 User guide Preparing the TV set Connecting the TV set to the Home network Lay network cable to rear panel You may link your TV set to the home network by a wired connection Lay the network cable connected to the LAN socket on the TV set into (Ethernet, Powerline) or by a wireless radio connection (WLAN).

  • Page 14: Bundling The Cables

    Push the cover back on from below after having inserted the batteries. Adjusting the remote control for operating the TV set Press the TV key. See in chapter External devices,section Operating Loewe units how to operate other Loewe appliances and how to re-programme the remote control keys.

  • Page 15: Switching The Tv Set On/Off

    Hard disks. After switching on the TV set, it takes a few seconds for further Loewe is not liable for data being lost from USB hard disks. operating commands to be processed (Exception: Quick start mode, see chapter System settings, section Control – Quick start mode).

  • Page 16: General Information On Menu Operation

    Art 40-60 User guide General information on menu operation General information on menu operation Structure of the Menu screen Basically, the structure of the different menu screens is similar, de- Some keys of the remote control for operating the TV set you will use pending on the fact if a wizard, rendering media content or a setup more often than others.
  • Page 17 Art 40-60 User guide General information on menu operation Screen structure: Setup (example: picture) Navigation: Wizards If your desired display format has not been automatically Picture selected then you can choose it in the 3D settings menu. You may display the 3D image in 2D or vice versa. DVB-S settings (ASTRA1 19,2°E) Picture ad- justment...
  • Page 18 A B C 2 Ä Æ Ã Å Ā À Á Ć Ç Č - a b c 2 ä æ ã å ā â à á ć ç č http://www.loewe.de D E F 3 Ė Ë Ē Ę Ê È É - d e f 3 ė ë ē ę ê è é...

  • Page 19: Info Display

    Art 40-60 User guide General information on menu operation Info display Operation without remote control The info display provides an info text appropriate to the on-screen Changing Volume display that can assist you further with the operation of your TV set. + / –...

  • Page 20: Initial Installation

    Art 40-60 User guide Initial installation Initial installation wizard Energy Home mode: efficiency The emphasis for home use is on low energy consump- (continued) Initial installation after switching on for the first time tion. The automatic dimmer is activated. The Initial installation wizard starts automatically with an initial instal- Premium mode: lation.
  • Page 21 Art 40-60 User guide Initial installation Selecting Setting options for reception via analogue cable: antennas If you have not selected Cable analog in the list of available antennas: Connect antenna cable(s) Your television will automatically search for stations. With , highlight which antenna Proceed to Setting options for DVB-T reception.
  • Page 22 Art 40-60 User guide Initial installation Setting options for DVB-T reception: Scrambled You can state whether coded stations are to be If you have not selected DVB-T antenna in the list of available antennas: stations searched for in the search/update. Select Proceed to Setting options for DVB-C reception.
  • Page 23 Art 40-60 User guide Initial installation Setting options for DVB-C reception: Scrambled You can state whether coded stations are to be If you have not selected DVB-C antenna in the list of available antennas: stations searched for in the search/update. Select Proceed to Setting options for DVB-S reception.
  • Page 24 Art 40-60 User guide Initial installation Setting options for DVB-S reception: Single Reception of a single satellite via a connected LNC If you have not selected DVB-S antenna in the list of available anten- satellite (LNB). nas: Proceed to Setting options for all types of reception. 2 satellites Reception of two different satellites with two LNCs Network...
  • Page 25 Art 40-60 User guide Initial installation Setting options for the satellite system (single satellite): Setting options for the satellite system (2 satellites on 22 kHz switchbox / 2 satellites on toneburst switch): Select single satellite Satellite Select satellites selection Select satellites Please specify here which satellite you receive.
  • Page 26 Art 40-60 User guide Initial installation Setting options for the satellite system LNB frequencies frequencies (max. 4 satellites on DiSEqC multiswitch): Please select the LNB frequencies for both High and Low Bands. Note: The newly selected parameter in each case must be confirmed with the button.
  • Page 27 Art 40-60 User guide Initial installation Setting options for the satellite system frequencies (DiSEqC one cable communal system): Number of LNB frequencies system channel used ASTRA1 19,2°E low Band 9750 MHz 10000 MHz 10200 MHz 10600 MHz ASTRA1 19,2°E high Band 10600 MHz 10750 MHz 11000 MHz...
  • Page 28 Art 40-60 User guide Initial installation Setting options for the satellite system (other communal installation): Select single satellite Select satellites Please specify here which satellite you receive. Note: The newly selected parameter must be confirmed with the button. Optus D1160°E ASTRA1 19,2°E Eutelsat 5 West A 5°W Türksat 42°E...
  • Page 29 Art 40-60 User guide Initial installation Setting options for DVB-S reception (continued): Test reception You should now receive a picture and sound from the following satellite: Astra1 19,2°E Level Otherwise, please adjust your antenna. If it is already correctly adjusted, please continue all the same, without receiving picture or sound for the moment.
  • Page 30 Art 40-60 User guide Initial installation Age-related Setting options for all types of reception: lock Subtitle and Subtitle and audio languages (DVB) audio You can preset the desired languages and reserve languages for subtitles and audio for Age-related lock DVB programmes here. languages If you enter an age restriction here, all DVB programmers are locked which have an appropriate age code and can only be watched by entering the access code.

  • Page 31: Tv Set As A Monitor

    Art 40-60 User guide Initial installation Inform about Sound playback new software must be connected with the audio output sockets AUDIO DIGITAL OUT. via ... Software-Update be selected. You have the option of performing a software update via the Internet. Please specify whether the TV set is to automatically inform you about newly available software.

  • Page 32: Home View

    ProSieben kabel eins arte HD Extras Web: Here you have access to multimedia content in the Internet (MediaNet) as well as a high- Loewe channel Maxdome Napster Aupeo quality web browser. System settings See chapter Web for further information.. Select menu item / favourite, OK call.

  • Page 33: Home - Favourites

    ProSieben ProSieben ProSieben ProSieben ProSieben ProSieben kabel eins kabel eins kabel eins arte HD arte HD arte HD Extras Loewe channel Loewe channel Loewe channel Maxdome Maxdome Maxdome Napster Napster Napster Aupeo Aupeo Aupeo System settings Move favourite or delete it (see below).

  • Page 34: Setting The Volume

    Art 40-60 User guide Volume / Station Selecting a station out of the station list In normal TV mode, without other displays: In TV mode that can be selected via the Home view, you can use the basic TV functions of your TV set. In TV mode you will have numerous OK call station list.
  • Page 35 Art 40-60 User guide Station Selecting stations by means of the expanded station list Selecting stations by personal lists You can save your preferred stations in up to six personal lists (e.g., In normal TV mode, without other displays: for several users). Each personal list can contain up to 99 stations. Press OK longer: Call expanded station list.

  • Page 36: Status Display

    Art 40-60 User guide Status display Status display Explanations of the symbols in the status display (cont'd): Transmitted audio signal: In normal TV mode, without other displays. Mono Mono audio transmission analogue INFO: Show status display. Dual Dual channel sound transmission (Sound1/Sound2) channel analogue ZDF HD...

  • Page 37: Function List

    Art 40-60 User guide Function list / AV list Function list Explanations of the symbols in the function list (continued): Add current station as Favourite to Home view. The function list contains settings and additional options. The indi- vidual list items will be briefly explained as follows: Changes the Sorting between numerically and alphabe- The function list can be opened directly in TV mode or via the station tically.

  • Page 38: Electronic Programme Guide - Epg

    Art 40-60 User guide Electronic Programme Guide Electronic Programme Guide – EPG Meaning of the colours in the EPG The coloured labels indicate the genre of the respective programme. EPG stands for Electronic Programme Guide and provides you with When filtering with genre selection in the header, the programmes of on-screen programme details.
  • Page 39 Art 40-60 User guide Electronic Programme Guide Programme preview Calling additional information about the programmes Mark desired station in the station list. INFO: Call up detailed information. OK press long: show preview. Detailed info Back In the top left window, the current programme of the 5 ProSieben 16:45 07.01.14 selected station is displayed now.
  • Page 40 Art 40-60 User guide Electronic Programme Guide Timer programming by means of EPG Adapting the EPG Overview You can programme timer recordings of TV programmes conveniently The options to be selected are in the header, using the EPG. if not, press MENU key. Mark the desired broadcast.

  • Page 41: Teletext

    Art 40-60 User guide Teletext Teletext Additional page selection possibilities Your TV set supports the two operating systems TOP text and FLOF. First possibility: Up to 1,000 / 2,000 pages are stored so that you have quick access. INFO: Call overview page 100. Starting and ending Teletext Second possibility: Directly enter the page number.
  • Page 42 Art 40-60 User guide Teletext Newsflash Some text pages, e.g., live tickers, will be permanently updated. In order to keep track of changes and also to be able to watch the TV programme at the same time you may hide the Teletext temporarily and can still remain informed on updates of the page.

  • Page 43: Hbbtv / Mediatext

    Under certain circumstances, the recording and bookmarking functions of the applications may not be supported. Loewe do not guarantee the accessibility, functionality or content of HbbTV applications. Hide / Close HbbTV application BACK: Hide / Close HbbTV application.

  • Page 44: Digital Recorder

    Digital-Recorder – Overview of functions You can use the Digital Recorder of your Loewe TV set to record programmes on an external hard disk connected via USB (USB recording). USB recording is only possible for TV set without integrated hard disk.

  • Page 45: Archive Recording

    Art 40-60 User guide Digital Recorder Archive recording Time shift viewing during archive recording Whilst an archive recording is taking place you can watch the pro- Films that you wish to watch at a later date can be recorded in the gramme that is just being recorded in the archive using time delay.
  • Page 46 Art 40-60 User guide Digital Recorder Switching off the TV set during recording You can switch off the TV to standby whilst recording. The recording is continued in the standby mode. Never switch the TV set off at the mains and do not pull out the plug of the TV set out of the socket.

  • Page 47: Dr+ Archive

    Art 40-60 User guide Digital Recorder DR+ archive DR+ archive function list The function list of the DR+ archive contains the individual function With the DR+ archive you have access to all the recorded programmes for its archive entries. and start playback. Mark the recorded broadcast.
  • Page 48 Art 40-60 User guide Digital Recorder Displaying detailed information on the recording Deleting recordings from the archive If detailed information exists on the recorded broadcast from the EPG, The desired entry in the DR+ archive is marked. you can deplay it. STOP key: Call delete dialogue.
  • Page 49 The TV set must not be switched off with the mains switch during an external USB hard disk. the copying process! Delete the recordings from the Digital Recorder after copying. Loewe are not liable for data loss from the Digital Recorder’s hard disk.

  • Page 50: Dr + Streaming

    You can use your TV set to view DR+ archive entries via the network instance. Playback is then only possible after entering a PIN. provided by „another“ Loewe TV set with an integrated hard disk on the network. In order to activate the Parental lock, a code num-...

  • Page 51: Media

    TV set has an internal WLAN antenna. Video: see chapter Video. Your Loewe TV set supports the UPnP AV standard for data playback in the home network. You can find more detailed information on this Audio/Radio: see chapter Audio/Radio.

  • Page 52: Video

    Art 40-60 User guide Video Video Video Function list The video function list contains the individual functions for your videos. The item Video gives you access to videos from local (USB, home network) and online sources. The individual subitems are described MENU: Open function list.

  • Page 53: Video Playback

    Art 40-60 User guide Video Video playback Symbol Remote Description control key General information on video playback only for playback from DR+ archive: long The description of the following functions applies to the playback of Delete bookmark manually. videos from the DR+ archive as well as for videos from USB storage The function is only available when media or from media servers in the home network.
  • Page 54 Art 40-60 User guide Video Pause playback (freeze picture) Skipping with Smart jump The Smart jump function ensures that the jump width is halved each PAUSE key: Switch to freeze picture. time the jump direction is changed or doubled after three jumps in Back DR+ archive: ZDFinfo HD 17:05 - 17:50 Flora und Fauna the same direction (max.
  • Page 55 Art 40-60 User guide Video Wind Repeat To search for desired scenes in movies you can fast forward and rewind Videos can be repeated, i.e., replayed in an endless loop. Depending at three different speeds. Sound is not audible during winding. on the source (DR+ archive, USB storage medium, media server in the network), single or all videos can be replayed in an endless loop.
  • Page 56 Art 40-60 User guide Video Slow motion Select language/sound At an active pause (freeze frame) you can select from four slow mo- Videos, especially those recorded from TV broadcasts, can contain tion speeds (for wind/rewind). There is no sound during slow motion several sound tracks.
  • Page 57 Art 40-60 User guide Video Additional functions for DR+ archive playback Interval functions The intervals between manually or automatically set bookmarks There are additional editing and playback functions for playback of (intervals) can be faded out for future playbacks. In addition to that, recorded programmes from the DR+ archive.
  • Page 58 Art 40-60 User guide Video Hiding intervals Deleting intervals Defined intervals will be deleted when you delete the corresponding The Interval functions are activated. bookmark at the beginning or the end of the interval. mark Hide, OK hide current interval. Jumping to Bookmarks DR+ archive: ZDFinfo HD 17:05 - 17:50 Flora und Fauna Back...
  • Page 59 Art 40-60 User guide Video Deleting individual bookmarks Subtitles Subtitles of a broadcast can also be stored during recording see chap- Jump to the manually set bookmark to be deleted. ter Extras, section Timer – Entering the Timer data. DR+ archive: ZDFinfo HD 17:05 - 17:50 Flora und Fauna Back Showing recorded subtitles during playback: Show status bar.

  • Page 60: Audio/Radio

    Radio mode (Internet radio). Selecting music titles MediaNet Call MediaNet Browse Music. Mark desired directory, Media A Loewe media centre connected to your home OK open directory. Center network. Repeat procedure if necessary. Twonky- Examples with media servers in your home network.

  • Page 61: Audio Playback

    Art 40-60 User guide Audio/Radio Audio playback Pause playback PAUSE key: Stop current playback. Description of the symbols in the status display for audio playback Snow Patrol / Eyes Open Back Snow Patrol / Eyes Open Back Hands Open Chasing Cars Shut Your Eyes 00:00 02:56...
  • Page 62 Art 40-60 User guide Audio/Radio Select another title / play current title from start Repeat Music titles can be repeated, i.e., replayed in an endless loop. BACK: Call music selection. Select music title as described in chapter Audio/ Show status bar. Radio, section Selecting music titles.
  • Page 63 Art 40-60 User guide Audio/Radio Switching the screen ON/OFF Green key: Switch screen OFF. Snow Patrol / Eyes Open Back Hands Open Chasing Cars Shut Your Eyes 00:00 02:56 04:27 Mark Screen off OK Switch screen off. Switching off the screen reduces the power consumption of the TV set.

  • Page 64: Radio Mode (Dvb Radio)

    Art 40-60 User guide Audio/Radio Radio mode (DVB radio) Setting the volume The TV set can receive digital radio stations via DVB. V+/V– Volume up/down. The AUDIO key has been preset for radio operation in the factory. Other sound settings are the same as for the volume Radio mode on setting in TV mode (see chapter TV, section Setting AUDIO key on the remote control...

  • Page 65: Radio Mode (Internet Radio)

    Art 40-60 User guide Audio/Radio Radio mode (Internet radio) Setting the volume The TV set can receive digital radio stations via the Internet. V+/V– Volume up/down. The names of the directories and stations in the Internet radio mode are given by the provider vTuner. Changing the arrangement of sta- Other sound settings are the same as for the volume tions or renaming them is not possible here.

  • Page 66: Photo

    Art 40-60 User guide Photo Photo Photo function list The photo function list contains the individual functions for your Via menu item Photo you can view photos from your local media and photos. from online sources on your TV screen. The individual subitems are described in detail in the following.

  • Page 67: Photo Display

    Art 40-60 User guide Photo Photo display Full-screen mode A photo is marked. Description of the symbols in the status display for photos OK View photo in full-screen mode. USB1 -> CRW_7266b Back USB1 -> CRW_7266b Back Show previous / next picture. Symbol Remote Description...

  • Page 68: Web

    Internet. The lower portion of the MediaNet home screen All applications are optimised for use on the TV. contains Recommendations given by Loewe. The given content may change from time to time Browser Call Web browser of the TV set.
  • Page 69 Art 40-60 User guide MediaNet – Browse Define application as favourite MediaNet-Browse is called. Mark the desired application. Under the item Browse, you browse the full range of applications by topic. Add the marked application to the Home favourites. Back The favourite will be added to Home view and placed MediaNet - Browse at the end.

  • Page 70: Browser

    Internet site, interface (e.g. router, home control, home network server). OK Open address entry box. Calling the Web browser Enter/change internet address Back HOME: Call Home view. http://www.loewe.de Select Web, OK call. Select Browser, OK call. www. .com .net Start page will be opened.

  • Page 71: Extras

    Art 40-60 User guide Extras Extras Timer Extras contains additional functions and settings (e.g., Timer list, CA Timer list module settings). All programmed recordings, earmarked programmes and copy jobs are listed in the timer list. Call Extras You can also programme new recordings, earmark other program- mes and copy pre-recorded programmes from the DR+ archive to an HOME: Call Home view.
  • Page 72 Art 40-60 User guide Extras Timer New instruction: New recording New recording – Manual recording (current station) In the Timer list, New recording is selected. In the Timer list: Mark Create newly, Mark recording duration. OK call. The selection of a recording duration programmes Mark New recording, always a recording of the currently viewed station.
  • Page 73 Art 40-60 User guide Extras Timer New recording – Current programme Record conflict After calling the Current programme the timer data dialogue will be If you wish to programme a new recording which overlaps a timer displayed. The current programme is preset in the timer data. recording already saved, the Recording conflict dialogue will open.
  • Page 74 The availability of the appropriate data Station (only available when the selected station can be cannot be guaranteed by Loewe. received via different signal sources, e.g. DVB-T and DVB-S) Recording Select whether broadcast subtitles are to be recor- Select the signal source for the recording.
  • Page 75 Art 40-60 User guide Extras Timer Timer Services Explanations of the setting options in the timer functions menu: This menu offers you convenient alarm services. Programmed alarms are also active when the TV set has been switched off to standby. Switch off The set switches to the standby mode automatically If the TV set is switched on from the standby mode by alarm, a screen...

  • Page 76: Conditional Access Module (Ca Module)

    Mark Stations, ment supplied with the TV set. They are usually available from your go to next column. dealer. Loewe does not provide any guarantee for the functioning of the CA module. Automatic scan TV+Radio, The TV set must first recognise and set up the CA module during initial go to next column.

  • Page 77: Dvb Common Interface Standard (Ci)

    Art 40-60 User guide Extras CA module / DR+ Streaming DVB Common Interface Standard (CI) Selection possibilities in the CA module menu and performance ca- pability of your CA module depend on the type of module used and the software installed on it. Consult the manufacturer of the module if you have any questions.

  • Page 78: Special Functions

    TV set. Mark Special functions, Repeat initial installation go to next column. Reset to Mark Integrated features, OK call Integrated features. Integrated features Back Integrated Manufacturer LOEWE features Serial number Article number 52437W85 Chassis SL210 Software 10.2.2.6 CI Plus PRODUCTION Nicam...
  • Page 79 Art 40-60 User guide System settings System settings Under the menu item System settings in the Home menu you find all settings and adaptabilities of your TV set. These are explained to you more in detail as follows. Calling System settings HOME: Call Home view.

  • Page 80: Picture

    Art 40-60 User guide System settings Picture Picture Explanations of the picture settings (continuation): Here you do the settings referring to the representation of the picture Colour Here, you can give the TV picture a warmer or colder signal on your TV set. temperature hue according to your personal taste.
  • Page 81 Art 40-60 User guide System settings Picture Picture adjustment Selecting the picture format By selecting one of the three presets (Home Mode, Premium Mode The setting options depend on the transmitted picture content. or Shop Mode), the picture settings for whichever signal input group HOME: Call Home view.
  • Page 82 If you set 3D->2D to on, the 3D material from TV sta- You require a pair of Loewe Active Glasses 3D to be able to use the tions as well as from external players will be changed 3D functionality in its entirety (see chapter Accessories).
  • Page 83 Art 40-60 User guide System settings Picture Picture format / 3D mode If 3D contents are recognised by the TV device, the picture format cannot be subsequently changed. The picture format when in 3D operation is always 16:9 PC. Instruction / Symbol If 3D content is detected by the TV set, a corresponding message appears.

  • Page 84: Sound

    Art 40-60 User guide System settings Sound Explanations of the sound settings (continued): Sound Sound If the sound and picture are not precisely in sync, Calling the sound settings picture you may correct this here. Move the mark on the The selectable menu items depend on the selected station and the synchronisa- bar downwards, slowing down the sound compared...

  • Page 85: Stations

    Art 40-60 User guide System settings Stations Stations Under the item Stations you find all settings concerned with station search for TV and DVB radio as well as functions for creating and editing the various station lists. Station management is not possible as long as a programmed timer recording is active.

  • Page 86: Automatic Scan Tv+Radio

    Art 40-60 User guide System settings Stations Automatic scan TV+Radio Explanations of some search settings (continued): DVB-T/C/S If several networks are available, you can decide For automatic scan TV+Radio, a search wizard will be started that Network which network you want to receive your channels searches for new stations which are not yet stored.

  • Page 87: Manual Scan Tv / Radio

    Art 40-60 User guide System settings Stations Search for/update stations – handling of new and no longer Manual Scan TV / Radio found stations Here, you can enter all the settings available for a station. However, The number of new TV stations found is displayed after the automatic this requires detailed knowledge.
  • Page 88 Art 40-60 User guide System settings Stations Manual search for cable analogue (analogue cable reception): Manual DVB-T/C/S search: Manual search is called. Manual search is called. Cable analogue has been selected as signal source. Manual TV scan (incl. antenna status) Back Signal source Cable analog...

  • Page 89: Station Lists Tv / Radio

    Art 40-60 User guide System settings Stations Station lists TV / Radio Move block / Change order Stations with LCN cannot be reordered. In this case, Under the menu item Station lists TV or Station lists Radio you the function Move block is hidden. can edit (delete block, move block, restore deleted stations) various lists, e.g., DVB-T, ASTRA LCN, DVB-C, etc.

  • Page 90: Compose / Edit Personal List

    Art 40-60 User guide System settings Stations Compose / edit Personal list Adding stations to Personal list The Personal list must be opened to add new Each personal list can contain up to 99 stations. You can compose the stations to it. personal lists to suit your convenience (e.g., topic lists).

  • Page 91: Update Station List Automatically

    Art 40-60 User guide System settings Stations Update station list automatically At once The station list will be immediately updated. Normally this occurs in the background without interfering Some programme providers offer an automatic update of the sta- further with the TV‘s operation. In exceptional cases, tion lists (Dynamic Channel Management).

  • Page 92: Control

    Art 40-60 User guide System settings Control Control more ... In the chapter Control you find settings for the various operating modes like PIP and DR+ as well as settings referring in an interfunctional way On-screen Here you can make settings for the duration, position to your TV set like, for example, time and date and on-screen displays.

  • Page 93: Language

    Art 40-60 User guide System settings Control Language Specify the language for all menus in the TV set in the language menu. Calling EPG settings The language for the DVB subtitles and the film language can be set HOME: Call Home view. for DVB programmes.

  • Page 94: Parental Lock

    Art 40-60 User guide System settings Control Parental lock Explanations of setting possibilities in the Parental lock menu: Lock all The TV set is locked immediately the menu is exited. You can select and set various security options to prevent unauthor- stations All programmes can then only be watched after ised use of the TV set and to protect your children from unsuitable...

  • Page 95: Energy Efficiency

    Art 40-60 User guide System settings Control Energy efficiency Quick start mode Determine how energy efficient your TV set shall be. The value for If you enable the Quick Start Mode and you switch on the TV set from the contrast (and thus the brightness of the background lighting) is standby, the TV picture can be immediately seen without delay.

  • Page 96: Software Update

    Software update USB stick - requirements USB sticks tested by Loewe and compatible in type and format can It is possible to update the software on your Loewe TV set. be ordered from the Loewe dealer using the article no. 90456.900.
  • Page 97 Art 40-60 User guide System settings Control Software update via USB storage device New software package found New software To do this, plug the USB stick with the downloaded software into a A new software version was found. A new software version was found..
  • Page 98 Art 40-60 User guide System settings Control Manual update via the Internet New software package found If an Internet connection is available, new software can be downloaded New software directly and installed onto the TV set. A new software version was found. A new software version was found.
  • Page 99 Art 40-60 User guide System settings Control Software update via Antenna Load new software package Updating software A software update via antenna is only available for stations of the The "V2.3.14.0" software is currently being programmed, please wait ... Via antenna ...
  • Page 100 Art 40-60 User guide System settings Control Automatic update via the internet At the end of the initial installation, Information on new software updates was selected. This item cannot be called up via the menu, but appears automati- cally when a new version is found in the search for software. New software package found If the TV set has found a new software version during the check, you will be informed about this via a screen message.

  • Page 101: On-Screen Displays

    Art 40-60 User guide System settings Control On-screen displays Time and date You can select different settings in this menu which affect the on- Time and date are automatically detected and set via the DVB pro- screen displays. gramme provider (e.g. Astra, UPC) or, during an Internet connection, via Internet time services.

  • Page 102: Dvb Settings

    Art 40-60 User guide System settings Control DVB settings You can make general pre-settings for DVB stations. Calling DVB settings HOME: Call Home view. Mark System settings, OK call System settings. Mark Control, go to next column. Mark more ..., call other settings.
  • Page 103 Call settings for the digital recorder By selecting "yes" here, you can view films from the DR+ Use Archive archives of other Loewe TVs that have been set up for this Streaming other TVs function, as long as these units have had their DR+ archives HOME: Call Home view.

  • Page 104: Standard Teletext

    Art 40-60 User guide System settings Control Standard Teletext In the Standard Teletext menu you can configure the Teletext. Call Teletext settings HOME: Call Home view. Mark System settings, OK call System settings. Mark Control, go to next column. Mark more ..., call other settings.

  • Page 105: Hbbtv

    Art 40-60 User guide System settings Control HbbTV Start behaviour of HbbTV-stations If HbbTV mode on has been selected (see left column), you can HbbTV mode on/off specify if an available HbbTV application should be loaded automati- cally after the channel has been changed or if this should only occur When the HbbTV mode is active (factory setting), additional services manually after the red key has been pressed once.

  • Page 106: Ca Module(S)

    Art 40-60 User guide System settings Control Feature of the TEXT key CA module(s) With the setting Standard Teletext first (factory setting), the This menu is only available when at least one CA module is plugged standard Teletext is opened when the TEXT key is pressed for the first time.

  • Page 107: Record

    Art 40-60 User guide System settings Control Record Hard disks You can set a pre-record and post-record time for timer recordings Formatting the hard disk made without auto time control. This minimizes the risk that a part If you want to use an external hard disk on your TV, you must format of the broadcast is not recorded due to the broadcast starting earlier it on the TV.

  • Page 108: Web Key Function

    Art 40-60 User guide System settings Control WEB key function You can assign the Web key on the remote control unit a particular function. The selected function will then be called directly when the key is pressed. Call WEB key settings Default setting: MediaNet HOME: Call Home view.

  • Page 109: Network Settings

    Please select the desired network mode from the list or switch it off completely. OK call System settings. Note: The "bridge function" allows additional network-compatible devices (e.g. LOEWE Blu-ray Player) to be connected to the TV's network socket without their own network access, in order to also use the TV's wireless network connection.
  • Page 110 Art 40-60 User guide System settings Multimedia / Network Configuration of the built-in LAN adaptor Configuration of the built-in WLAN bridge adaptor The network wizard was called via the network ac- The network wizard was called via the network cess setting On, wired only. access setting On, wireless only or Wireless + bridge function.
  • Page 111 Art 40-60 User guide System settings Multimedia / Network Explanation of the adaptor settings: Proxy server settings In the proxy server wizard your TV set establishes the Network shows the current type of connection (wireless or link with a home network with proxy server. wired).

  • Page 112: Multimedia Settings

    Art 40-60 User guide System settings Multimedia / Network Multimedia settings Renderer Under this menu item you find further settings for Audio, Video and Here you can allow external devices to access your TV set (renderer) Photo. via app to render (play back) contents there. Calling the Multimedia settings menu Call up renderer menu Default setting: on...

  • Page 113: Connections

    Art 40-60 User guide System settings Connections Connections Settings for the connection of external appliances are made in this menu. The menu item Connections is not available while a timer record- ing is active. Calling the connections menu HOME: Call Home view. Mark System settings, OK call System settings.

  • Page 114: Sound Components

    HiFi/AV amplifier and mark them by the button ponents the HiFi/AV amplifier. Stereo (PCM) Stereo (PCM) Sound Sound reproduction via a Loewe Individual Sound MPEG Dolby Digital projector Projector. For further information, refer to the opera- ting instructions of the sound projector.

  • Page 115: Antenna Dvb

    Art 40-60 User guide System settings Connections Antenna DVB AV connection settings Here you can make settings for the DVB-T antenna and call the antenna In the AV connection settings menu the parameters for the AV con- wizard for the DVB-S antenna. nection socket can be adapted.

  • Page 116: Digital Link

    Art 40-60 User guide System settings Connections Digital Link Gaming mode In the digital link menu you make further setting for comfortably linking For the inputs of your TV set on which game consoles, PC applications external devices to the TV set. or even Karaoke machines are operated, we recommend you to acti- vate the Gaming mode.

  • Page 117: External Devices

    Your TV set can show optimally 24p movies, which are output from a information on the version of the HDMI interface on your external connected HDMI player, e.g., Loewe BluTech Vision 3D. device, e.g., PC. Digital video signals from a DVI player can be also be reproduced by the HDMI connection using a DVI/HDMI adaptor cable.

  • Page 118: Digital Link Hd

    Digital Link HD (HDMI CEC) the external device with a few exceptions (volume, sound on/off). You The Digital Link HD (HDMI CEC) system operation allows Loewe will also be informed by an on-screen display as soon as you switch to television sets to transmit the remote control signals via the HDMI the corresponding HDMI input.

  • Page 119: Devices On Av

    The required Scart adaptor is part of the adaptor set. The Switch off all devices before connecting them. adaptor set is available as an accessory from your Loewe dealer (see Connect the Scart output of the DVD player to the TV set’s AV socket chapter Accessories).
  • Page 120 Art 40-60 User guide External devices Connecting a DVD recorder to the TV set Connecting Camcorder/camera to the tv set A DVD recorder has been selected in the System settings Con- Choose Other equipment in the System settings Connec- nections AV connecting settings Device at connection AV.

  • Page 121: Devices On Pc In

    Art 40-60 User guide External devices Devices on PC IN Connecting devices with component connection (YPbPr / YUV) External units with component connection YPbPr (often informally The AV input PC IN offers the possibility to connect a PC or set-top referred to as YUV;...

  • Page 122: Connecting The Audio System

    Connect the HDMI1 socket of the TV using an HDMI cable with the HDMI socket of the ARC-compatible audio (pre) amplifier (e.g.Loewe MediaVision 3D). It is not necessary to log-in the amplifier separately TV set with the TV set.

  • Page 123: Audio Playback From External Devices

    Serial interface RS-232C (RJ12) Connect external AV devices (e.g., MP3 player, DVD player) for sound You can connect either the Loewe Individual Sound Projector ID or a reproduction to the AV input of the TV set. home network system of different manufacturers (e.g. AMX, Crestron) to your TV set via the RS-232C (RJ12) interface.

  • Page 124: Operating Loewe Units

    Operating Loewe units Setting the remote control for other Loewe devices You can operate various Loewe devices with the remote control. The device keys STB – VIDEO – AUDIO can be reassigned to operate Using the remote control for the TV mode of the TV set different Loewe devices.

  • Page 125: Teaching The Remote Control

    For the use of 2-digit key codes see chapter External devices, section Operating Loewe units. Place the TV remote control and the remote control to be replaced in such a way that the infrared windows face each other at a distance The following options are available for teach-in: of 1-5 cm (see sketch).

  • Page 126: Loewe Apps

    The LEDs above the keys for the devices flash twice. The Loewe Assist Media App is a powerful App, which can not only replace your remote control in your home network, but also EPG and DR+ archive provided by the TV set to your iPad. You can also transfer...

  • Page 127: Loewe Apps

    1. WLAN router and home network App Stores. A WLAN router must be connected and installed. 2. The Loewe TV set is connected to the home network via LAN / WLAN Your reach the network setting of the Loewe TV set...
  • Page 128 Thus, you can use the maxdome video service, for example. Enter the keyword Loewe in the browse list on the right above. Start searching by pressing on Search. Open the Assist Media app on your iPad. It scans your home network for Loewe TV sets.

  • Page 129: Troubleshooting

    Art 40-60 User guide Troubleshooting Problem Possible cause Remedy / Instructions The TV set switches off automatically. The automatic shutdown switches off the Using automatic shutdown is recommended TV set to save energy after 4 hours of inacti- for the purposes of energy saving and safety. vity as soon as at least one signal input group is set up in the energy efficient mode Home Mode.
  • Page 130 Art 40-60 User guide Troubleshooting Problem Possible cause Remedy / Instructions Although the file is visible on the media server, The file is not made available by your media Change to your media server. For this, also it is not displayed in the MediaPortal. server.

  • Page 131: Technical Data

    Art 40-60 User guide Technical Data Technical data Type Art 60 Art 50 Art 40 Part number 52437xxx 52436xxx 52435xxx Device dimensions without stand (W x H x D) 139,2 x 85,8 x 6,8 114,9 x 71,4 x 6,3 90,9 x 57,4 x 6,2...

  • Page 132: Function Of The Connections

    Art 40-60 User guide Technical Data Function of the connections The following table shows the name, type and function of the ports. Designation Type Function / Signal Mains socket 220-240 V ~ 50 / 60 Hz Supply voltage RJ12 Data I/O: serial interface Video IN: with S-Video adaptor:...

  • Page 133: Media

    Art 40-60 User guide Technical Data Media File formats supported Pictures: JPEG, PNG Audio: MP3, M4A (AAC LC), WMA (without lossless), FLAC, WAV (PCM) Video: AVI (MPEG-1/2, XviD, AC3, MP3), WMV (WMV9, VC-1, WMA9, WMA Pro), MP4 (XviD, H.264/MPEG-4 AVC, AAC LC), MOV (H.264/MPEG-4 AVC, AAC LC), MKV (H.264/ MPEG-4 AVC, AC3), FLV (H.264/MPEG-4 AVC, H.263, MP3, AAC LC), MPG (MPEG-1, MPEG Audio), TS/PS...

  • Page 134: Signals Via Pc In / Hdmi

    Art 40-60 User guide Technical Data Signals via PC IN / HDMI Signal input groups The following table lists the compatible signals which your TV set can In your TV set the signals are sorted in various signal input groups show via the PC IN connection or via the HDMI connections (HDMI1, according to their source.

  • Page 135: Accessories

    With the Loewe Blu-ray player BluTech Vision 3D you’re fully kitted to connect, e.g., DVD players or DVD recorders. The VGA adaptor out to watch Blu-ray discs with 2D and 3D material. With the Loewe enables the connection of a PC monitor or a Set-top box. By means system integration you control BluTech Vision 3D and your Loewe TV of the S-video adaptor you connect your video camera to the TV set.

  • Page 136: Equipment Variants

    Art 40-60 User guide Accessories Equipment variants The equipment of the individual set variants and their upgrade/conversion possibilities is listed in the table below. Set variants Art 60 Art 50 Art 40 DR + – – – USB Recording DVB-T/C Single DVB-T/C Twin –...

  • Page 137: Mounting Options

    User guide Accessories Mounting options Wall Mount Slim/Vesa Size Wall Mount WM 66 Wall Mount Isoflex 32-55 Art 60: VESA Size 400 (71361T10) Art 60: 71915W00 Art 60: 71363B00 Art 50: 71915W00 Art 50: 71363B00 Art 50: VESA Size 400 (71361T10)

  • Page 138: Environment

    Free Software Foundation. tain any pollutants such as cadmium, lead, or mercury. The publication of this program by Loewe is carried out WITHOUT ANY In accordance with the Battery Directive, used batter- GUARANTEE OR SUPPORT, particularly without an implicit guarantee...

  • Page 139: Glossary

    Digital Link HD: System for controlling units via the HDMI connection from the data programmed in the timer data, the running time of the of the Loewe TV set when they have been set up in a covered position. recording is adapted automatically. The automatic time control is not DMM: Abbreviation for Digital Movie Mode.
  • Page 140 Ethernet: Cable linked data net technology for local networks (LANs). L-Link: Intelligent system connection between Loewe devices for the Also covers standards for e.g. plug connectors and transfer speeds. automatic exchange of information. Makes the operation of TV and Euro AV socket: Interface for connecting video devices to a TV set.
  • Page 141 Art 40-60 User guide Glossary Smart Card: The Smart Card is an electronic chip card issued by the respective programme provider or by the certification free Pay TV operators. It contains the code which is decoded by the CA module. NAS: The term describes a hard disk which is independently linked to the network (i.e.
  • Page 142 Art 40-60 User guide Glossary Ycc/Ypp: Colour standards for Set-top boxes.. YCbCr: Digital colour model, informally also incorrect designation for signals in standard resolution (SDTV). The YCbCr colour model, in which, e.g., DVDs are coded, has been developed from the YUV colour model used in analogue television technology.

  • Page 143: Ec Declaration Of Conformity

    Art 40-60 User guide EC Declaration of Conformity Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprechenden Vorgaben der Richtlinie 1999/5/ EG. Es darf in allen Ländern der EU sowie zusätzlich in Island, Norwegen und der Schweiz betrieben werden. In Frankreich und Italien ist die Nutzung nur in Innenräumen zulässig.
  • Page 144 Art 40-60 User guide EC Declaration of Conformity...

  • Page 145: Index

    Art 40-60 User guide Index Symbole 3D ..................... 80 Data capture ..................93 3D function ..................82 Deblocking filter ................80 Delete Bookmarks .................. 59 individual bookmarks ..............59 Access code ..................94 Recording ..................48 Accurate Recording .................74 Delete manager ................49 Adding stations to personal list ............
  • Page 146 Length of the station list ..............34 Picture adjustment ..............80, 81 Picture format ................80, 81 LNC/LNB ................25, 27, 28 4:3 ....................81 Loewe Apps ..................126 16:9 ....................81 Loudness ..................84 PALplus ..................81 Panorama ..................81 Zoom ..................... 81 Mains switch ................
  • Page 147 Art 40-60 User guide Index Shutdown of the ext. device via TV button ........116 Side by side ..................82 VBD+ ....................80 Signal type ..................115 VIDEO key ..................124 Skin tone ..................80 Video playback Slow motion ..................56 Change picture format ..............

  • Page 148: Service

    Fax +47 - 33 44 60 44 P.O. Box 32836, Sheikh Zayed Road Fax +49 9261 99-515 E-mail: loewe@loewe.no Dubai, UAE E-mail: ccc@loewe.de Tel +971 - 4 343 14 41 Fax +971 - 4 343 77 48 E-mail: service@dubaiaudio.com © by Loewe Technologies 22.04.14...

  • Page 149: Code Page

    Art 40-60 User guide Code page CONDOR 164, 226 LORENZEN 161, 162, 163, 164, 165, 186 CONNEXIONS 047, 096, 226, 231 GENIX LORRAINE BSAT 166, 169 CONRAD 006, 010, 164, 169, 226, 230 GENERAL-INSTRUMENTS LUPUS AEGIR CONTEC 054, 135, 169 GIUCAR RECORD LUXOR 006, 010, 021, 088, 097,...
  • Page 150 Art 40-60 User guide Code page OPTIMA SATMASTER 191, 205, 206, 211 OPTUS SATPARTNER 017, 079, 094, 133, 179, THORENS ORBIT 025, 194 180, 193, 201 THORN ORBITECH 006, 017, 103, 169, 181, 224 SATSTATION THORN-FERGUSON 023, 048, 067 ORIGO 126, 221 SAVA 077, 108, 161, 164, 171,...

  • Page 151: Notes

    Art 40-60 User guide Notes...
  • Page 152 Art 40-60 User guide Notes...

This manual is also suitable for:

Art 50Art 40

Table of Contents
