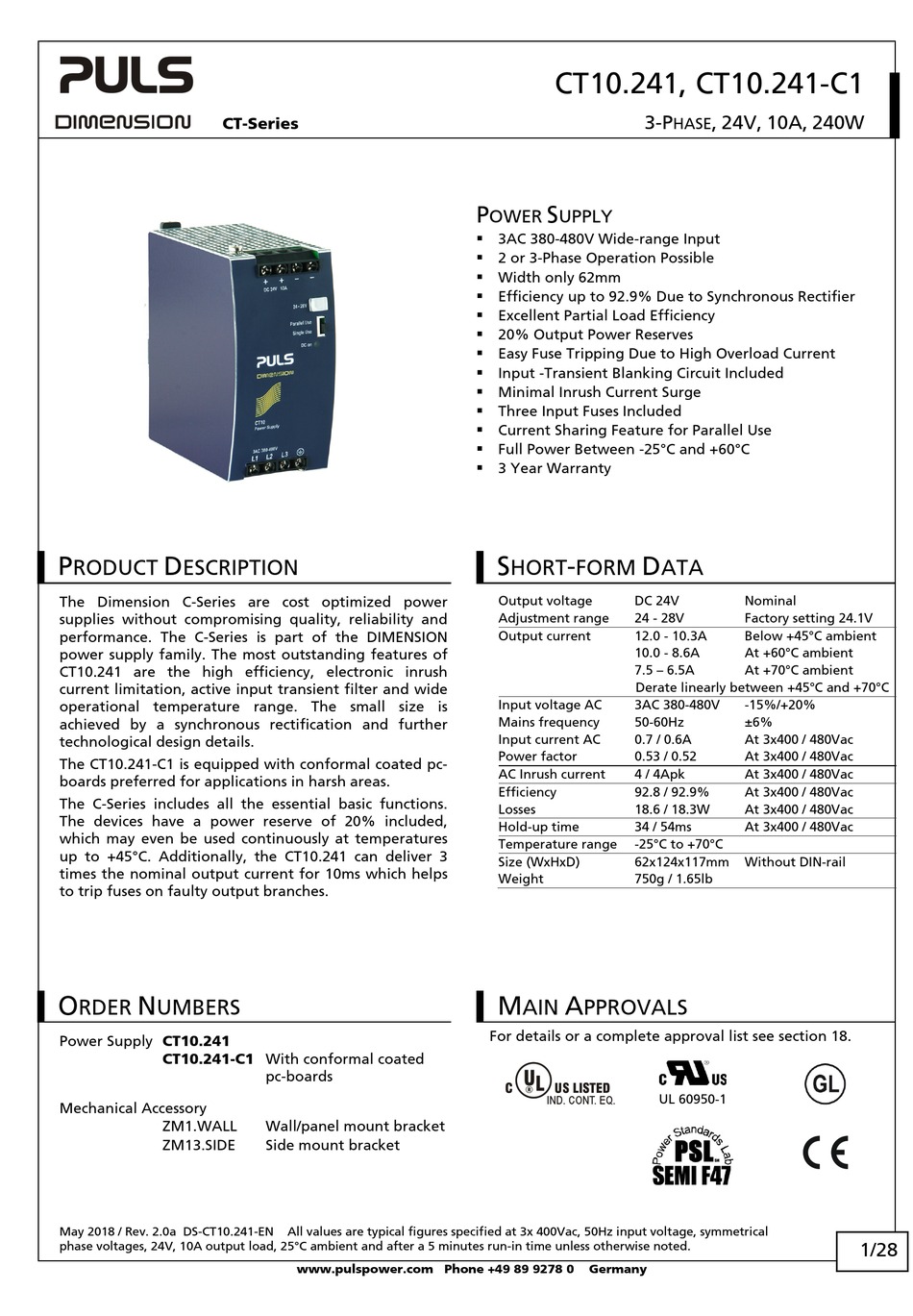

Puls DIMENSION CT-Series Manual

3-phase, 24v, 10a, 240w

Advertisement

Quick Links

CT-Series
P
D
RODUCT
ESCRIPTION
The Dimension C-Series are cost optimized power
supplies without compromising quality, reliability and
performance. The C-Series is part of the DIMENSION
power supply family. The most outstanding features of
CT10.241 are the high efficiency, electronic inrush
current limitation, active input transient filter and wide
operational temperature range. The small size is
achieved by a synchronous rectification and further
technological design details.
The CT10.241-C1 is equipped with conformal coated pc-
boards preferred for applications in harsh areas.
The C-Series includes all the essential basic functions.
The devices have a power reserve of 20% included,
which may even be used continuously at temperatures
up to +45°C. Additionally, the CT10.241 can deliver 3
times the nominal output current for 10ms which helps
to trip fuses on faulty output branches.
O
N
RDER
UMBERS
Power Supply CT10.241
CT10.241-C1 With conformal coated
Mechanical Accessory
ZM1.WALL
ZM13.SIDE
May 2018 / Rev. 2.0a DS-CT10.241-EN
phase voltages, 24V, 10A output load, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
pc-boards
Wall/panel mount bracket
Side mount bracket
All values are typical figures specified at 3x 400Vac, 50Hz input voltage, symmetrical
www.pulspower.com Phone +49 89 9278 0
CT10.241, CT10.241-C1
3-P
P
S
OWER
UPPLY
 3AC 380-480V Wide-range Input
 2 or 3-Phase Operation Possible
 Width only 62mm
 Efficiency up to 92.9% Due to Synchronous Rectifier
 Excellent Partial Load Efficiency
 20% Output Power Reserves
 Easy Fuse Tripping Due to High Overload Current
 Input -Transient Blanking Circuit Included
 Minimal Inrush Current Surge
 Three Input Fuses Included
 Current Sharing Feature for Parallel Use
 Full Power Between -25°C and +60°C
 3 Year Warranty
S
-
D
HORT
FORM
Output voltage
DC 24V
Adjustment range
24 - 28V
Output current
12.0 - 10.3A
10.0 - 8.6A
7.5 – 6.5A
Derate linearly between +45°C and +70°C
Input voltage AC
3AC 380-480V
Mains frequency
50-60Hz
Input current AC
0.7 / 0.6A
Power factor
0.53 / 0.52
AC Inrush current
4 / 4Apk
Efficiency
92.8 / 92.9%
Losses
18.6 / 18.3W
Hold-up time
34 / 54ms
Temperature range
-25°C to +70°C
Size (WxHxD)
62x124x117mm
Weight
750g / 1.65lb
M
A
AIN
PPROVALS
For details or a complete approval list see section 18.
IND. CONT. EQ.
Germany
, 24V, 10A, 240W
HASE
ATA
Nominal
Factory setting 24.1V
Below +45°C ambient
At +60°C ambient
At +70°C ambient
-15%/+20%
±6%
At 3x400 / 480Vac
At 3x400 / 480Vac
At 3x400 / 480Vac
At 3x400 / 480Vac
At 3x400 / 480Vac
At 3x400 / 480Vac
Without DIN-rail
UL 60950-1
