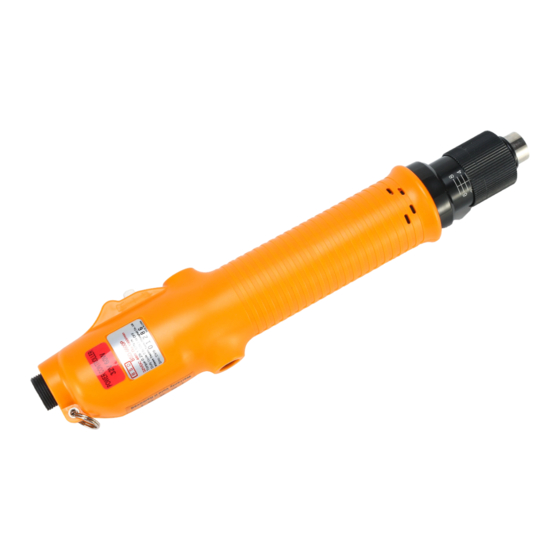

- Page 1 OPERATION AND MAINTENANCE MANUAL BSD-6200P BSD-6600P BSD-6600PF BSD-8000P BSD-8200P BSD-8800P BSD-8800PF LOW VOLTAGE METAL ASSEMBLY SCREWDRIVER KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y20032L-4-001...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
-
Page 3: General Safety Rules
1. General Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation.
- Page 5 2. Operations Cautions 1) Whenever changing a bit, make certain the Forward / Reverse Switch is in the “ OFF “ position and tool is unplugged. 2) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the screwdriver housing as damage will result.
-
Page 6: Specifications
3. Specifications REQUIREMENTS This tool requires an power controller ： BSP-32HL-60W (input：100-240VAC 50/60Hz output：32/24VDC) BSP-32VR-60W (input：100-240VAC 50/60Hz output：24-32VDC) BSP-32HL (input：100-240VAC 50/60Hz output：32/24VDC) BSD- BSD- BSD- BSD- BSD- BSD- BSD- MODEL 6200P 6600P 6600PF 8000P 8200P 8800P 8800PF Input voltage (DC) 32VDC Rated input 2-12... -
Page 7: Description Of Operation
4. Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by finger tip, and it will be unlocked. Thus, the bit can be freely attached and detached (single finger notion type) select such a bit whose shank is equal to the size shown below. ■... - Page 8 BSD-8800P with BIT 2 Pcs. BSD-8800PF with BIT 1#&2# 1 Pcs.. Each 2.Carbon Brush :2 Pcs, Those 2 Pcs brush are spare parts. 3.Suspension rack and Torque fixing ring acceptable for use with the tool are available from KILEWS catalogue.
-
Page 9: Do Not Attempt To Repair This Electric Screwdriver
5. Do not remove any labels. Replace any damaged label. CAUTION 1. The use of other than genuine KILEWS replacement parts may Result in decreased tool performance and increased maintenance, and may invalidate all warranties. 2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. - Page 11 6200P 6600P NO PARTS NO PARTS NAME-E Q'ty NO PARTS NO PARTS NAME-E Q'ty AA50005A-D6P-2N CORD ASSEMBLY 32 GK20231 "C" RING FOR CH20241 PZ50160 CONNECTOR 33 GI20251-1 IRON WASHER CJ20011 SUSPENSION RING 34 GH20241 IDLE GEAR CB33401-4 HOUSING-UNDERSIDE 35 GG20271 GEAR SEAT CB33401-8 HOUSING-UNDERSIDE(ESD)
- Page 13 6600PF NO PARTS NO PARTS NAME-E Q'ty NO PARTS NO PARTS NAME-E Q'ty AA50005A-D6P-2N CORD ASSEMBLY 33 GI20251-1 IRON WASHER PZ50160 CONNECTOR 34 G21302 SPACER CJ20011 SUSPENSION RING 35 GH20241-1 IDLE GEAR CB33401-4 HOUSING-UNDERSIDE 36 GG20271-1 GEAR SEAT CB33401-8 HOUSING-UNDERSIDE(ESD) 37 GA30311-8 GEAR CASE CA33402-4...
- Page 15 8000P 8200P 8800P NO PARTS NO PARTS NAME-E Q'ty NO PARTS NO PARTS NAME-E Q'ty AA50005A-D6P-2N CORD ASSEMBLY 2M 31 GI21191 IRON WASHER PZ50160 CONNECTOR 32 GH20241 IDLE GEAR FOR "8000P" CJ20011 SUSPENSION RING GH91232 IDLE GEAR FOR "8200P" CB70011-1 HOUSING-UNDERSIDE GH92231 IDLE GEAR FOR "8800P"...
- Page 17 8800PF NO PARTS NO PARTS NAME-E Q'ty NO PARTS NO PARTS NAME-E Q'ty AA50005A-D6P-2N CORD ASSEMBLY 2M 31 GI21191 IRON WASHER PZ50160 CONNECTOR 32 G21301 SPACER CJ20011 SUSPENSION RING 33 GH21221-1 IDLE GEAR CB70011-1 HOUSING-UNDERSIDE 34 GG21231-1 GEAR SEAT CB70011-3 HOUSING-UNDERSIDE-ESD 35 GA21241 GEAR CASE...
- Page 18 MODEL: BSP-32HL-40W BSP-32HL-60W BSP-32VR-40W BSP-32VR-60W...
