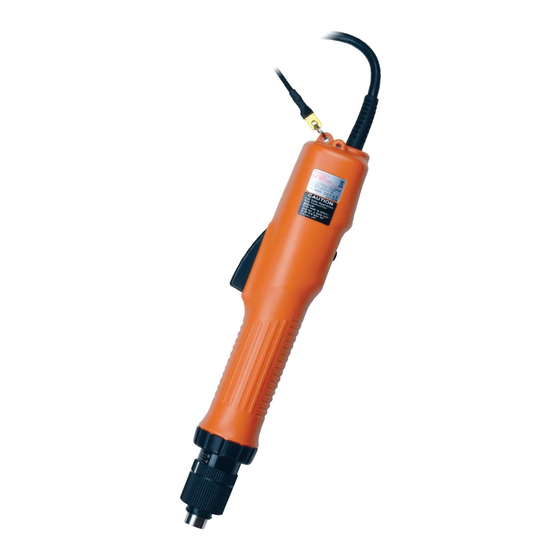

Kilews SK-B6125L Operation And Maintenance Manual

Ac-type brushless electric screwdrivers
Hide thumbs Also See for SK-B6125L:
Table of Contents

Advertisement

Quick Links

Download this manual

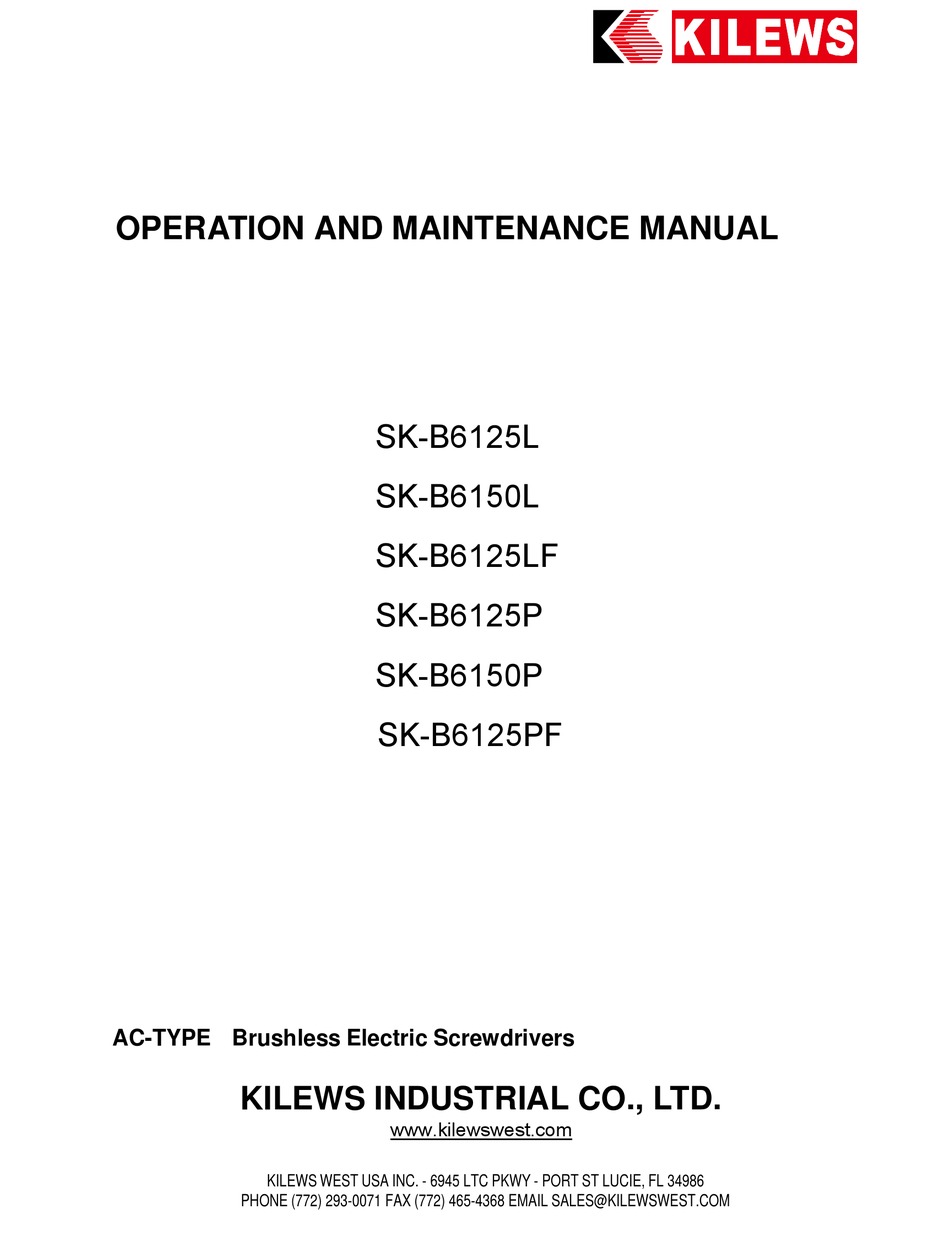

OPERATION AND MAINTENANCE MANUAL




























AC-TYPE Brushless Electric Screwdrivers


SK-B6125L
SK-B6150L
SK-B6125LF
SK-B6125P
SK-B6150P
SK-B6125PF
KILEWS INDUSTRIAL CO., LTD.
www.kilewswest.com
KILEWS WEST USA INC. - 6945 LTC PKWY - PORT ST LUCIE, FL 34986
PHONE (772) 293-0071 FAX (772) 465-4368 EMAIL SALES@KILEWSWEST.COM
SK-B6125L-100

SK-B6150L-100

SK-B6125LF-100

SK-B6125P-100

SK-B6150P-100

SK-B6125PF-100


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SK-B6125L and is the answer not in the manual?

Questions and answers

Related Manuals for Kilews SK-B6125L

Summary of Contents for Kilews SK-B6125L

  • Page 1             AC-TYPE Brushless Electric Screwdrivers KILEWS INDUSTRIAL CO., LTD. www.kilewswest.com       KILEWS WEST USA INC. - 6945 LTC PKWY - PORT ST LUCIE, FL 34986 PHONE (772) 293-0071 FAX (772) 465-4368 EMAIL SALES@KILEWSWEST.COM...
  • Page 2   NOTICE   Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted.        ...

  • Page 3: Important Safety Rules

            Important Safety Rules       WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refers to your mains-operated (corded) power tool or battery operated (cordless) power tool.
  • Page 4     4) Power tool Use and Care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use power tool if switch does not turn it on / off.

  • Page 5: Do Not Operate This Tool Without Protective Earth Connected

            WARNING！ DO NOT OPERATE THIS TOOL WITHOUT PROTECTIVE EARTH CONNECTED     Grounding Instructions     1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility.
  • Page 6       Operations Cautions     1) Whenever changing a bit, make certain the Forward / Reverse Switch is in the “OFF” position and tool is unplugged. 2) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the screwdriver housing as damage will result.

  • Page 7: Description Of Operation

      Description of Operation     Attaching / detaching bit and bit type Push up the holder clamp by fingertip, and it will be unlocked. Thus, the bit can be freely attached and detached (single finger notion type) select such a bit whose shank is equal to the size shown below.  ...

  • Page 8: Do Not Attempt To Repair This Electric Screw Driver

    CAUTION   1. The use of other than genuine KILEWS replacement parts may result in decreased tool performance and increased maintenance, and may invalidate all warranties. 2. All repairs and maintenance of this tool and its word must be performed by an authorized service center.

  • Page 9: Specifications

    BIT 2 Pcs. SK-B6150L ；SK-B6150P with BIT 2 Pcs. SK-B6125LF；SK-B6125PF with BIT 2 Pcs. 2. Suspension rack and Torque fixing ring acceptable for use with the tool are available from KILEWS catalogue. 3. Torque Fixing Ring KC-7C 1 Pcs  ...

  • Page 10: Torque Adjustment Operation

    2. The numbers from zero to eight on the torque scale are reference number only and not an indication of actual torque output. 3. Please refer to Kilews website http://www.kilews.com for the detail component list.  ...
  • Page 12 B6125P B6150P NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty AM30001-A Cord Assy-AMERICA Plug 電源線整組 美規 CH20102-31 SCREW 固定螺絲 AM30001-E Cord Assy-EUROPE Plug 電源線整組 歐規 GZ84001-3A CLUTCH ASSEMBLY-B6125PA 離合器成品-B6125PA AM30001-U Cord Assy-BRITISH Plug 電源線整組...
