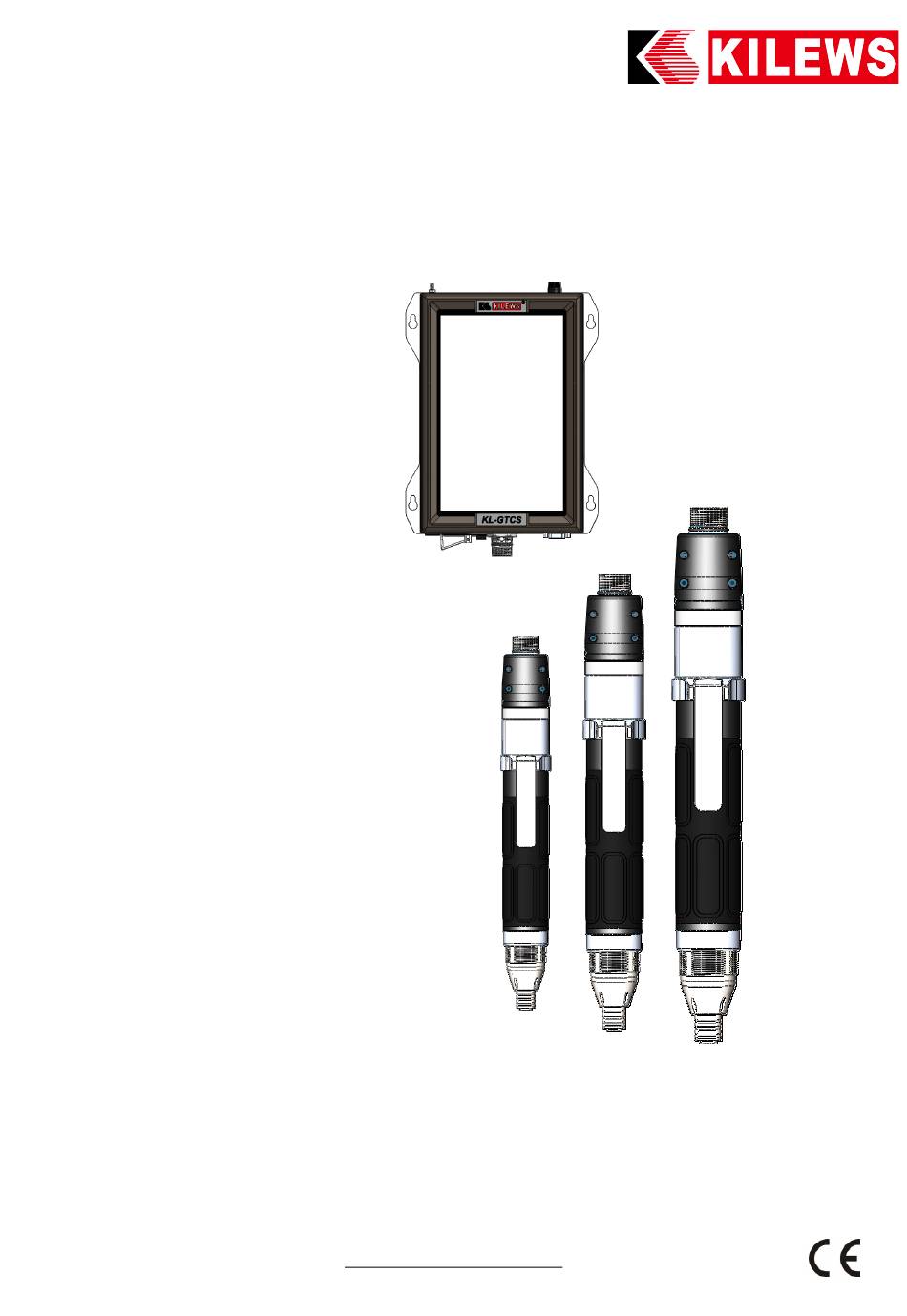

- Page 1 OPERATION AND MAINTENANCE MANUAL SGT-CS301 SGT-CS302F SGT-CS303 SGT-CS503 SGT-CS505 SGT-CS507 SGT-CS712 SGT-CS718 SGT-CS725 Automatic Non-Carbon-Brush Series KILEWS INDUSTRIAL CO., LTD. https://www.kilews.com.tw Y2F236A-E-003...
- Page 2 NOTICE Metal Assembly sensor screwdriver are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed.
-
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.
-
Page 5: Do Not Operate This Tool Without Protective Earth Connected
Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. - Page 6 Operations Cautions Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the sensor screwdriver housing as damage will result. Use the sensor screwdriver carefully, do not drop or be impacted, it is best to use a balancer to lift it, and set it on the auxiliary arm for operation.
-
Page 7: Function / Operating Introduction
Function / Operating Introduction Number Product Name Description Use Bit Sleeve The bit can be freely attached and detached LED Lighting Please refer to the KL-GTCS operation manual for setting auxiliary lighting adjustment. Front Cover Help to fix on the auxiliary arm Thread Front Lock Ring Lock stationary gearbox and housing Press-plate Start Press to start the screwdriver... - Page 8 Servicing Maintenance and Inspection: The screwdriver must be operated in top condition, one day working hour must be not more than eight hours. Cording to operating frequency and torque loaded, we suggest adding lubricating oils in clutch per 3-6 months, and kindly contact with distributor when product's maintenance.
-
Page 9: Do Not Attempt To Repair This Electric Screwdriver
CAUTION 1. The use of other than genuine KILEWS replacement parts may Result in decreased tool performance and increased maintenance and may invalidate all warranties. 2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. -
Page 10: Specifications
Specifications MODEL SGT-CS301 SGT-CS302F SGT-CS303 Input voltage (DC) DC40V Power Consumption (N.m) 0.1-1 0.3-2.4 0.38-3 Torque +/-3sigma (kgf.cm) 1.02-10.2 3.06-24.48 3.88-30.60 /AVG. 5% (Lbf.in) 0.89-8.85 2.66-21.24 3.36-26.55 Repeatable Torque Accuracy +/- 3sigma / AVG., 5% Unloaded Rotation Speed ±3% 60-980... - Page 11 Specifications MODEL SGT-CS503 SGT-CS505 SGT-CS507 Input voltage (DC) DC40V Power Consumption (N.m) 0.38-3 0.63-5 0.88-7 Torque +/-3sigma (kgf.cm) 3.88-30.60 6.43-51.00 8.98-71.40 /AVG. 5% (Lbf.in) 3.36-26.55 5.58-44.26 7.79-61.96 Repeatable Torque Accuracy +/- 3sigma / AVG., 5% Unloaded Rotation Speed ±3% 60-1600 60-1100 60-660 (r/min)Can be set and adjusted...
- Page 12 Specifications MODEL SGT-CS712 SGT-CS718 SGT-CS725 Input voltage (DC) DC40V Power Consumption (N.m) 1.5-12 2.25 -18 3.13-25 Torque +/-3sigma (kgf.cm) 15.30-122.40 22.95-183.6 31.93-255 /AVG. 5% (Lbf.in) 13.28-106.21 19.91-159.3 27.70-221.28 Repeatable Torque Accuracy +/- 3sigma / AVG., 5% Unloaded Rotation Speed ±3% 40-800 30-550 20-350...
