Summary of Contents for Kernau KFWM 7511 R

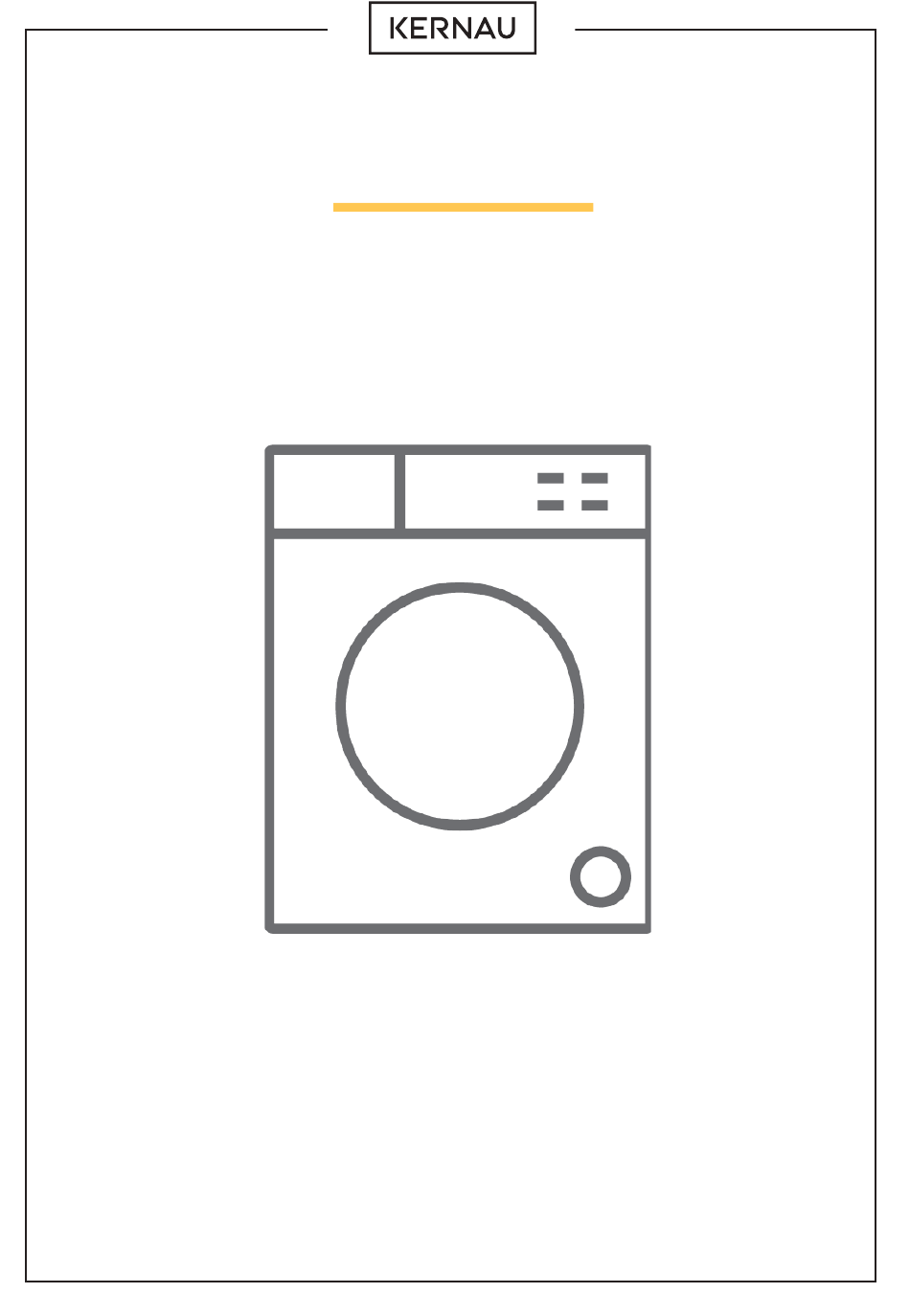

- Page 1 INSTRUCTION FOR USE KFWM 7511 R...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.
-
Page 3: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS ....................... .1 1.1 General Safety Warnings ........................2 1.2 During Use ............................6 1.3 Packaging and Environment....................... .7 1.4 Savings Information ..........................7 2. TECHNICAL SPECIFICATIONS ....................9 2.1 Technical Specifications ........................9 3. INSTALLATION ..........................10 3.1 Removing the Transit Bolts...................... -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS Operating voltage / frequency (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0. 1Mpa Total power (W) 2100 Maximum washing capacity (dry laundry) (kg) • Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base. - Page 5 • Unplug your Washing Machine and switch off the water supply if the Washing Machine is left unused for a long time. We also recommend that you leave the door open to prevent build up of humidity inside the Washing Machine. •...
-
Page 6: During Use
Danger of Fire • Do not store inflammable liquids near your machine. • The sulphur content of paint removers may cause corrosion. Never use paint removing materials in your machine. • Never use products that contain solvents in your machine. •... -
Page 7: Packaging And Environment
NOTE: Specifications for the machine may vary depending on the product purchased. 1.3 Packaging and Environment Removal of packaging materials Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production. - Page 8 CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste.
-
Page 9: Technical Specifications
2. TECHNICAL SPECIFICATIONS 10. Transit Bolts 2.1 Technical Specifications Operating voltage / (220-240) frequency (V/ V~/50Hz Total current (A) Maximum: 1 Mpa Water Minimum : 0.1 Mpa pressure (Mpa) Total power (W) 2100 Maximum dry laundry capacity (kg) Spinning 1000 revolution (rev / min) Programme number... -
Page 10: Installation
3. INSTALLATION 3.2 Adjusting the Feet / Adjusting Adjustable Stays 3.1 Removing the Transit Bolts 1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base. • To ensure silent and vibration-free operation of your machine, install it on a firm surface. -
Page 11: Water Inlet Hose Connection
The mains cord of your washing machine is should be connected to cold water inlet • equipped with an earthed plug. This plug and red capped hose to the hot water inlet should always be inserted to an earthed (if applicable). socket of 10 amps. -
Page 12: Water Discharge Connection
3.5 Water Discharge Connection 4.1 Detergent Drawer Connect the water drain hose to a • standpipe or to the outlet elbow of a household sink, using additional equipment. • Never attempt to extend the water drain hose. Do not put the water drain hose from your •... -
Page 13: Sections
4.2 Sections 4.3 Program Dial Main wash detergent compartment: This compartment is for liquid or powder To select the desired programme, turn the detergents or limescale remover. The fluid • programme dial either clockwise or anti- detergent level plate will be supplied inside clockwise until the marker on the your machine. -
Page 14: Using Your Washing Machine
5. USING YOUR curtains or place them in a washing net or bag. WASHING MACHINE 6. Reverse textiles such as pants, knitwear, t-shirts and sweat shirts. 5.1 Preparing Your Laundry 7. Wash socks, handkerchiefs and other small items in a washing net. Can be Normal Do not bleach... -
Page 15: Adding Detergent To The Machine
weights of typical laundry items: of the detergent drawer. Do not exceed the MAX level. LAUNDRY TYPE WEIGHT (gr) • Thick softeners may cause clogging of the Towel drawer and should be diluted. It is possible to use fluid detergents in all Linen •... -
Page 16: Additional Functions
5.7 Additional Functions 3. Delay Timer(*) 1. Temperature Selection Use the washing water temperature adjustment button to alter the automatically programmed washing water temperature. Auxiliary function button 3 Delay Timer You can use this auxiliary function to delay the start time of the washing cycle for 1 to 23 hours . - Page 17 4. Anti- Allergic(*) 7. Extra Rinse(*) Auxiliary function button 3 Anti- Allergic Auxiliary function button 3 Extra Rinse You can add an additional rinse operation to your laundry using this additional function. You can add an additional rinse operation to the Your machine will carry out all rinsing steps end of the selected wash programme using this with hot water.
-
Page 18: Child Lock
9. No Spin(*) 5.8 Child Lock The Child Lock function allows you to lock the buttons so that the wash cycle you have chosen cannot be changed unintentionally. To activate child lock, press and hold button 2 and 3 simultaneously for at least 3 seconds. ‘’CL’’... -
Page 19: Programme End
5.10 Programme End Your machine will stop by itself as soon as the programme you have selected finishes. “END” will flash on the electronic display. • You can open the machine’s door and • remove the laundry. Leave the door of your machine open to •... -
Page 20: Programme Table
6. PROGRAMME TABLE Programme Laundry type / Descriptions Very dirty, cotton and flax textiles. COTTON *60-90-80-70-40 (Underwear, linen, tablecloth, towel (maximum 3,5 kg), bedclothes, etc.) Dirty cotton and flax textiles. ECO 40-60 *40 - 60 (Underwear, linen, tablecloth, towel (maximum 3,5 kg), bedclothes, etc.) Dirty cotton and flax textiles. - Page 21 NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS. (*) Washing water temperature of the programme is the factory default. (**) If your machine has the rapid wash auxiliary function, you can enable the quick wash option on the display panel and load the machine with 2 kg or less laundry to wash it in 30 minutes.
- Page 22 The most efficient programmes in terms of energy consumption are generally those that perform • at lower temperatures and longer duration. Loading the household washing machine up to the capacity indicated by the manufacturer for the • respective programmes will contribute to energy and water savings. Program duration, energy consumption and water consumption values may vary according to •...
-
Page 23: Important Informations
6.1 Important Informations Use detergents, softeners and other additives suitable for automatic washing machines only. • Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage. We recommend that periodic cleaning for washing machine every 2 months. For periodic •... -
Page 24: Cleaning And Maintenance
7. CLEANING AND 7.2 Water Inlet Filters MAINTENANCE Water inlet filters prevent dirt and foreign materials from entering your machine. We recommend that these filters are cleaned when 7.1 Warning your machine is unable to receive sufficient water, although your water supply is on and the tap is open. -
Page 25: Pump Filter
7.3 Pump Filter meet the holes on the front panel side. Close the filter cover. WARNING: The water the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance. (*) Specifications may vary depending on the machine purchased. -
Page 26: Body / Drum
8. Body / Drum any softener residue. Refit the flush stopper after cleaning and check that it is seated properly. 1. Body Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth. 2. -
Page 27: Troubleshooting
9. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: Unplug your machine from the mains power supply. •... -
Page 28: Automatic Fault Warnings And What To Do
FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following the Hard water. manufacturer’s instructions. Unsatisfactory washing result. Your laundry is too tightly packed Check that your laundry is spread out. together in the drum. As soon as the machine is The end of water drain hose is too Check that the drain hose is at a suitable height. - Page 29 DISPOSAL OF USED EQUIPMENT This device has been designed and manufactured of high-quality reusable materials and components. The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council.
