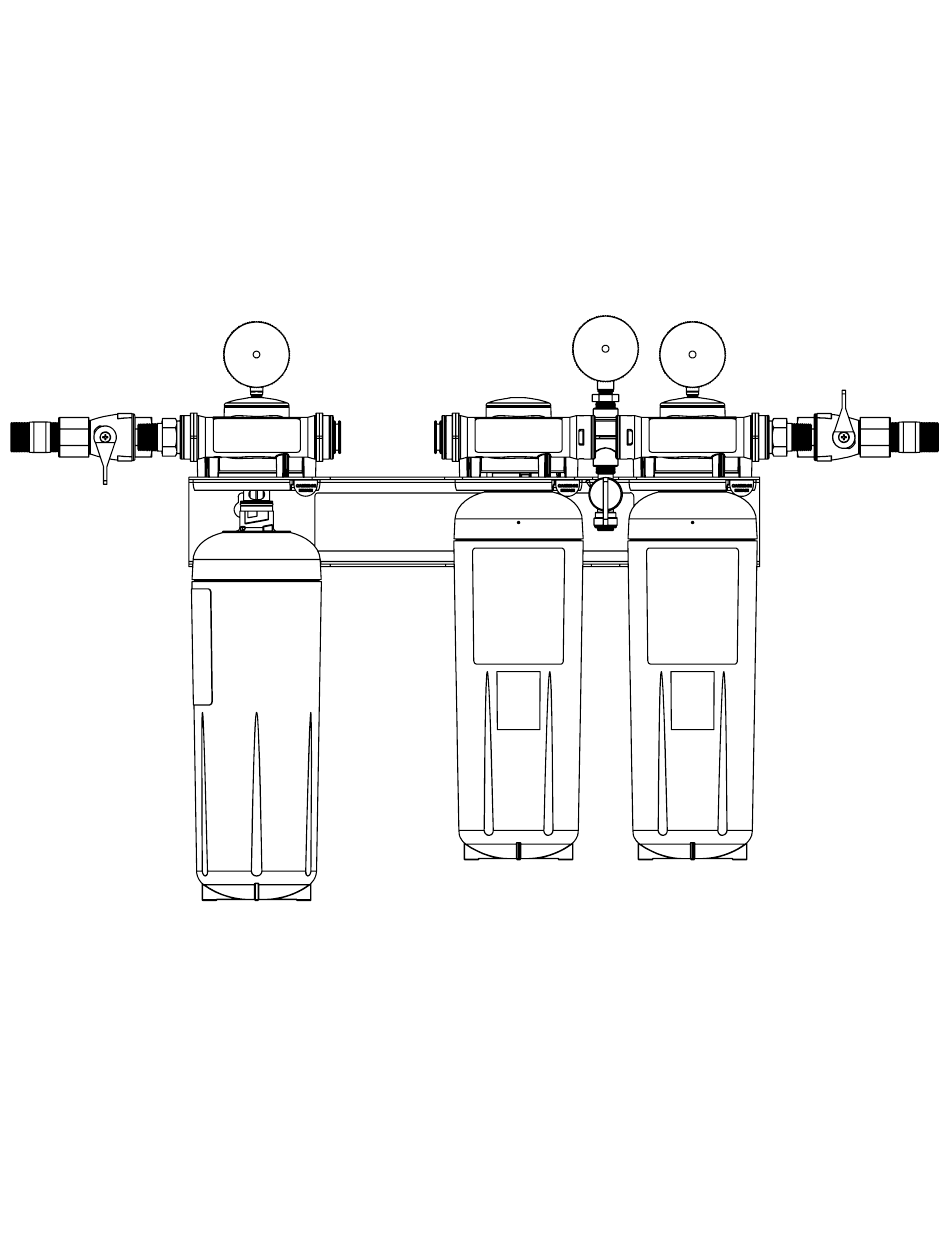

- Page 1 Water Filtration Products ™ Installation and Operation Instructions for Dual Inlet Dual Flow Manifold System DIDF260-CL Installer: Please leave this manual with owner/operator. Owner/Operator: Please retain for operation and future instructions.
- Page 2 NOTES...
-
Page 3: Safety Information
Intended use: The Dual Inlet Dual Flow Manifold System DIDF260-CL is intended for use in filtering potable water for foodservice equipment and has not been evaluated for other uses. The system is installed indoors, and must be installed by a qualified professional installer according to these installation instructions. - Page 4 CAUTION To reduce the risk associated with property damage due to water leakage: • Read and follow Use Instructions before installation and use of this system. • Installation and use MUST comply with all state and local plumbing codes. • Before starting installation, shut off main water supply and drain pipes. •...
-
Page 5: Table Of Contents
The left single cartridge (yellow label) is model HF60-S-SR5. It is critical that this cartridge be installed in the left most manifold head which also has a yellow 3M label. The cartridge is keyed such that it will not fit properly if installed in either of the other manifold heads. The media in this cartridge is a pleated nylon membrane with a time released scale inhibitor. -
Page 6: How To Use "Push-In" Fittings (Collet)
How To Use “Push-In” Fittings (Collet) CAUTION To reduce the risk associated with property damage due to water leakage: • Do not install unit if collet is missing. Contact your sales representative if collets are missing from any fittings. This product is outfitted with user friendly “push-in” connectors. Proper use of the connectors is shown in Figure 2. It is most important that the tubing selected for use with these connectors be of high quality, exact size and roundness, and with no surface nicks or scratches. -
Page 7: Equipment Installation
8. Align the tabs on the HF60-S-SR5 cartridge with the slots in the retaining plate of the head on the left hand manifold head (NOTE: Head has yellow 3M label adhered to it). Insert the cartridge into the head and turn the cartridge to the right until a click sound is heard; the click indicates that the cartridge is properly engaged. -
Page 8: Cartridge Change-Out Procedure
IMPORTANT NOTE: The ice cartridge (Model HF60-S-SR5) has a yellow label and will only fit into the head on the left side of the manifold (head has a yellow 3M label). The beverage cartridges (Model HF60-CL) will only fit into the heads on the right side of the manifold (heads have a blue 3M label). -
Page 9: Troubleshooting
DIDF260-CL System Pre-Start-Up procedure: 1. Turn ice water inlet valve ON. 2. Remove trapped air in the ice line by opening and closing valve downstream. 3. Turn beverage water inlet valve ON. 4. Remove trap air in the beverage line by opening and closing the beverage outlet venting valve. -
Page 10: Replacement Parts Listing
Replacement Parts Listing Item Part no. Description Qty* Function 60-2333700 Vent Valve Release trapped air 5617103 HF60-S-SR5 Cartridge Water for ice 5625901 HF60-CL Cartridge Water for beverage 8500555 Inlet Pressure Gauge Monitor inlet water pressure 8500556 Outlet Pressure Gauge Monitor outlet water pressure 50-91401 Fitting Retention Clip &... -
Page 11: Limited Warranty
(1) year from the date of purchase. This warranty does not cover failures resulting from abuse, misuse, alteration or damage not caused by 3M Purification Inc. or failure to follow installation and use instructions. No warranty is given as to the service life of any filter cartridge or membrane as it will vary with local water conditions and water consumption. - Page 12 INFORMATION IS SUPPLIED UPON THE CONDITION THAT THE PERSONS RECEIVING THE SAME WILL MAKE THEIR OWN DETERMINATION AS TO ITS SUITABILITY FOR THEIR USE. IN NO EVENT WILL 3M PURIFICATION INC. BE RESPONSIBLE FOR DAMAGES OF ANY NATURE WHATSOEVER RESULTING FROM THE USE OF OR RELIANCE UPON INFORMATION.
