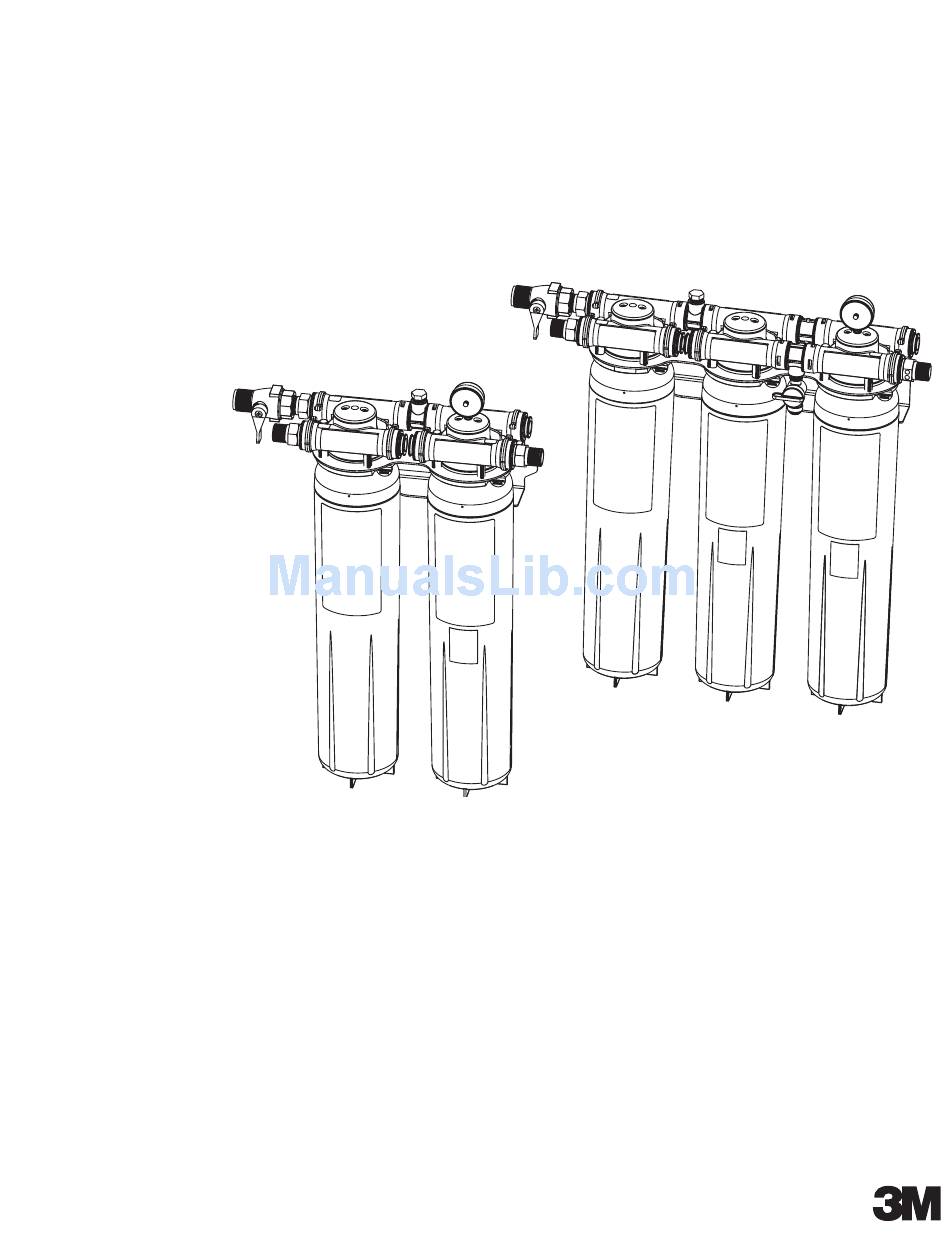

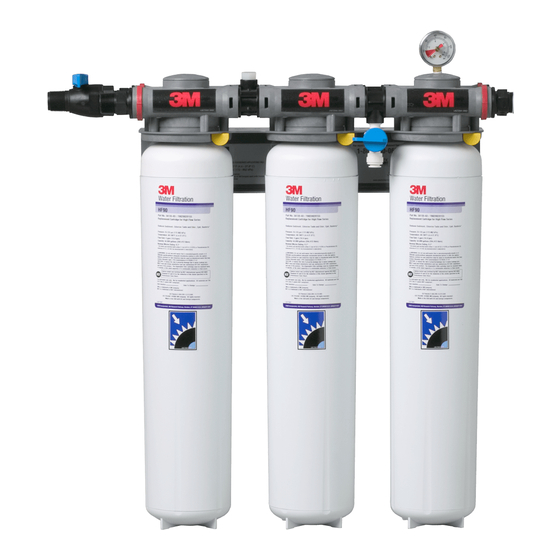

  • Page 1 Water Filtration Products Dual Flow Manifold Systems Instruction Manual For DF1XX and DF2XX High Flow Series manifolds and water filtration systems Installer: Please leave this manual with owner/operator.
  • Page 2: Table Of Contents

    Water Filtration Products ™ Table of Contents Safety Information ............................2 Warning Statements ............................2 Caution/Important Notes ..........................3 DF Manifolds and Systems ..........................3 Inlet and Outlet Connections ........................3 Product Dimensions .............................4 How to Use “Push-in” Connectors ........................4 How to Use “Inlet/Outlet” Fitting Retention Clips ...................4 Equipment Installation ..........................5 Equipment Start-up Procedure ........................6 Cartridge Change-out Procedure ........................6...
  • Page 3: Caution/Important Notes

    The left-side single cartridge is the same for both DF1XX and DF2XX manifolds. The model number is HF90-S-SR5. This is the only cartridge filter that will fit into the left-side head in either the DF1XX or the DF2XX manifold. The media in this cartridge is a pleated nylon membrane with a scale inhibitor.
  • Page 4: Product Dimensions

    Product Dimensions 16 7/8" 5 1/8" 22 7/8" 5 3/8" (42.9 cm) (13.0 cm) (58.10 cm) (13.7 cm) 24 1/16" 24 1/16" (61.1 cm) (61.1 cm) Minimum of 3" (7.6 cm) Minimum of 3" (7.6 cm) For Cartridge Change For Cartridge Change How to Use “Push-in”...
  • Page 5: Equipment Installation

    7. Align the tabs of the HF90-S-SR5 cartridge with the slots in the retaining plate of the head on the left-hand side of the manifold, and insert the cartridge into the manifold. Turn the cartridge to the right until a clicking sound is heard; the clicking sound indicates the cartridge is properly engaged. 8. Repeat Steps 6 and 7 for the beverage cartridges (DF1XX has one, DF2XX has two) onto the right-hand head(s) of the manifold. IMPORTANT NOTE: The beverage cartridge(s) will not fit into the left-hand head of the manifold. Their connection only matches the head(s) on the right-hand side of the manifold. Equipment Start-up Procedure 1. Turn on incoming water to system.
  • Page 6: Cartridge Change-Out Procedure

    Cartridge Change-out Procedure CAUTION To reduce the risk associated with property damage due to water leakage: • The disposable filter cartridge MUST be replaced every 12 months or at the rated capacity or if a noticeable reduction in flow rate occurs. Cartridges will need to be changed every 6-12 months or when low pressure is indicated on the manifold’s pressure gauge, whichever occurs first.
  • Page 7: Parts Listing

    Replacement Parts Listing Item Part no. Description Qty* Function 6228501 DF1xx Manifold Assembly, complete 6228401 DF2xx Manifold Assembly, complete 60-2333700 Vent Valve Release trapped air 5617107 HF90-S-SR5 Cartridge Water for ice See catalog Replacement Cartridge (2) Water for beverage 8500549 Pressure gauge Monitor outlet water pressure...
  • Page 8: Warranty

    3M Purification Inc. or failure to follow installation and use instructions. No warranty is given as to the service life of any filter cartridge or membrane as it will vary with local water conditions and consumption. 3M PU- RIFICATION INC.
