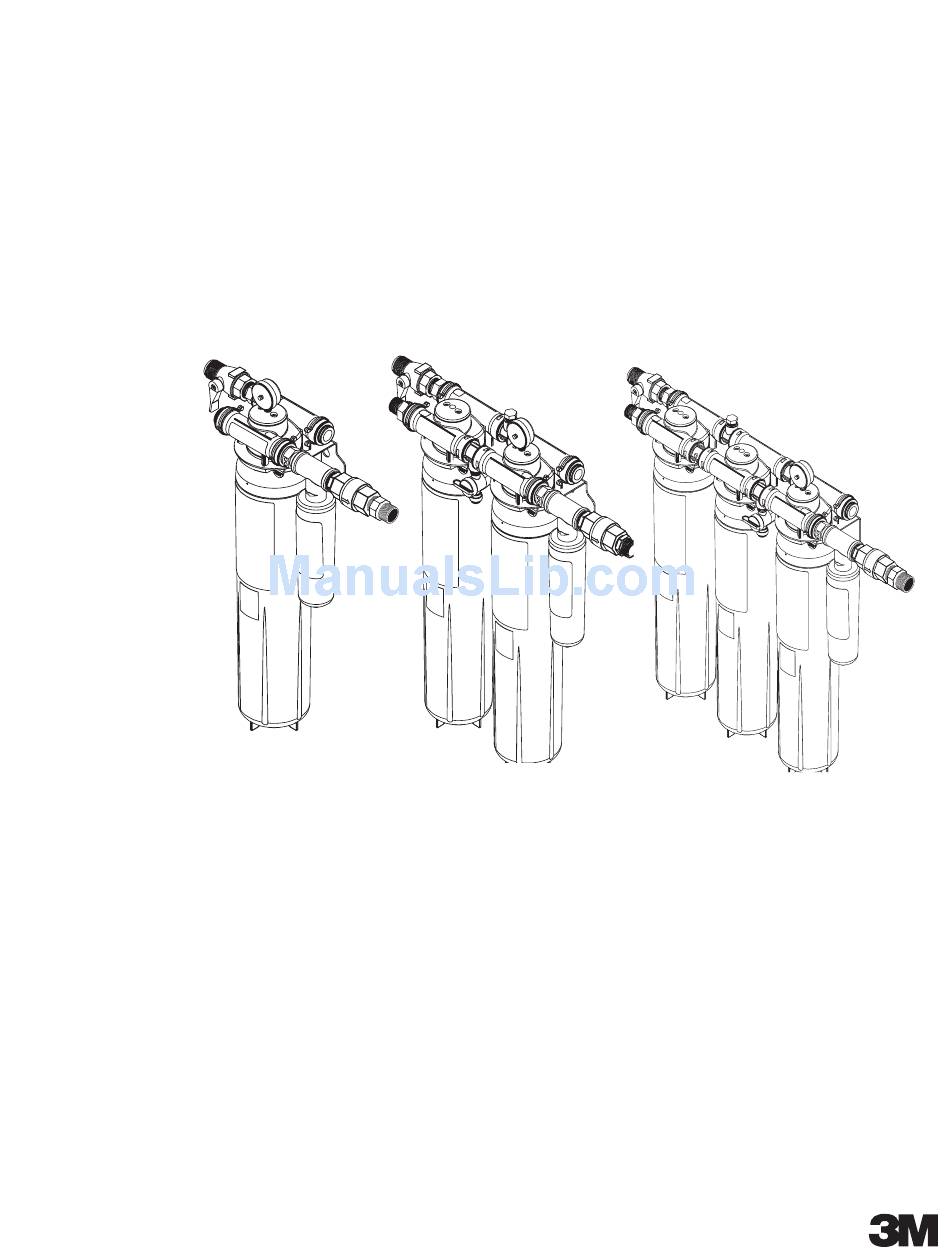

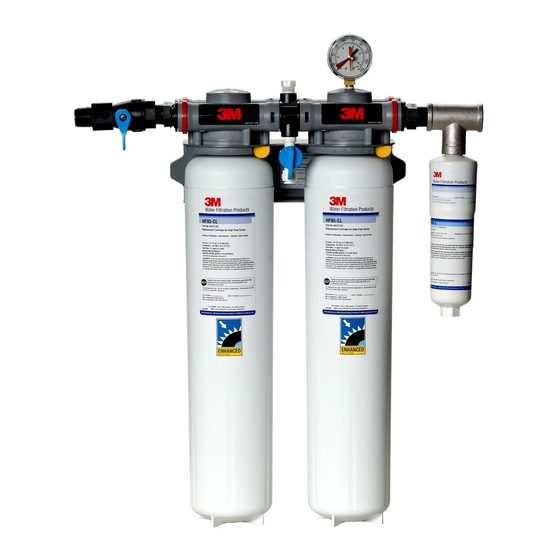

- Page 1 Water Filtration Products ™ Dual Port Manifold Water Filtration Systems Instruction Manual For DP1XX, DP2XX and DP3XX High Flow Series Water Filtration Systems Installer: Please leave this manual with owner/operator.
-
Page 2: Table Of Contents
Water Filtration Products ™ Table of Contents Safety Information ............................2 Warning Statements ............................2 Caution/Important Notes ..........................3 Dual Port Manifolds and Systems ........................3 Product Dimensions ............................4 Inlet and Outlet Connections ........................5 How to Use “Push-in” Connectors ........................5 How to Use “Inlet/Outlet” Fitting Retention Clips ...................5 Equipment Installation ..........................5 Equipment Start-up Procedure ........................6 Cartridge Change-out Procedure ........................7... -
Page 3: Caution/Important Notes
CAUTION To reduce the risk associated with property damage due to water leakage: • Read and follow Use Instructions before installation and use of this system. • Installation and Use MUST comply with all state and local plumbing codes. • Protect from freezing, remove filter cartridge when temperatures are expected to drop below 40°F (4.4°C); •... -
Page 4: Product Dimensions
Product Dimensions 5 7/16” 17 1/4 “ DP1XX Water Filtration System (13.8 cm) (43.8 cm) HF9X Series Cartridge 24 1/16" (61.1 cm) HF6X Series Cartridge 18 1/16" (45.9 cm) HF4X Series Cartridge 15 1/16" ((38.3 cm) 3" (7.6 cm) Minimum... -
Page 5: Inlet And Outlet Connections
Inlet and Outlet Connections The water inlet is on the left side rear and the outlets are on both sides and are identified with labels. The fitting size is 3/4” NPT (Male). Built-in check valves (non-return) are incorporated into both outlets. How to Use “Push-in” Connectors CAUTION To reduce the risk associated with property damage due to water leakage: •... -
Page 6: Equipment Start-Up Procedure
IMPORTANT NOTES • Failure to follow instructions may void warranty. • Allow a minimum of 3 in. (7.6 cm) clear space under filter to facilitate cartridge change. • Install with the inlet and outlet ports as labeled. Make sure not to reverse connections. • Some local codes may require the use of a licensed plumber or certified installer when disrupting a potable water line. CAUTION To reduce the risk associated with property damage due to water leakage: • Any non-metallic fittings used in the installations must be of adequate rating for the line pressure. Manifolds may be used with metal or non-metallic piping systems. 1. Shut off incoming cold water supply. 2. Select the installation location. IMPORTANT NOTE: Allow a minimum of 3 in (7.6 cm) of space below the cartridges for change-outs. -
Page 7: Cartridge Change-Out Procedure
2. Depressurize system. Use plastic tubing and and vent valve for for DP2XX and DP3XX manifolds. There is no vent valve on DP1XX manifold. 4. Push tab to release cartridge locking mechanism while simultaneously rotating cartridge slightly to the left. -
Page 8: Parts Listing
DP1XX Replacement Parts Listing Item Part no. Description Qty* Function 6228603 DP1XX Single Manifold Assembly, complete See catalog Replacement Cartridge Water filtration 8500549 Pressure gauge Monitor outlet water pressure 85-8528 Clip Retain inlet/outlet fittings 63597320 o-ring Seal inlet/outlet fittings 6225005 Inlet fitting kit –left rear Inlet fitting with ball valve... - Page 9 DP2XX Replacement Parts Listing Item Part no. Description Qty* Function 6228503 DP2XX Twin Manifold Assembly, complete 60-2333700 Vent Valve Release trapped air See catalog Replacement Cartridges Water filtration 8500549 Pressure gauge Monitor outlet water pressure 85-8528 Clip Retain inlet/outlet fittings 63597320 o-ring Seal inlet/outlet fittings 6225005...
- Page 10 Item Part no. Description Qty* Function 6228403 DP3XX Triple Manifold Assembly, complete 60-2333700 Vent Valve Release trapped air See catalog Replacement Cartridges Water filtration 8500549 Pressure gauge Monitor outlet water pressure 85-8528 Clip Retain inlet/outlet fittings 63597320 o-ring Seal inlet/outlet fittings 6225005 Inlet fitting kit –left rear Inlet fitting with ball valve...
-
Page 11: Warranty
Limited Warranty Seller warrants its equipment against defects in workmanship and material for a period of 12 months from date of shipment from the factory under normal use and service and otherwise when such equipment is used in accordance with instructions furnished by Seller and for purposes disclosed in writing at the time of purchase, if any. Any unauthorized alteration or modification of the equipment by Buyer will void this warranty. Seller’s liability under this warranty shall be limited to the replacement or repair, F.O.B. - Page 12 CUNO Incorporated, a 3M Company 400 Research Parkway Meriden, CT 06450, USA Toll Free: 1.888.218.CUNO Worldwide: 203.237.5541 © 2008 3M Company. All rights reserved. 3M and CUNO are trademarks of 3M Company used under license. Fax: 203.238.8701 INSTR4325 1008 www.cunofoodservice.com...
