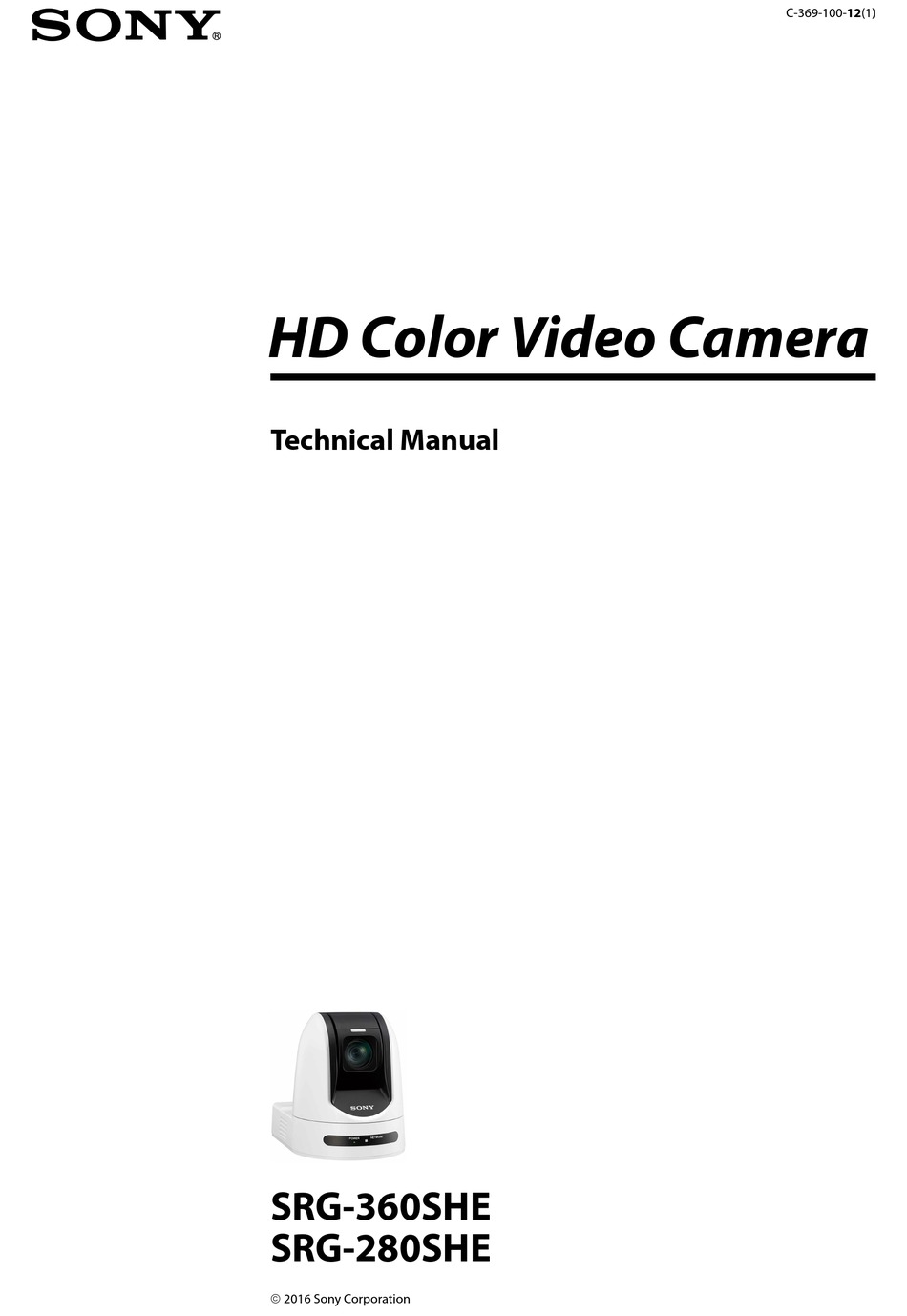

- Page 1 C-369-100-12(1) HD Color Video Camera Technical Manual SRG-360SHE SRG-280SHE 2016 Sony Corporation...
-
Page 2: Table Of Contents
Table of Contents Basic Functions ..............3 Overview of Functions ..............3 Initial Settings and Preset ............10 Mode Condition ................11 Command List ..............16 VISCA RS-422 Commands ............16 IP Related Setting Command ............. 26 SRG-360SHE/SRG-280SHE Commands ........28... -
Page 3: Basic Functions
(F1.6 to F4.7) distance is 10 mm at the optical wide end and 1200 mm at the optical tele end. SRG-280SHE - Normal AF Mode Employs 26× optical zoom lens. Up to ×312 zoom is This is the normal mode for AF operations. - Page 4 • Manual Focus Mode Automatic Exposure Mode Manual Focus has both a Standard Mode and a A variety of AE functions are available for optimal Variable Mode. Standard Mode focuses at a fixed rate output of subjects in lighting conditions that range of speed.
- Page 5 Parameter 59.94/29.97 50/25 mode Gain mode IRIS 1/10000 1/10000 OPEN 1/6000 1/6000 IRIS curve 1/4000 1/3500 1/3000 1/2500 1/2000 1/1750 Gain curve 1/1500 1/1250 1/1000 1/1000 1/725 1/600 CLOSE 1/500 1/425 1/350 1/300 Dark Bright 1/250 1/215 Controlled Controlled by IRIS 1/180 1/150 by gain...
- Page 6 Wide Dynamic Range Mode (WD) Exposure Compensation The Wide Dynamic Range mode is a function for Exposure compensation is a function which offsets the dividing an image into several blocks and correcting internal reference brightness level used in the AE blocked-up shadows and blown-out highlights in mode, by steps of 1.5 dB.
- Page 7 High Sensitivity Mode Low-Illumination Chroma Suppress Mode In this mode, higher sensitivity gain is applied as You can configure a chroma suppress mode for low- standard gain increases, reaching a gain level at MAX illumination conditions. This can be useful when color gain of up to 4x the standard gain.
- Page 8 Camera ID When Auto Slow Shutter is Off (initial setting) The ID can be set up to 65,536 (0000 to FFFF). As this Shutter 1/60 sec will be memorized in the nonvolatile memory inside, IRIS data will be saved. OPEN Picture Effect GAIN IRIS...
- Page 9 Others The settings stored using this function are recalled when the power is turned on. STANDBY Sends the power off command. Or when the power is turned For setting items, see the “Initial Settings and Preset” off using the infrared remote commander, the camera section on page 10.
-
Page 10: Initial Settings And Preset
Initial Settings and Preset • The initial values are the factory settings. • When the power is turned on, this unit starts operation with the settings stored in preset 1. • In “Preset 1 to 256”, the items that are preserved even after the power from the camera is turned off are indicated by a circle (), and the items that are not preserved are indicated by a cross (). -
Page 16: Command List
360SHE/SRG-280SHE devices, use VISCA over IP. For the use of VISCA over IP, refer to “VISCA over IP” (page 22)............................................... VISCA is a protocol developed by Sony for controlling a consumer’s camcorder. “VISCA” is a trademark of Sony Corporation. - Page 17 VISCA Communication Specifications VISCA packet structure The basic unit of VISCA communication is called a packet (Fig. 2). The first byte of the packet is called the header and comprises the sender’s and receiver’s addresses. The value of the header is fixed as 81h, as only one camera can be operated from the controller via the RS-422 connection for this camera.
- Page 18 Timing Chart Responses for commands and inquiries If two or more commands are to be sent successively, Acknowledge message wait for a reply command (an Acknowledge or error A message returned by this unit when it receives a message for a general command, and an inquiry packet command.
- Page 19 VISCA Device Setting Command Socket number This unit has two sets of sockets (buffers) for Before starting control of this unit, be sure to send the commands, so that up to two commands including the Address command and the IF_Clear command using commands currently being executed can be received.
- Page 20 Y0 50 GG GG HH HH JJ JJ KK FF GGGG = Vender ID (0001: Sony) HHHH = Model ID (0604: SRG-360SHE) (0605: SRG-280SHE) JJJJ = ROM revision KK = Maximum socket # (02) Locked to X=1 for this camera. Locked to Y=9 for this camera.
- Page 21 VISCA Camera-Issued Messages Acknowledge/Completion Messages Command Command Message Comments Acknowledge z0 4y FF Returned when the command is accepted. (y: Socket No.) Completion z0 5y FF Returned when the command has been executed. (y: Socket No.) Locked to Z=9 for this camera Error Messages Command Command Message...
- Page 22 VISCA over IP VISCA Controller VISCA Equipment Overview of VISCA over IP VISCA over IP allows you to control this unit from the controller with the IP communication function via the LAN by using VISCA. You can connect up to 5 controllers simultaneously on the network.
- Page 23 • Address Communication method of VISCA over IP Sets the address of the peripheral device, and does not Communication method return a reply to the controller. While using VISCA VISCA over IP can process the VISCA communication over IP, the address command is not sent from the between the controllers and peripheral devices using controller because a Network Change command from the messages that can be identified on the LAN, and...
- Page 24 Payload type Stores the value (Byte 0 and Byte 1) of the following table on the payload division. Name Value (Byte 0) Value (Byte 1) Description VISCA command Stores the VISCA command. VISCA inquiry Stores the VISCA inquiry. VISCA reply Stores the reply for the VISCA command and VISCA inquiry, or VISCA device setting command.
- Page 25 If time out occurs on the controller, you can infer the lost message and state of the peripheral device by retransmitting the message using the same sequence number. The following table shows the received message and status by retransmission of the lost message, and the reference of correspondence after retransmission for each case. (Except for the case that a time out occurs for reasons other than loss of message.) Lost message Received message for...
-
Page 26: Ip Related Setting Command
IP Related Setting Timing chart Command Controller Peripheral device The following commands are provided for setting the IP address and name of this unit. Time out Name Description Setting Protocol: The controller inquires the Inquiry network setting for the camera. Setting Protocol: The camera replies according to Inquiry reply... - Page 27 Command Data Inquiry ENQ:network Broadcast address (255.255.255.255) Specified port number (52380) Inquiry reply MAC:**-**-**-**-**-** Broadcast address MODEL:IPCARD (255.255.255.255) Specified port number SOFTVERSION:**.**.** (52380) IPADR:***.***.***.*** MASK:***.***.***.*** GATEWAY:***.***.***.*** NAME:xxxxxxxx WRITE:on Network setting MAC:**-**-**-**-**-** Broadcast address IPADR:***.***.***.*** (255.255.255.255) Specified port number MASK:***.***.***.*** (52380) GATEWAY:***.***.***.*** 1) 4) NAME:xxxxxxxx...
-
Page 28: Srg-360She/Srg-280She Commands
SRG-360SHE/SRG-280SHE Commands Execution Command List (1/4) Command Set Command Command Packet Comments AddressSet Broardcast 88 30 01 FF Address setting IF_Clear Broardcast 88 01 00 01 FF I/F Clear CommandCancel — 8x 2p FF p: Socket No. (=1or2) CAM_Power 8x 01 04 00 02 FF... - Page 29 Execution Command List (2/4) Command Set Command Command Packet Comments CAM_AE Full Auto 8x 01 04 39 00 FF Automatic Exposure mode Manual 8x 01 04 39 03 FF Manual Control mode Shutter Priority 8x 01 04 39 0A FF Shutter priority Exposure mode Iris Priority 8x 01 04 39 0B FF...
- Page 30 Execution Command List (3/4) Command Set Command Command Packet Comments CAM_ICR 8x 01 04 01 02 FF Infrared Mode ON/OFF 8x 01 04 01 03 FF CAM_AutoICR 8x 01 04 51 02 FF Auto Infrared mode ON/OFF 8x 01 04 51 03 FF Threshold 8x 01 04 21 00 00 0p 0q FF pq: ICR ONOFF threshold level...
- Page 31 Execution Command List (4/4) Command Set Command Command Packet Comments Pan-tiltDrive 8x 01 06 01 VV WW 03 01 FF VV: Pan speed setting 0x01 (low speed) to 0x18 (high speed) Down 8x 01 06 01 VV WW 03 02 FF WW: Tilt speed setting 0x01 (low speed) to 0x18 Left 8x 01 06 01 VV WW 01 03 FF...
- Page 32 Inquiry Command List (1/2) Inquiry Command Command Packet Inquiry Packet Comments CAM_PowerInq 8x 09 04 00 FF y0 50 02 FF y0 50 03 FF CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position CAM_DZoomModeInq 8x 09 04 06 FF y0 50 02 FF...
- Page 33 8x 09 00 02 FF y0 50 00 01 mnpq: Model ID (0604) SRG-360SHE mn pq rs tu vw FF mnpq: Model ID (0605) SRG-280SHE rstu: ROM version vw: Socket Number (=02) see page 19. CAM_Stabilizer ModeInq 8x 09 04 34 FF...
- Page 34 Block Inquiry Command List Lens Control System Inquiry Commands ....Command Packet 8x 09 7E 7E 00 FF Inquiry Packet Comments Comments Comments Byte Byte Byte Destination Address Source Address Focus Near Limit (H) 0 Completion Message (50h) AF Mode (0:Normal, 1:Interval, 2:Zoom Trigger) AF Sensitivity (1:Normal, 0:Low) Focus Near Limit (L)
- Page 35 Camera Control System Inquiry Commands ....Command Packet 8x 09 7E 7E 01 FF Inquiry Packet Comments Comments Comments Byte Byte Byte Destination Address Iris Position Source Address WB Mode 0 Completion Message (50h) Aperture Gain Gain Position Exposure Mode Bright Position R Gain (H) HighResolution (1:On,...
- Page 36 Other Inquiry Commands .........Command Packet 8x 09 7E 7E 02 FF Inquiry Packet Comments Comments Comments Byte Byte Byte Destination Address Source Address System (1:1/50, 1/25, 0:1/59.94, 0 Completion Message (50h) 1/29.97) Auto ICR (1:On, 0:Off) Camera ID (HH) Power (1:On, 0:Off) 1 Terminator (FFh) Stabilizer (1:On, 0:Off) Stabilizer Hold (1:Hold, 0:Off)
- Page 37 Enlargement Function Query Command ....Command Packet 8x 09 7E 7E 03 FF Inquiry Packet Comments Comments Comments Byte Byte Byte Destination Address Source Address 0 Completion Message (50h) Gamma High Sensitivity mode (1: ON, 0: OFF) NR Level Chroma Suppress Gain Limit 1 Terminator (FFh) Color Gain (Master)
- Page 38 VISCA Command Setting Values Gain +43dB Exposure control (1/2) +39dB +36dB 59.94/29.97 50/25 mode mode +33dB Shutter Speed 1/10000 1/10000 +30dB 1/6000 1/6000 +27dB 1/4000 1/3500 +24dB 1/3000 1/2500 +21dB 1/2000 1/1750 +18dB 1/1500 1/1250 +15dB 1/1000 1/1000 +12dB 1/725 1/600 +9dB 1/500...
- Page 39 Exposure control (2/2) Optical Zoom Ratio and Zoom Position (for SRG-360SHE reference) IRIS GAIN Zoom Position: 0000 (Wide end) to 4000 (Tele end) Bright F1.6 +43dB F1.6 +39dB F1.6 +36dB Optical Zoom Optical Zoom F1.6 +33dB Ratio Position Data F1.6 +30dB ×1 0000...
- Page 40 Optical Zoom Ratio and Zoom Position Focus NEAR limit and focus distance (for SRG-280SHE reference) Focus position: 1000 (Far end) to F000 (Near end) Zoom Position: 0000 (Wide) to 4000 (Tele) NEAR Limit Focus Distance Optical Zoom Optical Zoom 1000...
- Page 41 Others Pan/Tilt Speed (Pan/Tilt Slow Mode= On) Speed (deg/sec) AF Active Time Parameter Tilt AF Interval Time 0.30 0.30 R Gain 0.50 0.50 B Gain 0.70 0.70 Aperture Level 0.80 0.80 AE Response 0.90 0.90 AutoICR ON OFF Threshold Level Chroma Suppress setting level Color Gain setting level Color Hue setting level...
- Page 42 Pan/Tilt Status Code List – – – – 0 – – – – – – 1 A Pan movement all the way to the left – – – – – – – – 0 – – – – – 1 – A Pan movement all the way to the right –...
