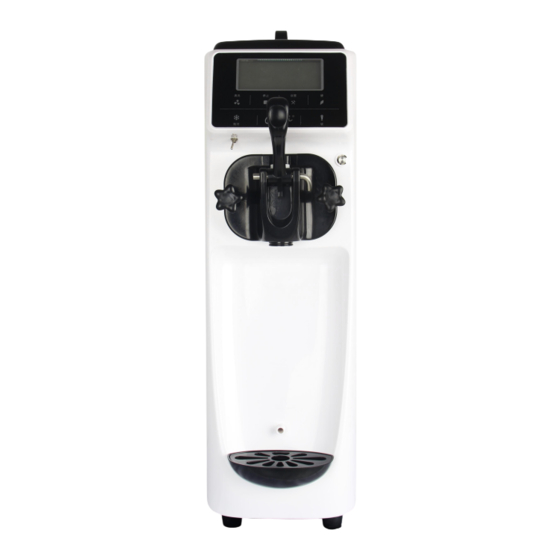

- Page 1 User Manual ST16 series instruction Please read the instruction carefully before operation. Please keep this manual for random reference.
-
Page 2: Table Of Contents
目 录 CONTENTS SAFETY PRECAUTIONS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · PLACEMENT PRECAUTIONS ·... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read and understand “Safety Precautions”carefully before operation. Please comply with the following content which are very important with safety. The meaning of the sings are as follows. Warning Using in incorrect way may lead to bad injury or death Attention Using in incorrect way may lead to thing damages or human injury The damages involve house, family property, livestock and pets and wide range damages... -
Page 4: Placement Precautions
PLACEMENT PRECAUTIONS Warning Don't put in moisture or wet place or it may Please evenly and solid ground or it'll topple, lead to controller short circuit. be noisy or too much shake. Prohibition Place evenly Don't use in the place with vitriol like hot spring earth or salt like near sea or bay, or it may lead to inner corrosion or trouble. -
Page 5: Connection Precautions
CONNECTION PRECAUTIONS Warning Connect the ice cream machine to a special Entrust electrical construction unit to connect the ground wire, or may lead or electric shock socket(the power supply is consistent with when there's trouble or electric leakage. The famous brand) Grounded Warning Don't damage power line, or process, gather... -
Page 6: Name's Of Parts
NAMES' OF PARTS... - Page 7 附带零部件 D seals 1 for free 1 for free Seals for beater Vaseline O seals 2 for free 1 for free...
-
Page 8: Name And Function Of Operating Parts
NAME AND FUNCTION OF OPERATING PARTS It's good when there's a “tick tack”sound when press button except for SET button. (To prevent mistake, press button need to put forth little strength). Before switch to different button, press stop first. Safe protection function: For safety, please don't press any button without install the water outlet valve. - Page 9 Detail Information of 5 inch Display Represents machine is in clean state. Only beater in the cylinder are stirring, pour water can clean the machine. Represents machine is in standby mode. Long press SET can set parameter or others. Represents back temperature. There will be alarm when it lower than -25°C but will not impact capability of machine.
- Page 10 SET OF Parameters In the standby mode, press "SET" for 5s , this part will show the setting for softness/Hardness.. Again press "SET" for 5s, it will show the "stop times which is set for stop times after 99% shape rate. Again press "SET"...
- Page 11 Detail Information of 7 inch Display Freezing: begin to make ice cream Play: common operation introduction Keep Fresh: pre-cooling function of hopper, Wash: press it when need cleaning, only beater keeping material fresh stirs Defrosting: make the material soft and melted Set: some settings of parameter Refrigeration Interface...
- Page 12 Refrigeration Interface Fresh interface...
- Page 13 Defrost interface Cleaning interface...
- Page 14 Setup interface Setup interface...
- Page 15 Ice Cream Health Matters Warning To use raw materials for hygiene, otherwise Do not put the ice cream that has been it may be hazardous to health. taken out again in the pot. The material coming out maybe contaminated and endanger the health of the customer.
- Page 16 Health Aspects of the Important Issues Discharge door Please carefully clean the ice cream that sticks to the plastic head outlet and fully sterilize with the disinfectant. Spray 3-5 times of disinfectant from the plastic head and remove the sticky ice cream. 机器本身...
- Page 17 Hygiene of Ice Cream (continued) Quick-wear parts Even on the seal even if the naked eye can not see the scars, may also lead to "ice cream leakage", " sterilization" and other issues, so please take three months for the general replacement period, please replace the new product on a regular basis.
- Page 18 Precautions before use Non-maintenance personnel shall No professional staff guidance shall not be dismantle and modify the machine. Otherwise commissioned. Otherwise it may cause a it may cause a malfunction of the machine malfunction of the machine and a safety and a safety accident accident Prohibition...
- Page 19 Part Cleaning Method For the first time you use or use it for a long time, please clean the parts before use. Please use food detergent and cleaning brush to clean the parts that have been dismantled. User note Do not damage parts or lose parts during operation Do not wash the resin part with hot water or dishwasher.
- Page 20 Assembly method of parts the assembly of the valve pole the assembly of the valve pole 1. Install O-rings and seals on the two rods, and do not need to be dismounted, such as dismantling, reassemble as shown. When assembling an I-shaped seal ring, apply for a little lubricant to the seal head.
- Page 21 The assembly of beater coupling 1. smudge vaseline to rubber parts before installing parts. 2. install coupling Discharge door assembly 1. Insert the valve pole into the water outlet valve, and Groove direction outward （ before the installation, apply Vaseline to valve pole)； 2.
-
Page 22: How To Ihnstall Parts To The Machine
HOW TO IHNSTALL PARTS TO THE MACHINE Warning When assembling and removing components, Operation disinfection of opponents of turn off the switch to control the power fingers. Otherwise it may endanger human switch. Otherwise it may accidentally touch health. the start of the machine causing injury. Sterilization shut down 1.Make sure that the control power switch is turned off. - Page 23 3. Insert the stirrer into the freezing cylinder and slowly rotate the stirrer into the quadrilateral interface of the gear unit. Insert the evaporator seal into the beater hole, , pass the plastic head through the inner hole of the beater and the two plastic head screws, and twist the single-head plastic head fastening bolt clockwise to fix the plastic head.
- Page 24 5.Put the plastic beater part to the agitator in the hopper. 6. Install the water drip tray to the tank, and then put the water drip tray lid to the top of drip tray.
- Page 25 Ice cream machine cleaning method Please clean parts with food detergent. *For details, please read“page 17”. 2 Please install the clean parts on the ice cream machine. * For details, please read“page 17-18”. 3 Please open the ice cream machine control power switch. After opening the ice cream machine into standby.
- Page 26 Warning Do not let the water overflow. Doing so may cause leakage or electric shock in the machine. Prohibition 5 Please wash the water. After cleaning for 3-5 minutes, pull the three handles down, then catch the water with a bucket and repeat the wash for 2-4 times.( cannot be cleaned with the last washed water).
- Page 27 Raw material filled Warning Note Do not use the material other than ice cream Do not put your fingers in the feedstock raw materials. supply. Otherwise it may cause machine malfunction. Doing so may result in finger injury or machine malfunction. Prohibition Prohibition 1 Prepare the right amount of raw materials.
- Page 28 Pull down handle, 600cc material from measuring cup , taken out and poured back to the hopper. Note: Please use the measuring cup that has been sterilized by washing and disinfecting solution. Please cover the lid. Do not add more ingredients than the top cover in the hopper. 3 Make sure that the plastic water outlet head screws are loosen.
-
Page 29: Daily Operation
DAILY OPERATION Before 1. Please put the food detergent into the hopper with water for cleaning. *For details, please read“page 17”. * For details of the material, please read“page 25~26”. Please sterilize the plastic head outlet. 2. Make ice cream The machine will stop automatically when the shape rate reaches 99%, that mean the ice cream have already. - Page 30 DAILY OPERATION Working Warning When the machine is abnormal, cut off ,stop The cylinder must be filled with material running, otherwise it may cause an accident. when freezing, otherwise will freeze so hard and will damage the beater. Cut off Double hopper with material Do not put your fingers into the feedstock.
- Page 31 DAILY OPERATION Working About Puffing rate Puffing rate refers to the air content of ice cream, is relative to the material , the ratio of the column, expressed in %. Ice cream in the cylinder during the cooling process, the volume of the expansion. Mixed with air to form a creamy state.
- Page 32 DAILY OPERATION After Warning Daily sterilization, otherwise the bacterial will bad for health. sterilization 1Please put all the remaining material in the cylinder out , and clean it with the water. 2 Clean the plastic head and sterilize it.
- Page 33 4 Please do not add the material near closing, can start pre-cooling function if have User note Be sure to confirm that the plastic head is fixed with loose plastic screws . if loose , can cause raw material leakage. Please cover the hopper lid.
- Page 34 ONE TIME EVERY TWO WEEKS Warning When assembling or removing parts, turn off Do not let water out from hopper, otherwise it power switch first, otherwise it may cause may damage health. injury by touch the switch accidentally. Sterilization Prohibition Dismantle and clean every two weeks, otherwise the bacterial will cause bad health.
- Page 35 Every two weeks operation for the first time Disassembly and cleaning of parts（page13~14） Disassemble to the smallest. Part installed on the machine（page 15~18） Turn off the power Machine cleaning（page 19~20） Filling of material（page 21~23） put the material to the hopper. Working（...
-
Page 36: Matainance Instruciton
MATAINANCE INSTRUCITON Warning When servicing, turn off power, otherwise it Do not spill water directly on the machine, it may cause injury by touch the switch will cause electric shock. accidentally. Prohibition Turn off Do not use the power cord if it's damaged, otherwise a short circuit may cause a fire or electric shock. - Page 37 1 Surface maintenance please wipe with a dry, soft cloth. If it's serious, please clean with food detergent in warm water, wipe the dirt and the residual detergent. The button of the machine, the base is vulnerable, please to be cleaned. User note Please do not use polishing powder, gasoline, water or hot water.
- Page 38 3 Clean the condenser The condenser will be sticky dust and affect heat dissipation and freezing after work for a long times, （ Performance：bad production or difficult to be shaped ice cream at the same times），Please clean it once every three month（In poor environment, please clean each month），The best is to be cleaned by professional workers, Please turn off the power before cleaning and pay to attention to condenser fins.
-
Page 39: Precations Will Not Use For Along Time
PRECATIONS WILL NOT USE FOR A LONG TIME Warning Please unplug the power when you are not using it for a long time, otherwise it may reduce the life of power cord. Unplug the power supply Note Please cover the machine with plastic film Please pay attention to the drainage when when you are not using it for a long times,... -
Page 40: Precautions Before Enterusting Repair
PRECAUTIONS BEFORE ENTERUSTING REPAIR Warning Turn off the power when the machine is Non-maintenance personnel shall not be abnormal, otherwise it may some wrong with dismantled and repaired, otherwise it will the machine cause a fire or some problem of the machine Prohibition Unplug the power The problem occurred when working，please stop and check the faults list. -
Page 41: In Case Of The Follwing
IN CASE OF THE FOLLWING(Faults and Handling) The machine you received is control by computer program with mechanical transmission and efficient refrigeration system! You must arrange the professional staff to operate the machine and maintain it. At the same time, please know clearly about the installation and maintenance of the machine when you buy machine.（Very important）... - Page 42 Water and 1.Plastic water outlet is not tightened Tightened fasten screw material 2.Beater seals was damaged Replaced leakage 3.Seal cover of evaporator was loss Check operating habits residual pipe 1.Larger noise when cleaning, lower after adding the Normal material 2., Uneven placement, self-adjusting Loose screws on the three sides of panel Self-tightening 1.Abnormal...
- Page 43 Adjusted by 6.Unsteady voltage Improve mains line voltage capacity of install regulator technician Adjusted by 7.Belt loose or damaged Adjust or replace the belt technician 8.Bad refrigeration Refrigerant leakage or broken compressor Contact us Must ensure that the material should occupy two-thirds 9.
- Page 44 2. Something wrong with the beater Larger water proportion , high hardness level Self-debugging 3.High ambient temperature or blocked air Strengthen ventilation and remove obstacles Self-debugging intake Check if the condenser is dirty, the exhaust air is 4. Bad refrigeration Contact us smooth, and is less refrigerant.
-
Page 45: Circuit Diagram
CIRCUIT DIAGRAM 5 inch display control 7 inch display control... -
Page 46: Warranty Card
WARRANTY CARD Sales information User information Business： User Name： Contact： Model： Tel/Fax： Date of purchase： Mobile phone： User contact： User Tips：1. Please keep and read carefully the card as soon as possible. 2.12 months free maintenance service from the date of purchase. 3.Power phase is strictly prohibited, to prevent serious fault.
