Page 1: Table Of Contents
MEAL SEAL MACHINE Kasap Tip Dik Buzdolapları CONTENTS GENEREAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWINGS Page ELECTRIC CIRCUIT SCHEMA Page... -
Page 2: Agenereal Information
MEAL SEAL MACHINE Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

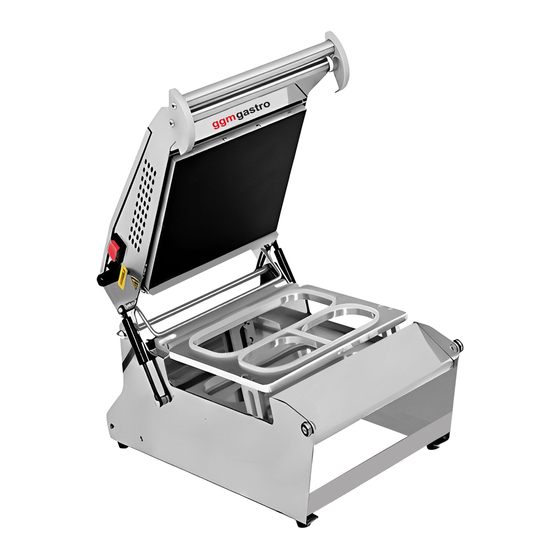

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *Professional Meal Seal Machine, that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.TKM.01 320x650x310 350x700x340 TECHNICAL INFORMATION Film Seal Operating Product Power... -
Page 4: A3 Transportation
MEAL SEAL MACHINE TRANSPORTATION Kasap Tip Dik Buzdolapları *This appliance can be moved by hand from area to area.Do not crash and drop the appliance while transporting. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 5: Csafety Instructions
MEAL SEAL MACHINE Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. ... -
Page 6: Doperation
MEAL SEAL MACHINE OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : Fuse safety button B : OFF position C : ON position D : Warning lamp E : Thermostat *Operating; Before operating the appliance,insert the equipment (aluminium etc.) ... -
Page 7: Ecleaning & Maintenance
MEAL SEAL MACHINE Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE CLEANING AND MAINTENANCE AFTER EVERY USE Clean outer surface of appliance with hot water and then dry. Always turn off the appliance and disconnect from the power supply before cleaning. ... -
Page 8: Ftroubleshooting
MEAL SEAL MACHINE TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the appliance is plugged in. Check the electrical connections and THE APPLIANCE DOESN’T OPERATE voltage. Adjust the thermostat heat. Check the thermostat settings. IF SEALING IS NOT DONE AT SUITABLE According to type of sealing material QUALITY define the time of sticking time. -
Page 9: Gspare Part List- Exploding Drawings
MEAL SEAL MACHINE Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS... - Page 10 MEAL SEAL MACHINE SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları...
-
Page 11: Helectric Circuit Schema
MEAL SEAL MACHINE Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA THERMOSTAT RESİSTANCE THERMOSTAT TERMİNAL 0-1 SWITCH SİGNAL LAMP (60-200ºC) 1000W...
