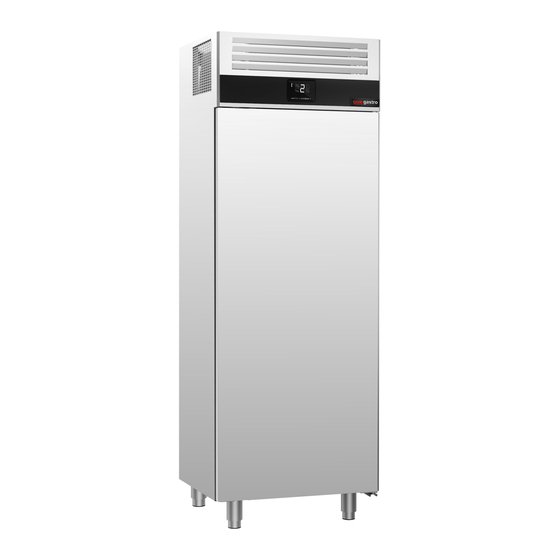

Summary of Contents for GGM gastro ETKSC792D

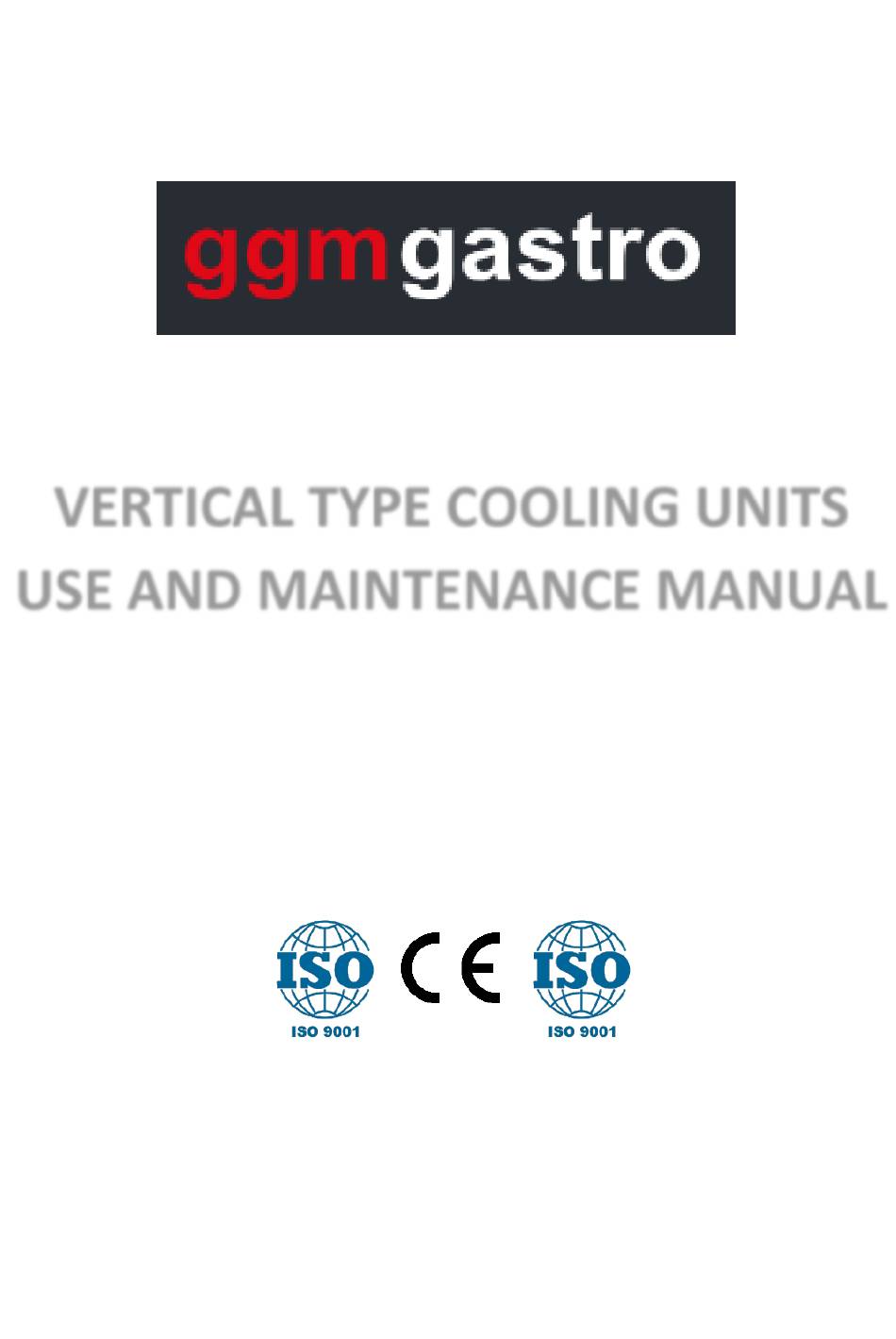

- Page 1 VERTICAL TYPE COOLING UNITS USE AND MAINTENANCE MANUAL...
- Page 2 Dear Customer, This product is manufactured in environmentally friendly modern facilities and has environmentally friendly technologies. Asbestos, formaldehyde, cadmium and CFC free materials and PCB, PCT free compressor oil were used throughout the production period of the product. The gas used in your device is, R290 and R452a. These gases comply with the KYOTO protocol.
- Page 3 The device is manufactured for industrial use and should not be used outside of its purpose. Our company is not responsible for any malfunctions arising from improper use and the product is not covered by the warranty. It is entirely the responsibility of the consumer to take measures related to the food in the product in case of any malfunction in the product or due to usage error.
-
Page 4: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION ..................... 1 1.1. Explanations of Symbols ....................1 1.2. General Information Regarding the User Manual ............2 1.3. Liabilities and Guarantees ....................2 1.4. Copyright Protection ....................... 3 PRODUCT INFORMATION ....................3 2.1. Product Label ........................3 2.2. -
Page 5: General Information
GENERAL INFORMATION 1.1. Explanations of Symbols In this manual, the following symbols are used to emphasize important safety instructions and recommendations for the product. The instructions should be carefully followed to avoid the risk of accidents, injuries and property damage. PLEASE READ THE USER'S GUIDE! Read these instructions before using the product and always keep it. -
Page 6: General Information Regarding The User Manual
WASTE DISPOSAL This symbol indicates that the product will not be considered as normal domestic waste. It emphasizes that waste disposal should be carried out. 1.2. General Information Regarding the User Manual This user's guide contains information on installation, operation and maintenance of the appliance. -
Page 7: Copyright Protection
1.4. Copyright Protection The user's guide, including any text, drawings, images and other illustrations contained therein, is under copyright protection. No part of this publication may be reproduced, transmitted, or used in any form or by any means without the written permission of the manufacturer. Anyone involved in an unauthorized process involving this publication will be subjected to a claim for compensation. - Page 8 Never let the power cord to come into contact with heat sources or sharp surfaces. The power cable should not hang over the side of the working surface. Ensure that no one canstep on or trip over the cable. ...
-
Page 9: Transportation, Packaging And Storage
high voltage that occurs when the electricity is first back may damage the product and cause fire. WARNING! Flammable gases such as R290A and R600A are used in this product. In the event of a fire resulting from any gas leakage or malfunction, disconnect the plug from the outlet or disconnect the appliance from the mains before attempting fire fighting. -
Page 10: Installation
• Avoid exposure to harsh conditions. • Avoid exposure to direct sunlight. • Keep away from mechanical shocks and vibrations. • If it is necessary to store the product for at least 3 months, check the condition of the packaging and parts regularly. INSTALLATION 5.1. - Page 11 figure 2 figure 3 CAUTION! Do not overfill the shelves. The height of the materials you place on the shelves must not exceed half the distance between the two shelves to ensure air flow. figure 4 Do not put hot materials into your product. Do not use your product to warm frozen foods.
-
Page 12: Selecting The Installation Location
5.2. Selecting the Installation Location The environment in which the appliance will operate in is very important for the product to operate properly. Before you install the product, pay attention to the following items. • Do not position your product in a way that exposes your product to open air. - Page 13 figure 7 figure 8 figure 9 Rack cradle mounting figure 10 Rack mounting style...
-
Page 14: Maximum Loading Amount
Fill the device up to the maximum load amount specified here. MODEL Total Maximum Loading Amount Maximum Load Per (Lt) Shelf(kg) ETKSC792D- 16,5x36x12 30 kg ETKSC792DN 48 piece figure 11 Maximum load should be placed on the device shelf up to the label level shown in Figure 11, otherwise the cabinet efficiency will decrease. -
Page 15: Operating
• The outlet of your socket must be at least 16 A and grounded. • The device must only be plugged into a properly installed single outlet with protective contact. Do not use any extension cords or multiple plugs. Do not unplug the power cord by pulling on the cable. -
Page 16: Using Digital Thermostat (Evco Evj204)
figure 13 6.1. Using Digital Thermostat (EVCO EVJ204) figure 14 WARNING ELECTRICAL HAZARD! In case of improper installation and electrical connection, the appliance may cause injuries. - Page 17 6.1.1. Controller For Cooling Units Front of the thermostat figure 15 Opening the keypad (»Loc» on the screen) Press any button other than the power button for more than 2 seconds. “UnL” will appear on the screen. You can use the keys. Note: For security reasons, if the keys are not pressed for 30 seconds, the device will automatically switch to the key lock.To take any action, first unlock the key.
- Page 18 button. Note: The set value can be changed between the values assigned by r1 and r2 parameters. Please contact technical service for detailed information. 6.1.1.1. Starting Manuel Defrost To manually start this loop: Press and hold the DEFROST button for 3 seconds.
- Page 19 CORNER, WITHOUT ANY WRITTEN ON THE SCREEN (NOT A GREEN LEAF WILL BE SHOWN IN THE CENTER). Please activate the device before your operations. It is used to change the set temperature and access the digital thermostat parameters. Used to switch the device on or off. You can turn the device on and off by pressing and holding this key for 4 seconds.
- Page 20 External Input If the light is on, the interior light will operate in manual mode. If the light is flashing, the cabinet light will operate depending on the door switch input. Celcius Degree Light If the light is on, Celcius is used as the temperature measurement unit. Fahrenheit Degree Light If the light is on, Fahrenheit is used as the temperature measurement unit.
-
Page 21: Digital Thermostat Alarms
Fahrenheit degree Led; When it is lit, the measurement is in degrees Fahrenheit. “STAND-BY” On/Off led. If it is lit, the device is turned off. 6.2. Digital Thermostat Alarms Alarm Alarm Description Solution Result Code -Check the room -Call Minimum temperature temperature. -
Page 22: Digital Thermostat Errors
-Check the condenser -The temperature. Compressor shutdown compressor -Turn off the device and alarm turn it on again. will turn off. -Clean the condenser. -The device -Check the evaporator Defrost alarm turned off will sensor. because the maximum continue to -Press any key to remove time has been reached operate... -
Page 23: Turning Off The Appliance
TURNING OFF THE APPLIANCE To turn the cooler off, the following operations must be performed: 1- Switch off the device from the digital thermostat. 2- Unplug the power plug. PROBLEMS Problem Probable Cause Solution -Main power supply is closed. -Switch on the main -No voltage. -
Page 24: Cleaning
-Environment is too hot -Check the door -The door was opened very often seal. and / or had stayed open too -Call authorized long. service. -Damaged door seal Very high energy -Temperature setpoint is too low. consumption -Too many product inside cupboard -The product is placed close to direct sunlight or heat dissipating... - Page 25 • Switch on the appliance and wait until the temperature of the device has reached the desired temperature before returning the products to be stored. figure 16 NOTE! -To clean the condenser, first unplug the appliance. Clean the dust on the condenser with proper cleaning fluids for condenser cleaning.
-
Page 26: Disposal
CAUTION! In order for the gasket to be used for a long time, it must be cleaned with hot water at regular intervals (every 2 months). figure 17 9.1. Disposal At the end of the period of use, the appliance to be disposed of must be done so in accordance with the national regulations. -
Page 27: Technical Information
10. TECHNICAL INFORMATION figure 18 İnner Packaging Model Temperature Capacity Climate Voltage Power Dimensions Dimensions (°C) (Lt) Class (V/Hz) (mm) (mm) 16,5x36x 850 W 700x920x2070 ETKSC792 220- 750x960x21 -12/-24 D(R452a) 230/50 48 piece 16,5x36x 640 W 700x920x2070 ETKSC792 220- 750x960x21 -12/-24 DN(R290) 230/50... -
Page 28: Electric Scheme
11. ELECTRIC SCHEME... - Page 29 NOTES …………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………….…………. ..…………………………………………………………………………………………………………………………… ………..……………………………………………………………………………………………………….………… ………..…………………………………………………………………………………………………………………… …………….………………………………………………………………………………………….…………………… ………………..…………………………………………………………………………………………………………… ………………….………………………………………………………………………….……………………………… ………………………..…………………………………………………………………………………………………… ……………………….………………………………………………………….………………………………………… ………………………..…………………………………………………………………………………………………… ……………………….……………………………………………….…………………………………………………… ………………………..…………………………………………………………………………………………………… ………………………….………………………………….……………………………………………………………… …………………………..………………………………………………………………………………………………… …………………………….…………………….………………………………………………………………………… ……………………………..……………………………………………………………………………………………… ……………………………….……….…………………………………………………………………………………… ……………………………….……………………………………………………………………….…………………… ………………………………..…………………………………………………………………………………………… ………………………………….………………………………………………………….……………………………… …………………………………..………………………………………………………………………………………… …………………………………….…………………………………………….………………………………………… …………………………………….……….……………………………………………………………………………… ……………………………………..….….…………………………….………………………………………………… ……………………………………….….………………………………………………………………………………… ………………………………………….…………………….…………………………………………………………… ……………………………………………..……………………………………………………………………………… ….………………………………………….……………………………………………………………………………… ……………………………………………….…………………………………………………………………….……… ………………………………………………..…………………………………………………………………………… ………………………………………………….……………………………………………………….………………… ……………………………………………………………………………………………………………………………..
- Page 30 NOTES …………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………….…………. ..…………………………………………………………………………………………………………………………… ………..……………………………………………………………………………………………………….………… ………..…………………………………………………………………………………………………………………… …………….………………………………………………………………………………………….…………………… ………………..…………………………………………………………………………………………………………… ………………….………………………………………………………………………….……………………………… ………………………..…………………………………………………………………………………………………… ……………………….………………………………………………………….………………………………………… ………………………..…………………………………………………………………………………………………… ……………………….……………………………………………….…………………………………………………… ………………………..…………………………………………………………………………………………………… ………………………….………………………………….……………………………………………………………… …………………………..………………………………………………………………………………………………… …………………………….…………………….………………………………………………………………………… ……………………………..……………………………………………………………………………………………… ……………………………….……….…………………………………………………………………………………… ……………………………….……………………………………………………………………….…………………… ………………………………..…………………………………………………………………………………………… ………………………………….………………………………………………………….……………………………… …………………………………..………………………………………………………………………………………… …………………………………….…………………………………………….………………………………………… …………………………………….……….……………………………………………………………………………… ……………………………………..….….…………………………….………………………………………………… ……………………………………….….………………………………………………………………………………… ………………………………………….…………………….…………………………………………………………… ……………………………………………..……………………………………………………………………………… ….………………………………………….……………………………………………………………………………… ……………………………………………….…………………………………………………………………….……… ………………………………………………..…………………………………………………………………………… ………………………………………………….……………………………………………………….………………… ……………………………………………………………………………………………………………………………..
- Page 31 NOTES …………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………….…………. ..…………………………………………………………………………………………………………………………… ………..……………………………………………………………………………………………………….………… ………..…………………………………………………………………………………………………………………… …………….………………………………………………………………………………………….…………………… ………………..…………………………………………………………………………………………………………… ………………….………………………………………………………………………….……………………………… ………………………..…………………………………………………………………………………………………… ……………………….………………………………………………………….………………………………………… ………………………..…………………………………………………………………………………………………… ……………………….……………………………………………….…………………………………………………… ………………………..…………………………………………………………………………………………………… ………………………….………………………………….……………………………………………………………… …………………………..………………………………………………………………………………………………… …………………………….…………………….………………………………………………………………………… ……………………………..……………………………………………………………………………………………… ……………………………….……….…………………………………………………………………………………… ……………………………….……………………………………………………………………….…………………… ………………………………..…………………………………………………………………………………………… ………………………………….………………………………………………………….……………………………… …………………………………..………………………………………………………………………………………… …………………………………….…………………………………………….………………………………………… …………………………………….……….……………………………………………………………………………… ……………………………………..….….…………………………….………………………………………………… ……………………………………….….………………………………………………………………………………… ………………………………………….…………………….…………………………………………………………… ……………………………………………..……………………………………………………………………………… ….………………………………………….……………………………………………………………………………… ……………………………………………….…………………………………………………………………….……… ………………………………………………..…………………………………………………………………………… ………………………………………………….……………………………………………………….………………… ……………………………………………………………………………………………………………………………..
- Page 32 NOTES …………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………….…………. ..…………………………………………………………………………………………………………………………… ………..……………………………………………………………………………………………………….………… ………..…………………………………………………………………………………………………………………… …………….………………………………………………………………………………………….…………………… ………………..…………………………………………………………………………………………………………… ………………….………………………………………………………………………….……………………………… ………………………..…………………………………………………………………………………………………… ……………………….………………………………………………………….………………………………………… ………………………..…………………………………………………………………………………………………… ……………………….……………………………………………….…………………………………………………… ………………………..…………………………………………………………………………………………………… ………………………….………………………………….……………………………………………………………… …………………………..………………………………………………………………………………………………… …………………………….…………………….………………………………………………………………………… ……………………………..……………………………………………………………………………………………… ……………………………….……….…………………………………………………………………………………… ……………………………….……………………………………………………………………….…………………… ………………………………..…………………………………………………………………………………………… ………………………………….………………………………………………………….……………………………… …………………………………..………………………………………………………………………………………… …………………………………….…………………………………………….………………………………………… …………………………………….……….……………………………………………………………………………… ……………………………………..….….…………………………….………………………………………………… ……………………………………….….………………………………………………………………………………… ………………………………………….…………………….…………………………………………………………… ……………………………………………..……………………………………………………………………………… ….………………………………………….……………………………………………………………………………… ……………………………………………….…………………………………………………………………….……… ………………………………………………..…………………………………………………………………………… ………………………………………………….……………………………………………………….………………… ……………………………………………………………………………………………………………………………..
- Page 33 NOTES …………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………….…………. ..…………………………………………………………………………………………………………………………… ………..……………………………………………………………………………………………………….………… ………..…………………………………………………………………………………………………………………… …………….………………………………………………………………………………………….…………………… ………………..…………………………………………………………………………………………………………… ………………….………………………………………………………………………….……………………………… ………………………..…………………………………………………………………………………………………… ……………………….………………………………………………………….………………………………………… ………………………..…………………………………………………………………………………………………… ……………………….……………………………………………….…………………………………………………… ………………………..…………………………………………………………………………………………………… ………………………….………………………………….……………………………………………………………… …………………………..………………………………………………………………………………………………… …………………………….…………………….………………………………………………………………………… ……………………………..……………………………………………………………………………………………… ……………………………….……….…………………………………………………………………………………… ……………………………….……………………………………………………………………….…………………… ………………………………..…………………………………………………………………………………………… ………………………………….………………………………………………………….……………………………… …………………………………..………………………………………………………………………………………… …………………………………….…………………………………………….………………………………………… …………………………………….……….……………………………………………………………………………… ……………………………………..….….…………………………….………………………………………………… ……………………………………….….………………………………………………………………………………… ………………………………………….…………………….…………………………………………………………… ……………………………………………..……………………………………………………………………………… ….………………………………………….……………………………………………………………………………… ……………………………………………….…………………………………………………………………….……… ………………………………………………..…………………………………………………………………………… ………………………………………………….……………………………………………………….………………… ……………………………………………………………………………………………………………………………..
- Page 34 NOTES …………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………….…………. ..…………………………………………………………………………………………………………………………… ………..……………………………………………………………………………………………………….………… ………..…………………………………………………………………………………………………………………… …………….………………………………………………………………………………………….…………………… ………………..…………………………………………………………………………………………………………… ………………….………………………………………………………………………….……………………………… ………………………..…………………………………………………………………………………………………… ……………………….………………………………………………………….………………………………………… ………………………..…………………………………………………………………………………………………… ……………………….……………………………………………….…………………………………………………… ………………………..…………………………………………………………………………………………………… ………………………….………………………………….……………………………………………………………… …………………………..………………………………………………………………………………………………… …………………………….…………………….………………………………………………………………………… ……………………………..……………………………………………………………………………………………… ……………………………….……….…………………………………………………………………………………… ……………………………….……………………………………………………………………….…………………… ………………………………..…………………………………………………………………………………………… ………………………………….………………………………………………………….……………………………… …………………………………..………………………………………………………………………………………… …………………………………….…………………………………………….………………………………………… …………………………………….……….……………………………………………………………………………… ……………………………………..….….…………………………….………………………………………………… ……………………………………….….………………………………………………………………………………… ………………………………………….…………………….…………………………………………………………… ……………………………………………..……………………………………………………………………………… ….………………………………………….……………………………………………………………………………… ……………………………………………….…………………………………………………………………….……… ………………………………………………..…………………………………………………………………………… ………………………………………………….……………………………………………………….………………… ……………………………………………………………………………………………………………………………..
