4. Voltage-free contact ON
5. Current time
6. DHW function active
7. Current operation mode/schedule in a given zone
L
G-1....G-5
8. Signal strength and battery level in the room sensor
9. Pre-set temperature in a given zone
10. Current floor temperature
11. Current temperature in a given zone
12. Zone information. The digit displayed indicates the room sensor which provides current temperature information
from a given zone. If the zone is currently being heated or cooled (depending on the selected mode), the digit
flashes. In the event of a zone alarm, an exclamation mark is displayed instead of the digit. In order to view the
operation parameters of a given zone, select its number using the buttons

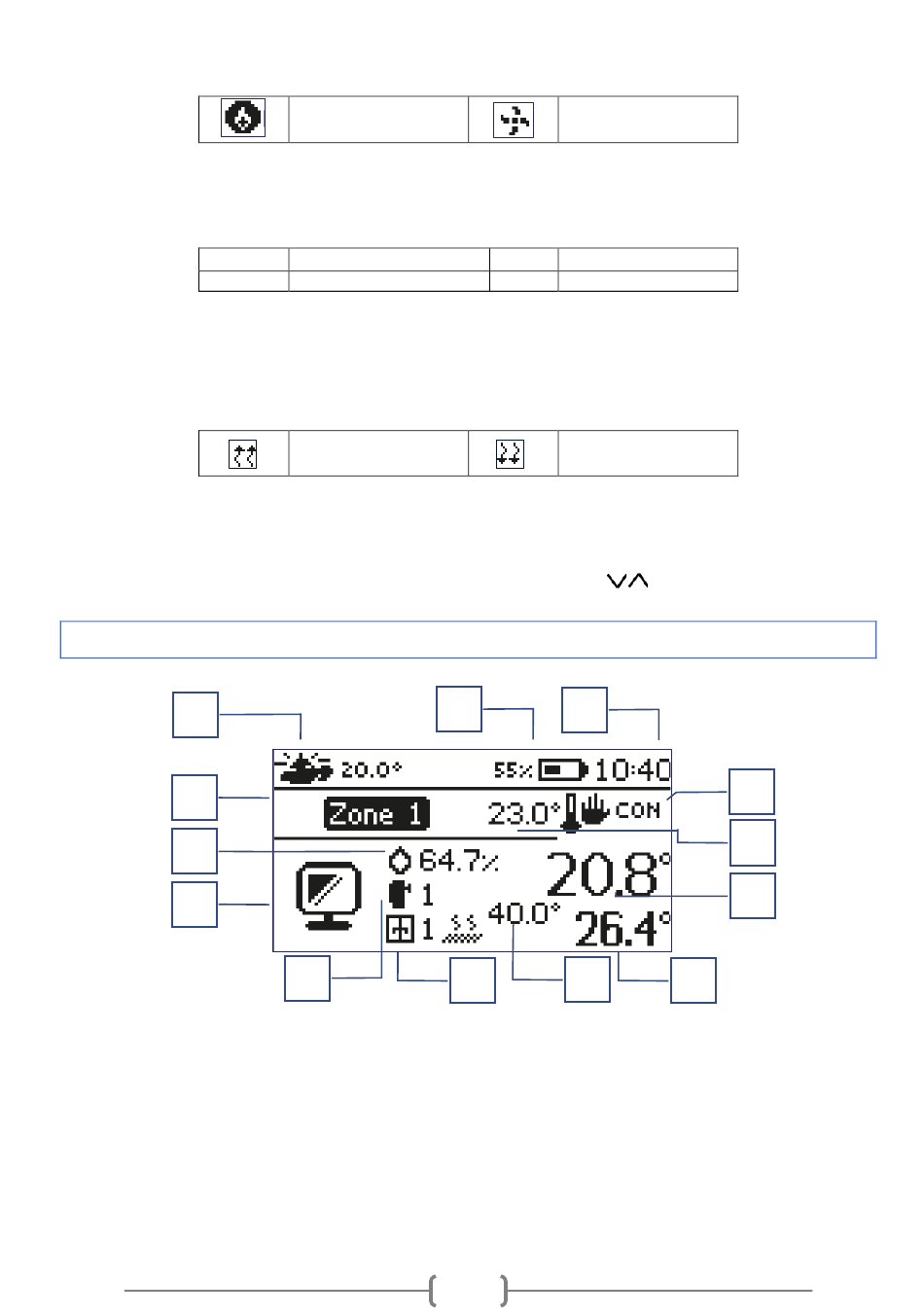

AN EXAMPLE SCREEN VIEW – ZONE
1
13
12
11
1. Outdoor temperature
2. Battery level
3. Current time
4. Current operation mode in the given zone
5. Pre-set temperature in the given zone
6. Current temperature in the given zone
7. Current floor temperature
8. Maximum floor temperature
9. Number of window sensors registered in the given zone
zone heating ON
local schedule
global schedule 1-5
zone heating
2
10
9
14
zone cooling ON
constant temperature
CON
02:08 with time limit
zone cooling
.
3
8
4
5
6
7
