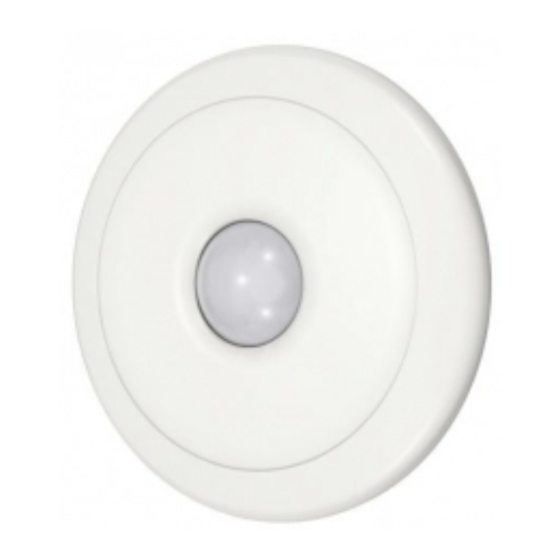

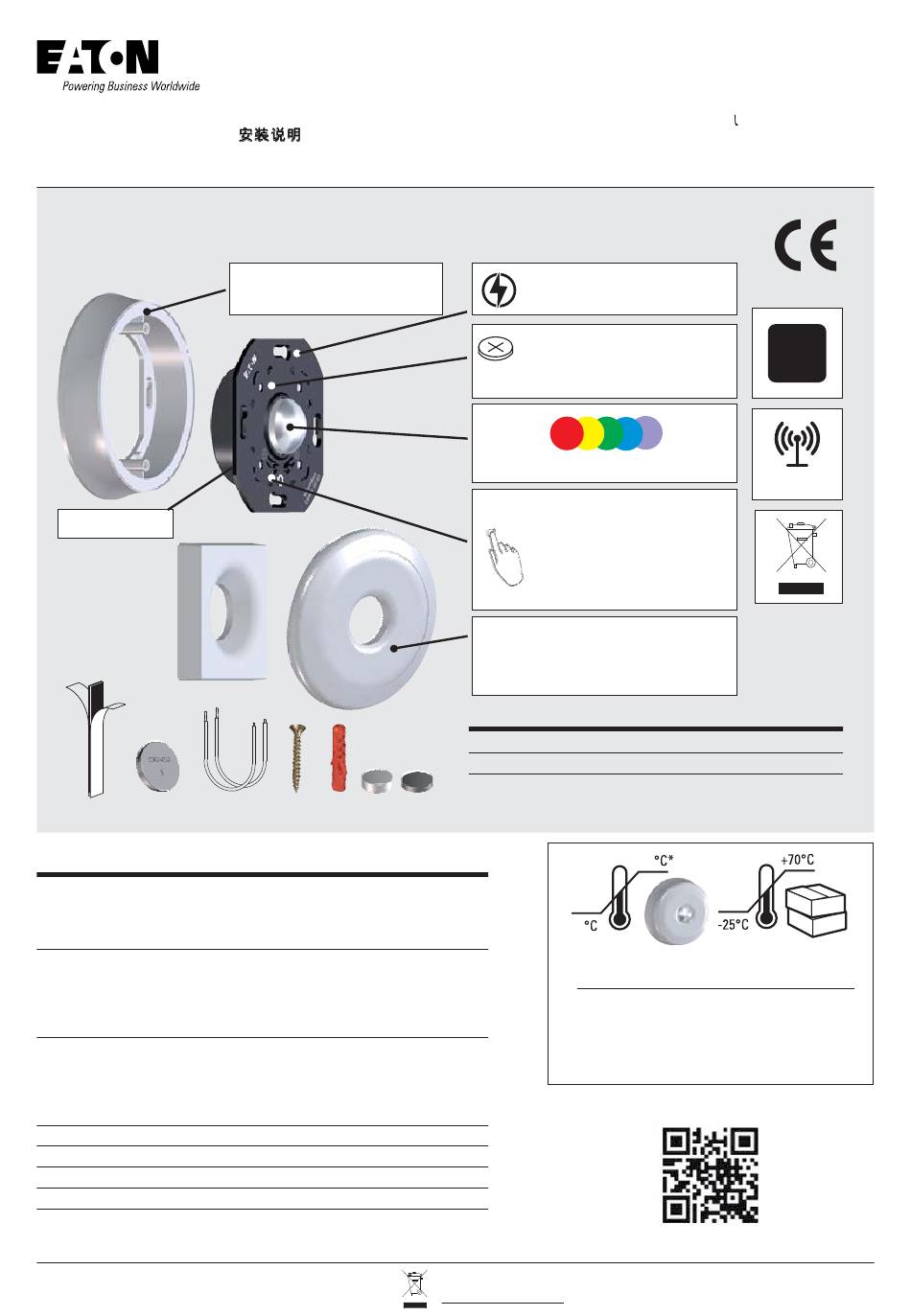

Eaton CBMD-02 Series Instruction Leaflet

Universal Motion Sensor
CBMD-02/..
CBME-02/01
CR2450
1x
2x
Technical Data / Technische gegevens / Tekniske data /
Technische Daten / Technická data
Power Supply
Mains 230 VAC +10% -15%, 50 Hz
Battery CR2450 3Vdc
Battery Service Life up to 5 years (TYP)
Detection
Area (ceiling mount) Depending on movement max. Ø 5 m
when mounted at 2.5 m
Range (wall mount) Depending on movement max. 8 m
Angle 90°
On device settings
Sensitivity low ... high
Light intensity Night ... Day&Night (always)
Switch off delay 10 s ...120 min,
Detection indication ON/OFF
LED Multi-color operation status
Dimensions ø 91 x 30 mm (D x H)
RF 868,3 MHz (xComfort copatible)
Max RF power 25 mW (ERP)
