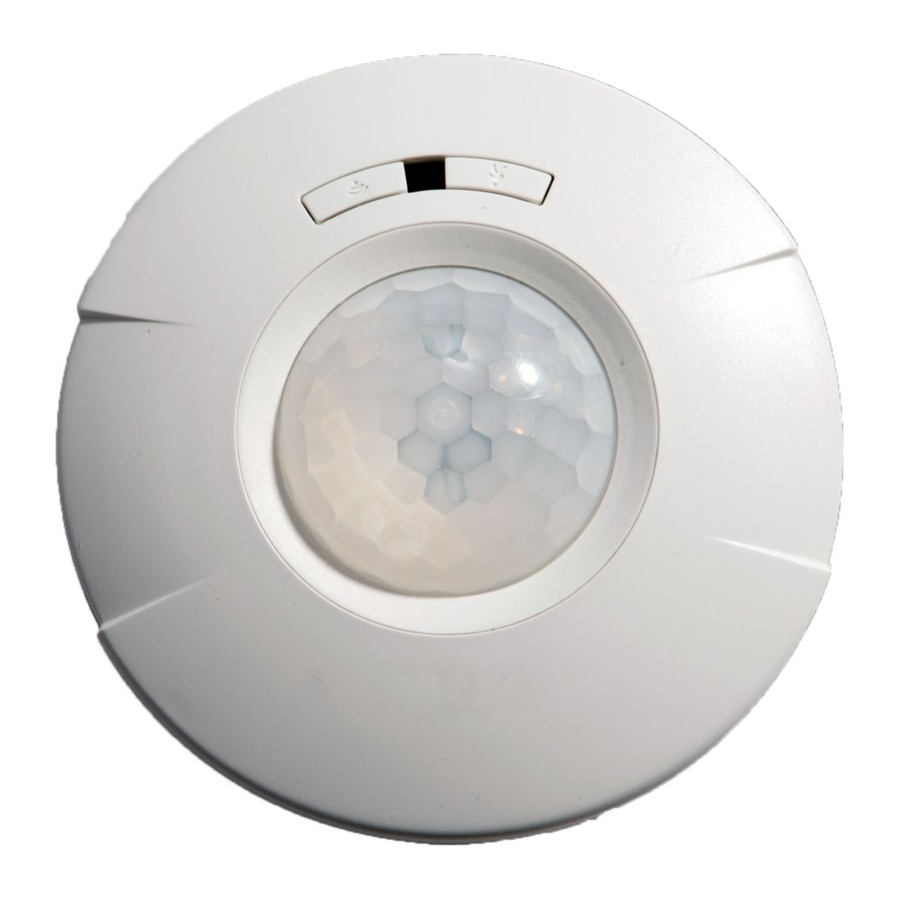

CWPD Ceiling Mounted Wireless Sensor
Wiring and Installation Manual
Overview
The Wireless Sensor is a key component of the WaveLinx
Wireless Connected Lighting System. This device provides
occupancy information of an area to the Eaton Wireless
Controller. The Wireless Sensor utilizes passive infrared
technology to determine occupancy and a photocell to provide
open loop daylighting. It is powered by standard batteries
(2 x AA) and communicates wirelessly to the Eaton Wireless
Area Controller (WAC). The Wireless Sensor is intended to
be installed onto a ceiling surface or electrical box
CWPD-1500 Extended Range
Important Safeguards
When using electrical equipment, basic safety precautions should always be followed including the following:
• READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
• Do not mount near gas or electric heaters.
• Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by
unauthorized personnel.
• The use of accessory equipment is not recommended by Eaton as it may cause an unsafe condition.
• Do not use this equipment for other than the intended use.
SAVE THESE INSTRUCTIONS

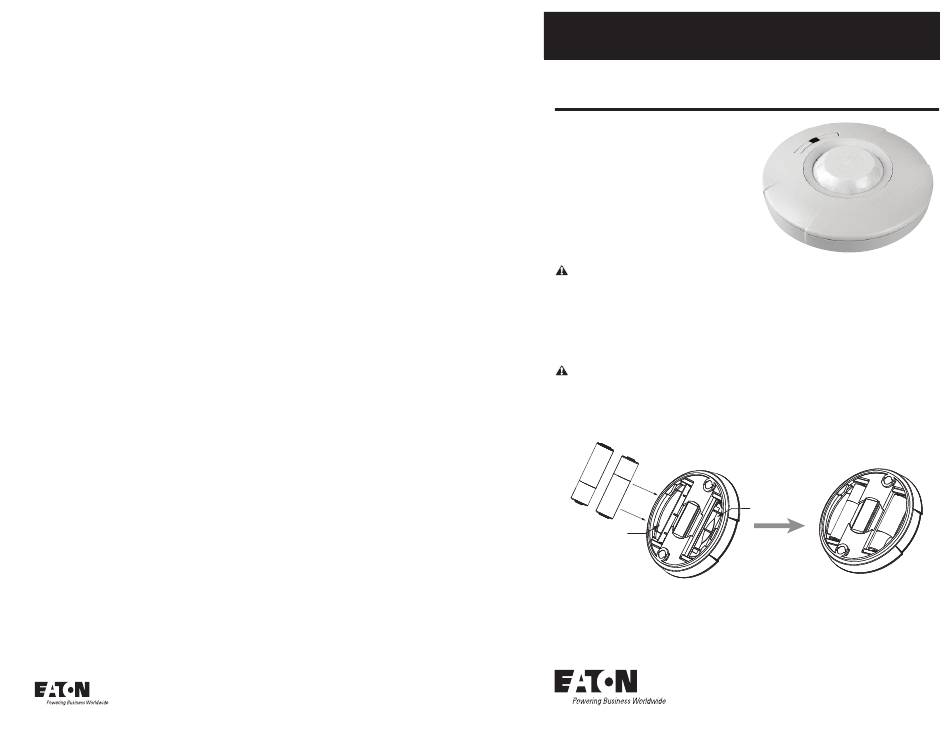

Battery Installation
Two AA alkaline batteries are provided with the Wireless Sensor. When replacing these batteries, use only alkaline
type batteries. Install the batteries according to the battery compartment markings.
Battery slot
Battery slot
