- Page 1 BWS5000 Series High-precision Digital Output Dual Axis Inclinometer Technical Manual V3.0...

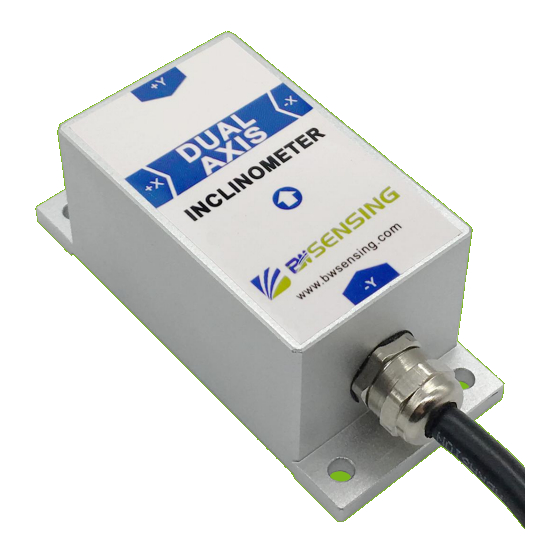

- Page 2 BWS5000 High-Precision Digital Output Dual Axis Inclinometer Introduction BWS5000 is a dual-axis high-precision Inclinometer with MEMS technology and digital output launched by Bewis Sensing. It has a measurement range of ±15°, a maximum accuracy of 0.001°, and a temperature drift of 0.0003°/℃. It is currently the highest accuracy product in the industry.
-
Page 3: Product Feature
BWS5000 High-Precision Digital Output Dual Axis Inclinometer Product Feature Electrical Index Voltage (V) 9-36V DC Working Current (mA) 50mA（12V）；40mA（24V） Operating temperature(℃) -40~85℃ Storage temperature(℃) -55~100℃ Performance Index Measurement Range (°) Condition ±5 ±15 Mutually perpendicular Measurement axis Room temperature 0.001 0.003 Accuracy (°) Completely still... - Page 4 BWS5000 High-Precision Digital Output Dual Axis Inclinometer Mechanical Index Connector Metal joint（cable1.5m) Protection Level IP67* Shell material Magnesium aluminum alloy oxidation Installation Four M4 screws *Waterproof to IP67 after gluing Package product size Product Size：L90*W40.5*H36（mm） Bare board product Product Size ： L47*W36*H23 （ mm ） The length and width may have an error of ±1mm, please refer to the actual product Bewis Sensing Technology LLC www.bwsensing.com Tel：+86 18921292620...
-
Page 5: Installation
BWS5000 High-Precision Digital Output Dual Axis Inclinometer Installation The correct installation method can avoid measurement errors. When installing the sensor, please do the following: First of all, make sure that the sensor mounting surface is completely close to the measured surface, and the measured surface should be as level as possible. There should be no included angles as shown in Figure A and Figure C. -
Page 6: Electrical Interface
BWS5000 High-Precision Digital Output Dual Axis Inclinometer Electrical Interface Wiring definition BLUE BL ACK GREEN YELLOW Cable color & Function DC 9-36V （B、D-） （A、D+） RED VCC DC9-36V 485+ Signal YELLOW D+ Inclinometer acqu isition 485- GREEN D- BLACK GND RS 485 wiring diagram DC 9-36V YELLOW TXD Inclinome... - Page 7 BWS5000E High-Stability Digital Output Dual Axis Inclinometer Debugging Software You can download the serial debugging assistant directly on the official website (technical service -> download area), or you can use the more convenient and intuitive host computer software. BWS5000 supporting serial port debugging software can connect the inclination sensor on the computer to display the angle.
-
Page 8: Order Information
BWS5000E High-Stability Digital Output Dual Axis Inclinometer Order information Communication mode Package situation Product Model BWS5000-15-485 RS485 IP67/Metal interface BWS5000-15-232 RS232 IP67/Metal interface BWS5000-15-TTL IP67/Metal interface Executive standard ● Enterprise Quality System Standard: ISO9001:2015 Standard (Certificate No.064- 21-Q-3290-RO-S) ● CE certification (certificate number: M.2019.103. U Y1151) ●... - Page 9 BWS5000 Series High-precision Digital Output Dual Axis Inclinometer Wuxi Bewis Sensing Technology LLC Add：Building 30, NO. 58, Xiuxi Road, Binhu District, Wuxi City, Jiangsu Province, China Tel：+89 18921292620 Mail：sales@bwsensing.com Web：www.bwsensing.com...
