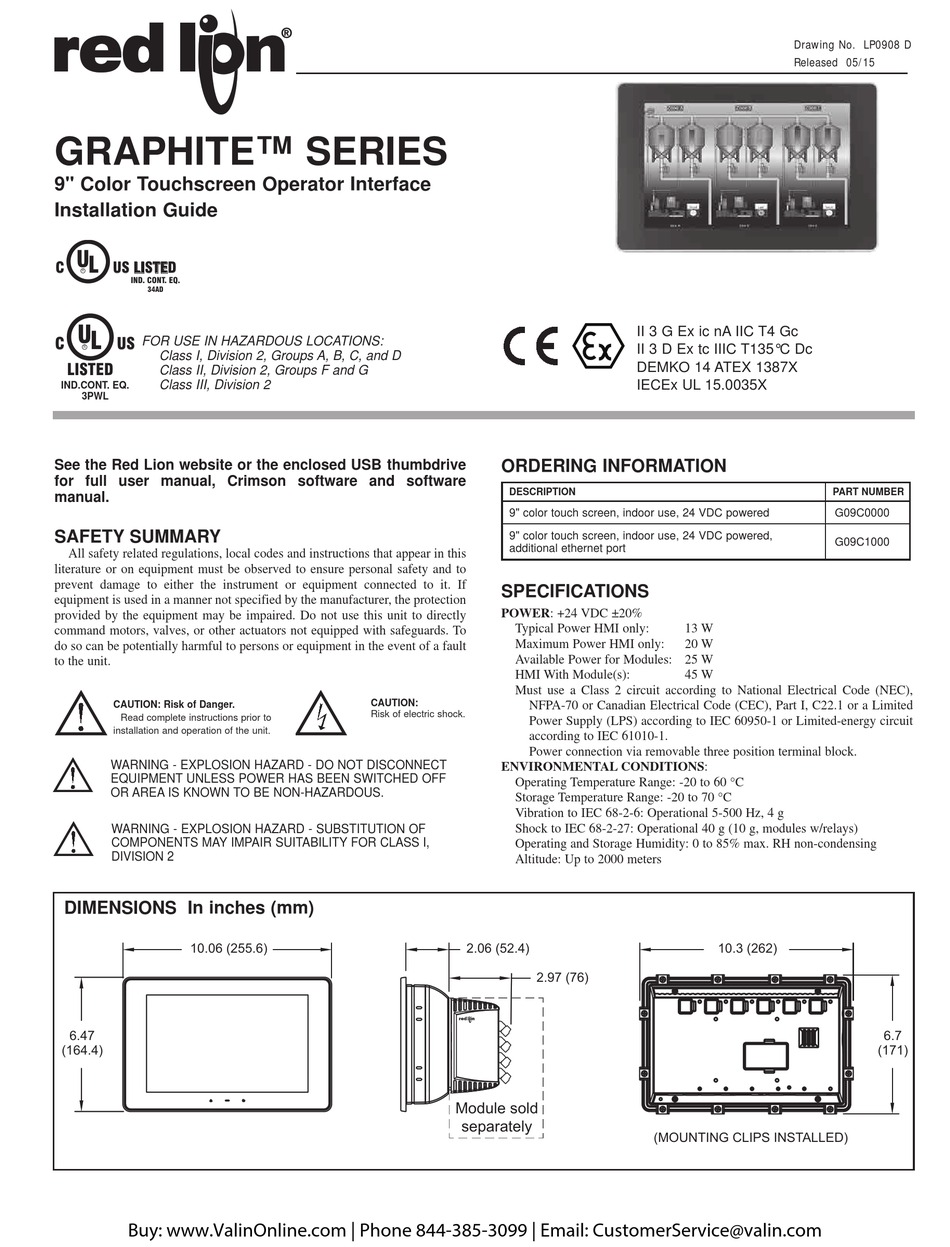

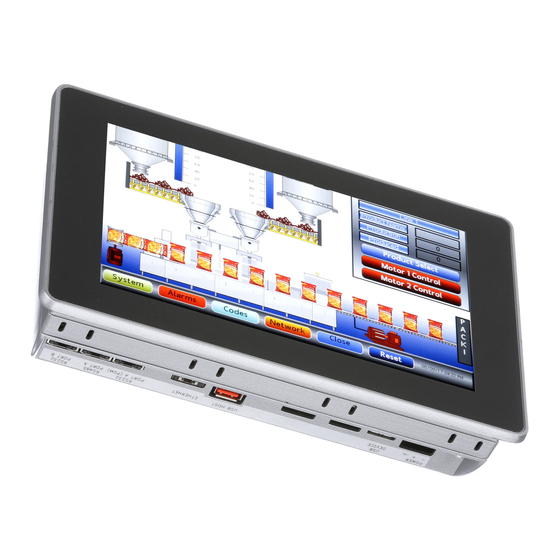

red lion G09C0000 Installation Manual

GRAPHITE™ SERIES
9" Color Touchscreen Operator Interface
Installation Guide
U L
C US LISTED
R
IND. CONT. EQ.
34AD
U L
C US
FOR USE IN HAZARDOUS LOCATIONS:
R
Class I, Division 2, Groups A, B, C, and D
LISTED
Class II, Division 2, Groups F and G
Class III, Division 2
IND.CONT. EQ.
3PWL
See the Red Lion website or the enclosed USB thumbdrive
for full user manual, Crimson software and software
manual.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in this
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired. Do not use this unit to directly
command motors, valves, or other actuators not equipped with safeguards. To
do so can be potentially harmful to persons or equipment in the event of a fault
to the unit.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF
OR AREA IS KNOWN TO BE NON-HAZARDOUS.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2
DIMENSIONS In inches (mm)
10.06 (255.6)
6.47
(164.4)
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
ORDERING INFORMATION
DESCRIPTION
9" color touch screen, indoor use, 24 VDC powered
9" color touch screen, indoor use, 24 VDC powered,
additional ethernet port
SPECIFICATIONS
POWER: +24 VDC ±20%
Typical Power HMI only:
Maximum Power HMI only:
Available Power for Modules: 25 W
HMI With Module(s):
Must use a Class 2 circuit according to National Electrical Code (NEC),
CAUTION:
NFPA-70 or Canadian Electrical Code (CEC), Part I, C22.1 or a Limited
Risk of electric shock.
Power Supply (LPS) according to IEC 60950-1 or Limited-energy circuit
according to IEC 61010-1.
Power connection via removable three position terminal block.
ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: -20 to 60 °C
Storage Temperature Range: -20 to 70 °C
Vibration to IEC 68-2-6: Operational 5-500 Hz, 4 g
Shock to IEC 68-2-27: Operational 40 g (10 g, modules w/relays)
Operating and Storage Humidity: 0 to 85% max. RH non-condensing
Altitude: Up to 2000 meters
2.06 (52.4)
2.97 (76)
Module sold
separately
Drawing No. LP0908 D
Released 05/15
II 3 G Ex ic nA IIC T4 Gc
II 3 D Ex tc IIIC T135°C Dc
DEMKO 14 ATEX 1387X
IECEx UL 15.0035X
13 W
20 W
45 W
10.3 (262)
(MOUNTING CLIPS INSTALLED)
PART NUMBER
G09C0000
G09C1000
6.7
(171)
