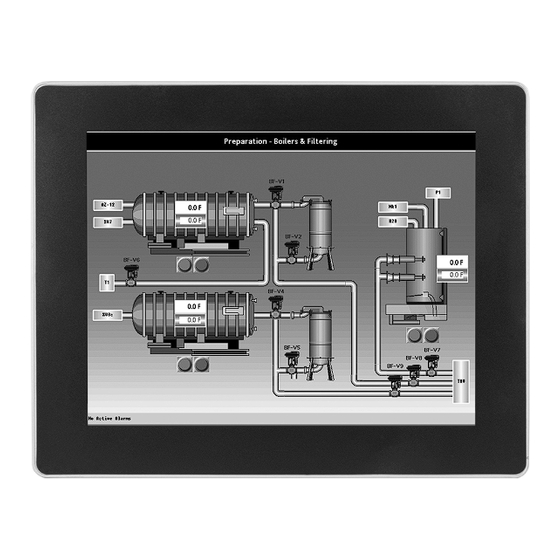

Model G10 ‐ Graphite® Series 10" Color Touchscreen Operator Interface
U L
C
US LISTED
IND. CONT. EQ.
34AD
U L
C
US
FOR USE IN HAZARDOUS LOCATIONS:
Class I, Division 2, Groups A, B, C, and D
LISTED
Class II, Division 2, Groups F and G
IND.CONT. EQ.
Class III, Division 2
3PWL
II 3 G Ex ic nA IIC T4 Gc
II 3 D Ex tc IIIC T135°C Dc
DEMKO 14 ATEX 1387X
IECEx UL 15.0035X
See the Red Lion website at www.redlion.net or the
enclosed USB thumbdrive for full user manual, Crimson®
software and software manual.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear
in the manual or on equipment must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment
connected to it. If equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially
harmful to persons or equipment in the event of a fault to the unit.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF
EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF
OR AREA IS KNOWN TO BE NON-HAZARDOUS.
OR AREA IS KNOWN TO BE NON-HAZARDOUS.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2.

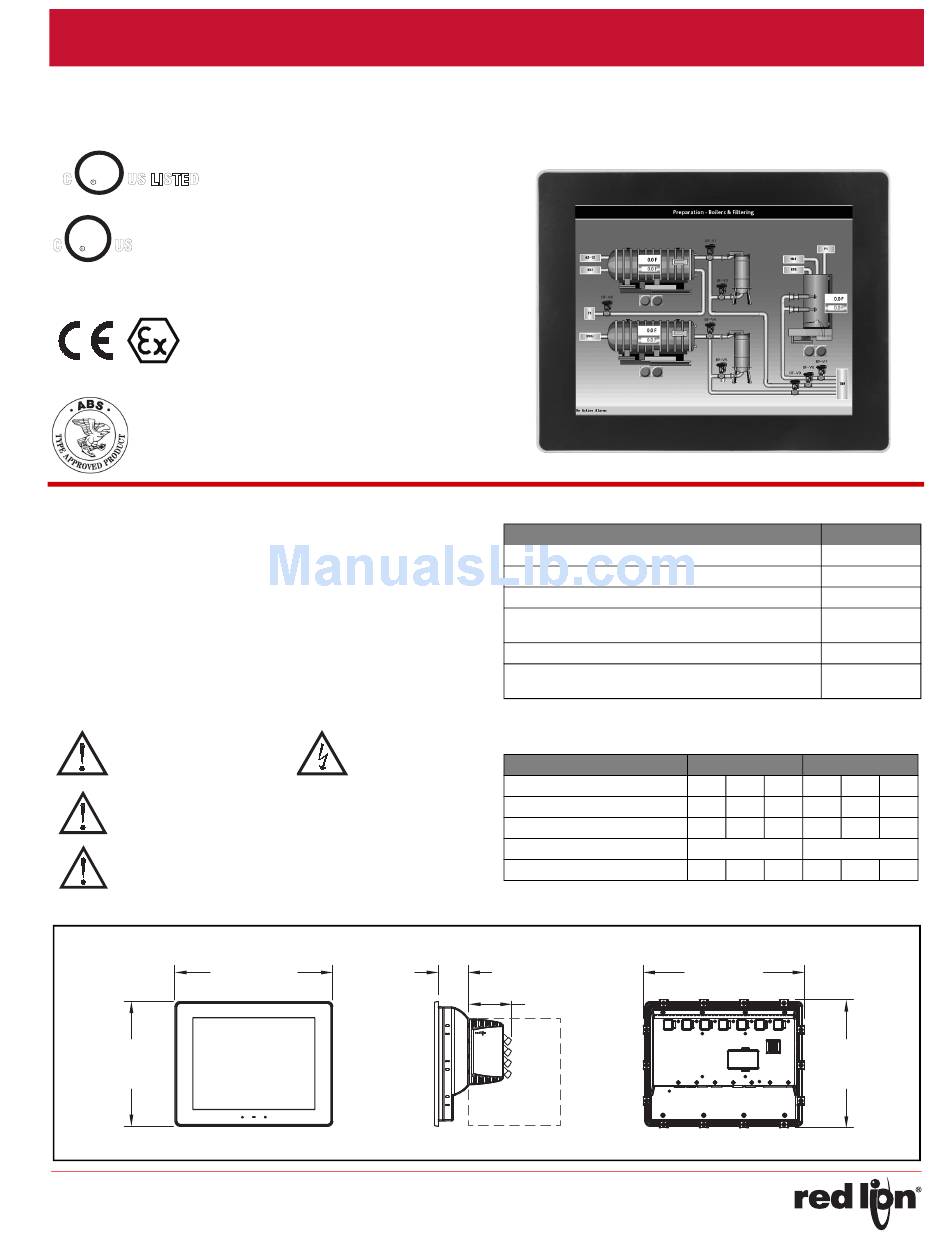

DIMENSIONS In inches (mm)
10.84 (275.2)
8.57
(217.7)
Terminal Installation Guide
CAUTION:
Risk of electric shock.
ORDERING INFORMATION
DESCRIPTION
10" Color Touch Screen, Indoor Use
10" Color Touch Screen, Indoor Use, additional ethernet port
10" high resolution display, color touch screen, indoor use
10" high resolution display, color touch screen, indoor use,
additional ethernet port
10" color touch screen, indoor/outdoor use
10" color touch screen, indoor/outdoor use, additional ethernet
port

SPECIFICATIONS

POWER:
Input Voltage 10V
Typical Power HMI only: 10 W
Maximum Power HMI only: 15 W
Available Power for Modules:
Max Power HMI With Module(s): 44 W
Must use a Class 2 circuit according to National Electrical Code
(NEC), NFPA-70 or Canadian Electrical Code (CEC), Part I, C22.1
2.06 (52.4)
2.97 (76)
Module sold
separately
(MOUNTING CLIPS INSTALLED)
-1-
Bulletin No. G10-E
Drawing No. LP0909
Released 2015-11-23
PART NUMBER
G10C0000
G10C1000
G10R0000
G10R1000
G10S0000
G10S1000
G10C/R
G10S
24V
30V
10V
24V
11 W
11 W
15 W
16 W
16 W
17 W
20 W
21 W
29 W
29 W
46 W
47 W
50 W
51 W
11.1 (281)
8.8
(224)
30V
16 W
22 W
52 W
