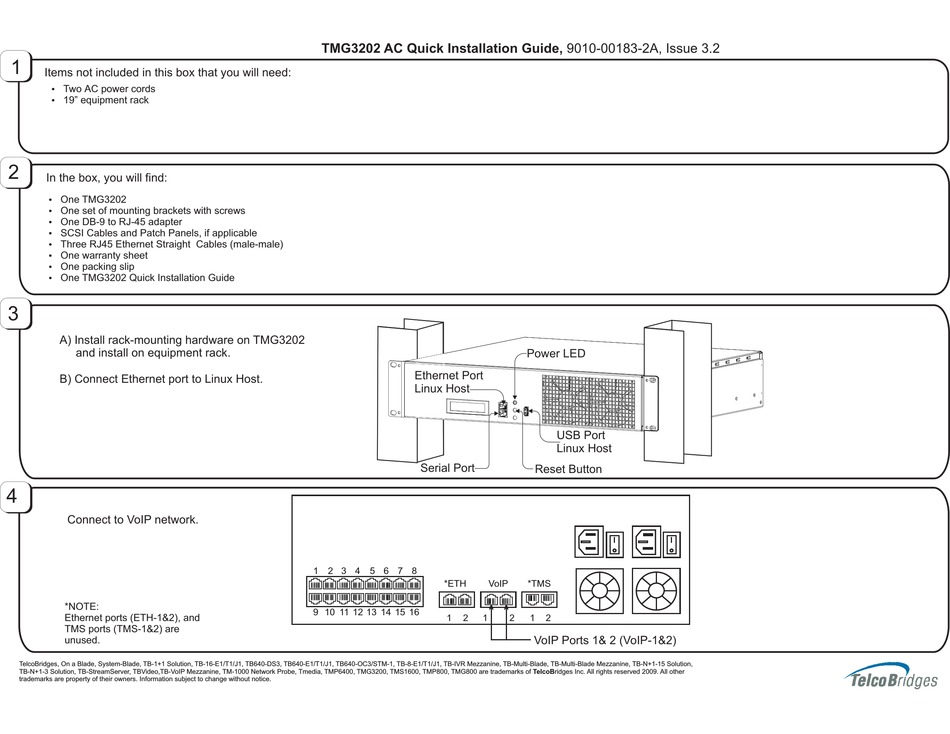

TelcoBridges TMG3202 Quick Installation Manual

1
Items not included in this box that you will need:
?
Two AC power cords
?
19" equipment rack
2
In the box, you will find:
?
One TMG3202
?
One set of mounting brackets with screws
?
One DB-9 to RJ-45 adapter
?
SCSI Cables and Patch Panels, if applicable
?
Three RJ45 Ethernet Straight Cables (male-male)
?
One warranty sheet
? One packing slip
?
One TMG3202 Quick Installation Guide
3
A) Install rack-mounting hardware on TMG3202
and install on equipment rack.
B) Connect Ethernet port to Linux Host.
4
Connect to VoIP network.
*NOTE:
Ethernet ports (ETH-1&2), and
TMS ports (TMS-1&2) are
unused.
TelcoBridges, On a Blade, System-Blade, TB-1+1 Solution, TB-16-E1/T1/J1, TB640-DS3, TB640-E1/T1/J1, TB640-OC3/STM-1, TB-8-E1/T1/J1, TB-IVR Mezzanine, TB-Multi-Blade, TB-Multi-Blade Mezzanine, TB-N+1-15 Solution,
TB-N+1-3 Solution, TB-StreamServer, TBVideo,TB-VoIP Mezzanine, TM-1000 Network Probe, Tmedia, TMP6400, TMG3200, TMS1600, TMP800, TMG800 are trademarks of
trademarks are property of their owners. Information subject to change without notice.
TMG3202 AC Quick Installation Guide, 9010-00183-2A, Issue 3.2
Ethernet Port
Linux Host
Serial Port
1 2 3 4 5 6 7 8
*ETH VoIP
9 10 11 12 13 14 15 16
1 2 1
Power LED
USB Port
Linux Host
Reset Button
*TMS
2 1 2
VoIP Ports 1& 2 (VoIP-1&2)
