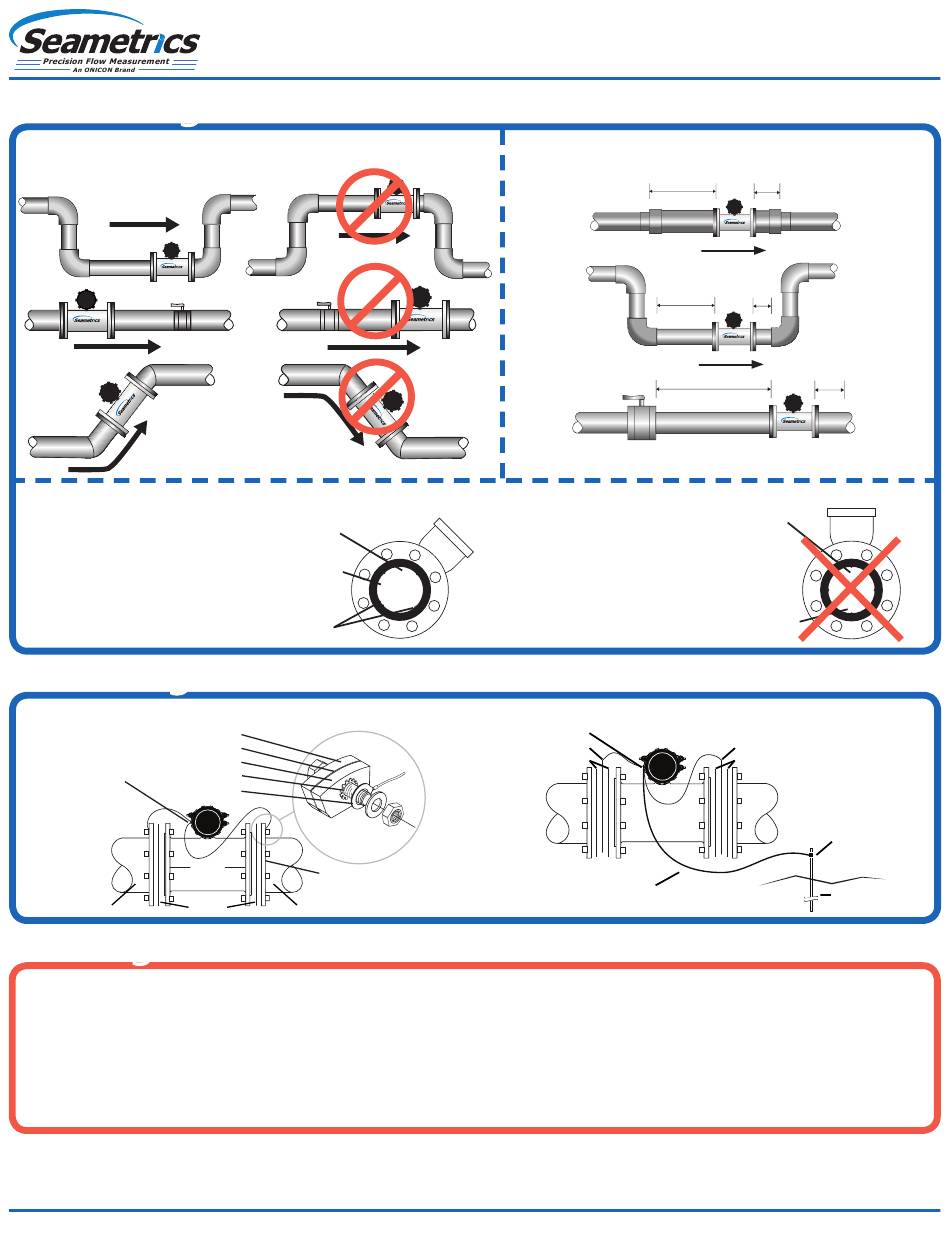

Positioning
Choose a position that will ensure a full pipe.
12345
12345
12345
Recommended:
Improved accuracy
results from
unimpeded electrodes
Grounding
Meter Flange
Gasket
Pipe Flange
Equalization Lug Lockwasher
Flange Plate
Metal Pipe
Warnings
Refer to instruction manual for further details.
• Do not weld or flame cut within 10' of meter. Heat will
damage electronics and liner. (Heat will void warranty.)
• Install provided full face gaskets. Failure to install gaskets
will void warranty.
• Tube must be completely aligned with adjoining flanges.
• Ensure proper grounding.
Refer to the Electrical Quick Start Guide or the complete instruction manual for details on wiring.
Intermittent air
bubbles miss electrode
Electrode moved from
top by rotating meter
Electrodes free from
sediment build-up
Metal Pipe
Meter
Pipe
Flange
Flange
Metal Pipe
Gaskets
Seametrics • 19026 72nd Avenue South • Kent, Washington 98032 • USA
(P) 253.872.0284 • (F) 253.872.0285 • 1.800.975.8153 • seametrics.com
Mechanical Quick Start Guide
Choose a position that will minimize flow distortion.
12345
12345
12345
Not Ideal:
Air bubbles and
sediment on the
electrodes can affect
accuracy
Plastic Pipe
Equalization Lug
Grounding Ring
Gaskets
Plastic
Pipe
#6, #8, or #12 AWG Stranded
Copper Ground Wire < 5'
• Bolts must be tightened evenly. Do not over tighten one side
to fill a gap.
• Improper sealing of cables or cable glands will void warranty.
• Install security seal during installation if regulations require.
• Backup batteries are not intended as a primary power source.
iMAG 4700r
5X 1X
12345
12345
2X 1X
5X 1X
12345
Intermittent air
bubbles pass
over electrode
Possible
sediment
build-up
Grounding Ring
Gaskets
Plastic
Pipe
Ground Clamp
(Exothermically weld when
corrosion is a concern)
8' Ground Rod
LT-14266r1.6 201870601
Earth
