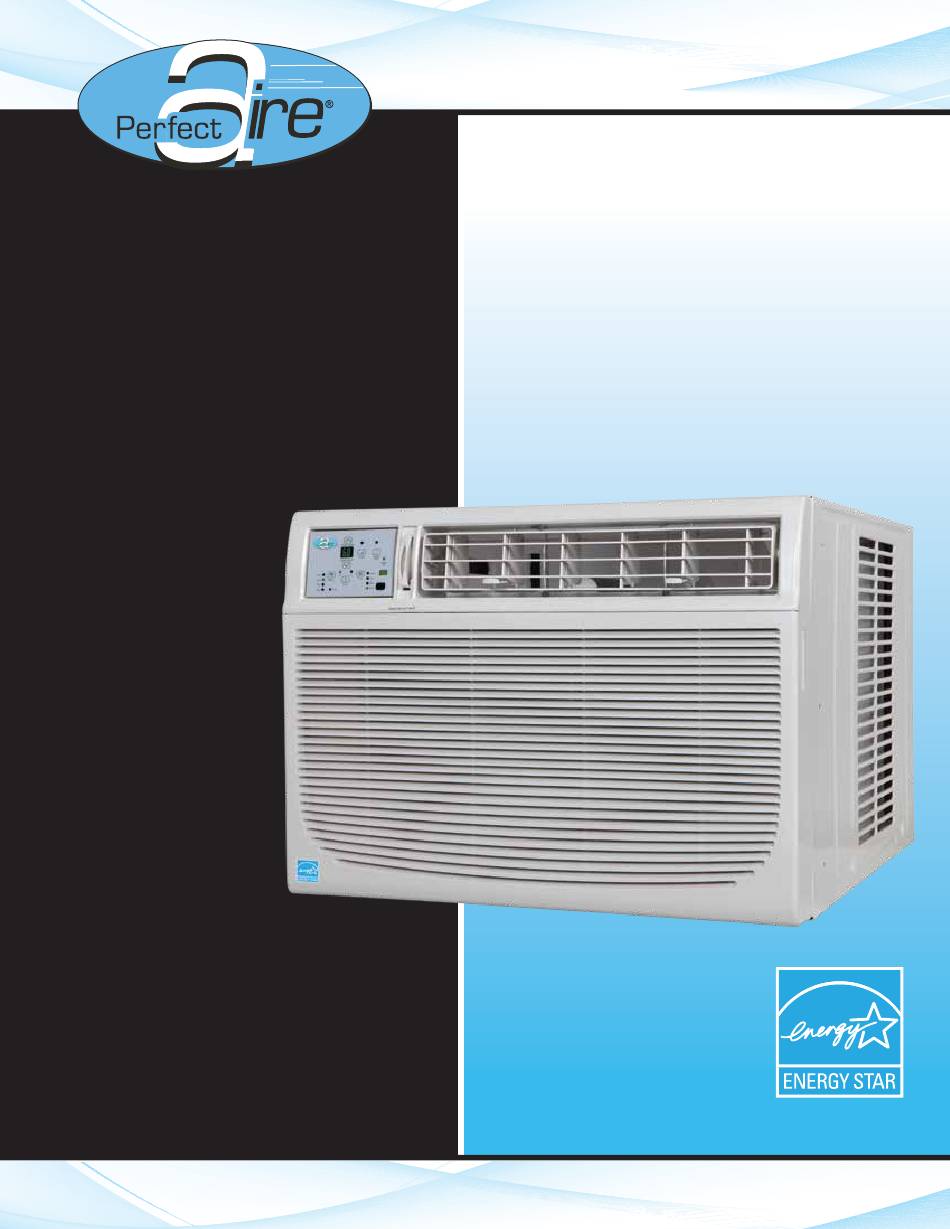

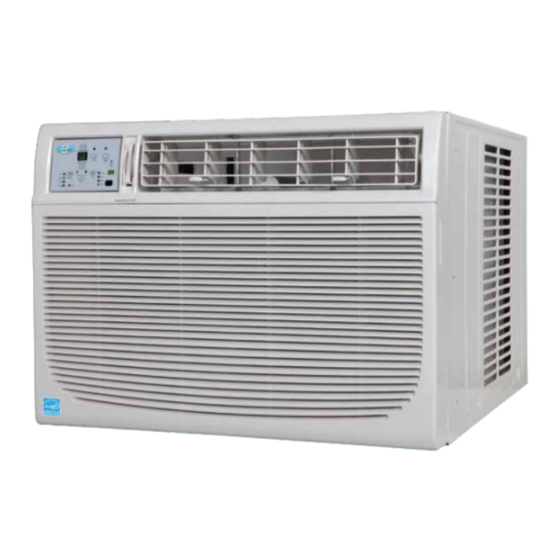

- Page 1 Your Source for Home Comfort (15,000, 18,500 & 25,000 BTU) WINDOW AIR CONDITIONER USER MANUAL FOR MODELS: 2PAC15000 2PAC18000 2PAC25000 Before using your window air conditioner, please read this manual carefully and keep it for future reference, along with your receipt.
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ..................2 IMPORTANT SAFETY INSTRUCTIONS ...............4 NORMAL SOUNDS ....................5 AIR CONDITIONER FEATURES................5 INSTALLATION INSTRUCTIONS .................8 CARE AND CLEANING..................15 TROUBLESHOOTING TIPS ................16 This manual provides the information needed for proper use and maintenance of this air conditioner. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury. - Page 4 ! CAUTION When removing air filter, do not Ensure proper ventilation touch metal parts of the unit. especially in rooms with a stove or other appliances. Doing so may cause an injury. Water may enter the unit and Failure to do so may result in an degrade the insulation causing an oxygen shortage.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS For Your Safety WARNING! NOTE The power supply cord with this air conditioner contains a current DO NOT store or use gasoline or other flammable vapors or liquids in detection device designed to reduce the vicinity of this or any other appliance. the risk of fire. -
Page 6: Normal Sounds
NORMAL SOUNDS High Pitched Chatter High efficiency compressors may have a high pitched chatter Vibration during the cooling cycle. Unit may vibrate and make noise because of poor wall or window construction or incorrect installation. Sound of Rushing Air At the front of the unit, you may hear the sound of rushing air being moved by the fan Pinging or Switching... - Page 7 AIR CONDITIONER FEATURES (CONTINUED) TO ADJUST THE FAN SPEED: TO SELECT THE OPERATING MODE: Press to select one of four fan speeds: “Auto,” To choose operating mode, press the Mode button. “Low,” “Med” or “High.” Each time the button is Each time you press the button, a mode is selected in pressed, the fan speed mode is shifted.
- Page 8 AIR CONDITIONER FEATURES (CONTINUED) Shows the set temperature in “°C” or “°F” and the Auto- DISPLAYS timer settings. While on “Fan” only mode, it shows the room temperature. Displays Error Codes: AS - Room temperature sensor error - Unplug the unit and plug it back in.
-
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS Required Tools/Hardware BEFORE YOU BEGIN Tools Required (Not Included) Read these instructions completely • Pencil • Level and carefully. • Tape measure IMPORTANT- Save these instructions. • Socket wrenches • Phillips screwdriver IMPORTANT- Observe all • Adjustable wrench or pliers governing codes and ordinances. - Page 10 INSTALLATION INSTRUCTIONS (CONTINUED) Please read ALL instructions before installing. Two people are recommended to install this product. If a new electrical outlet is required, have the outlet installed by a qualified electrician before installing the unit. Preliminary Instructions Window Sash Seal Do the following before installing the unit.
- Page 11 Window Mounting Front Panel Remove Chassis 1. Pull down front grille and remove filter.(See Fig. 1.) Front Grille 2. Lift front grille upwards and place to one side. Fig. 1 Fig. 2 3. Locate and remove the four front screws. These screws will be needed to re-install the front panel later.
- Page 12 Plastic Assemble Window Filler Panels Window Filler Frame Panel 2. Slide "I" section of window filler panel into side retainer on the side of the cabinet. (See Fig. 9.) Fig. 9 Side Retainer panel frame into channel in the top angle Air Conditioner Plastic Cabinet...
- Page 13 Extend Window Filler Panels Assemble Window Filler Panels 7/16" Locking Screw and Washer Fig. 15 Install Window Lock and Sash Seal 1.Trim sash seal to fit window width. Insert Window Sash Seal into space between upper and lower sashes. Fig. 16 Install Chassis into Cabinet and Install Front to Unit Safety Lock...
- Page 14 The air conditioner has a slide-out chassis so that it can be installed through an outside wall as specified below: Max. Wall Thickness: 12" or 10" never be blocked. 3-3/8" (8.6cm) frame construction at ends of windows, under truss- bearing points, etc. Fig.
- Page 15 Install Cabinet 3 4 plus trim thickness of Window Mounting. to 3/8 firmly on bottom board of wooden frame. removal. (See Fig. 5.) 4. Secure bottom rail to wooden frame with two large wood Fig. 5 screws 1" (2.5 cm) long using the two holes in the bottom of the channel resting on frame.
-
Page 16: Care And Cleaning
CARE AND CLEANING CAUTION Clean air conditioner occasionally to keep it looking and operating like new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Air Filter Cleaning The air filter should be cleaned at least every two weeks or as necessary. -
Page 17: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, please review the chart below. Issue Possible Solutions • Be sure unit is not too large or too small for the area of the room. • Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the front grille of unit, such as curtains, etc. - Page 18 Your Source for Home Comfort Distributed by: Perfect Aire, LLC 5151 Belt Line Rd. Suite 878 Dallas, TX 75254 877-365-6274 www.perfectaire.us Specification and performance data is subject to change without notice. Printed in PRC...
