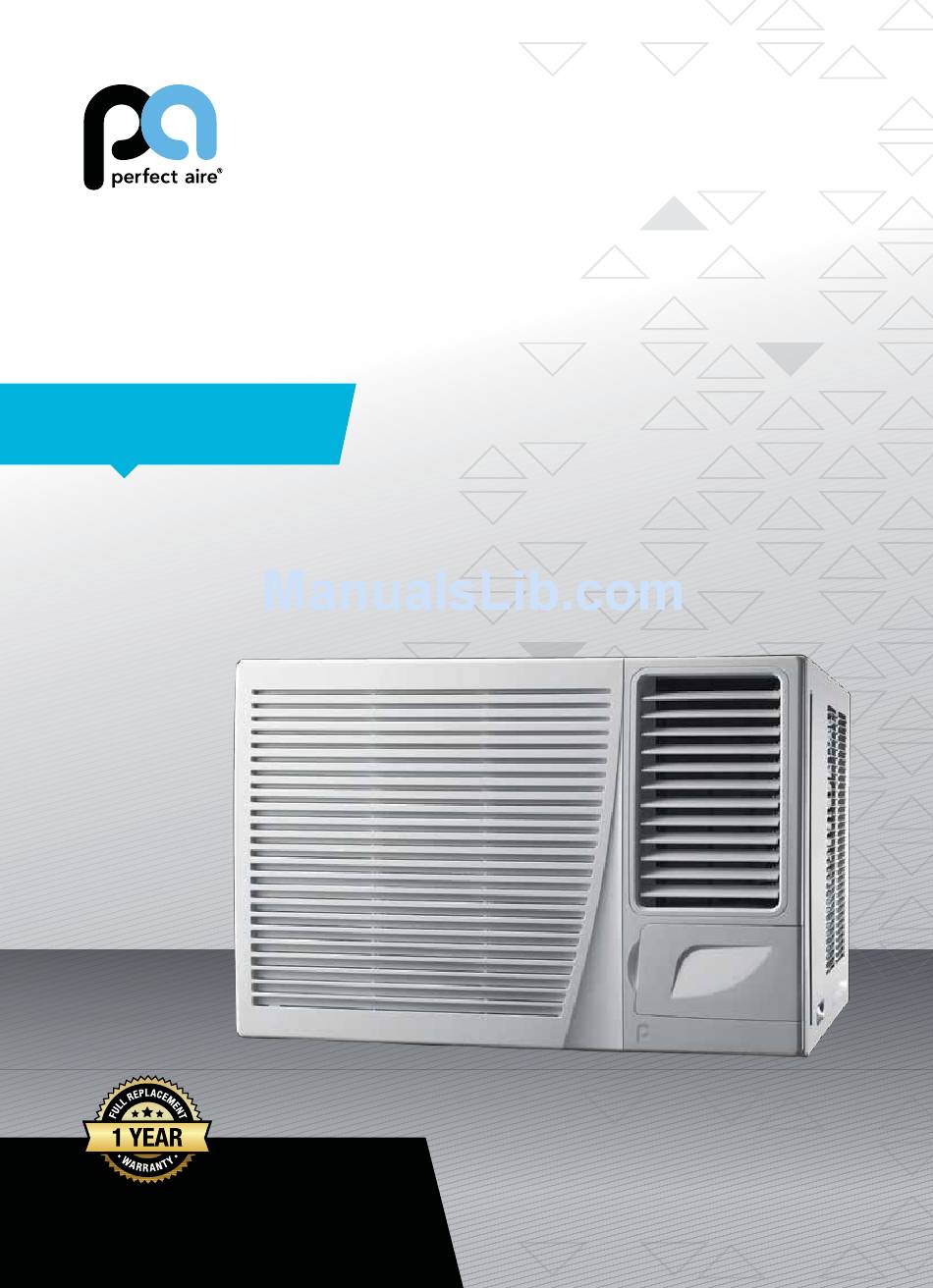

- Page 1 WINDOW AIR CONDITIONER USER MANUAL FOR MODEL: 2PAHP18002 WITH HEAT PUMP Before using your air conditioner, please read this manual carefully and keep it for future reference, along with your receipt.
- Page 2 CONSUMER PRODUCT INFORMATION For your own records, please attach a copy of your sales receipt to this manual and complete the following: Model Number: _____________________________________ Serial Number: _______________________________________ Purchase Date: ____________________________________ Store Purchased: _____________________________________ Installation Date: ___________________________________ Installation Co.: _______________________________________ Installer Name: _____________________________________ Installer Phone No.: ___________________________________...
-
Page 3: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ..............1 IMPORTANT SAFETY INSTRUCTIONS ...........3 PARTS DIAGRAM ................4 BEFORE INSTALLING ...............5 PREPARING FOR INSTALLATION ...........6 CABINET INSTALLATION ..............7 INSTALLATION INSTRUCTIONS .............9 CONTROL PANEL ................10 REMOTE CONTROL .................11 CARE & CLEANING ................14 TROUBLESHOOTING ...............15 This manual provides the information needed for proper use and maintenance of this air conditioner. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS READ SAFETY PRECAUTIONS BEFORE INSTALLATION To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE DEATH OR SERIOUS INJURY. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE MODERATE INJURY TO YOUR PERSON, OR DAMAGE TO YOUR UNIT OR OTHER PROPERTY. - Page 5 CAUTIONS When removing air filter, DO NOT touch metal parts of Doing so may cause an injury. the unit. DO NOT clean with water. Water may enter the unit and degrade the insulation causing an electric shock. Ensure proper ventilation especially in rooms with a Failure to do so may result in an oxygen shortage. ...
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS NOTE : WARNING FOR YOUR SAFETY: Do not store or use gasoline or other flammable The power supply cord with this air vapors and liquids in the vicinity of this or any other appliances. conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section WARNING - PREVENT ACCIDENTS “Operation of Current Device” (below) for details. In the event that the power To reduce the risk of fire, electrical shock, or injury to persons when using supply cord is damaged, it cannot be your air conditioner, follow basic precautions, including the following: repaired. -
Page 7: Parts Diagram
PARTS DIAGRAM 1. CABINET 2. AIR INLET 3. TOP RAIL 4. SLIDING ACCORDION PANEL 5. LOUVERS UP/DOWN ADJUSTMENT Hold the up/down air flap and manually move it upward or downward to your desired position. LEFT/RIGHT ADJUSTMENT (swing function) 6. CONTROL PANEL 7. FRONT GRILLE (Air filter is located behind the front grille) NOTE: All illustrations in this manual are for explanation purposes only. -
Page 8: Before Installing
BEFORE INSTALLING BEFORE YOU BEGIN The location should provide: • Grounded electrical 3 prong outlet within 4 ft. of Read these instructions completely and carefully. where the air conditioner power cord exists. IMPORTANT- Save these instructions. WARNING: DO NOT use an extension cord. • DO NOT block the louvers on the front panel. IMPORTANT- Observe all governing codes • DO NOT block the louvers on the outside of the and ordinances. -
Page 9: Preparing For Installation
PREPARING FOR INSTALLATION WARNING EXCESSIVE WEIGHT HAZARD! To reduce the risk of personal injury, we advise you have the assistance of 2 or more individuals while moving and installing the air conditioner. Failure to do so can result in back or other injuries. A room air conditioner can weigh between 70–240 lbs. STEP 1: 2. Remove the grounding screw found on the bottom right-hand corner and set aside to reinstall later. SLIDE OUT CHASSIS REMOVAL 1. -
Page 10: Cabinet Installation
CABINET INSTALLATION STEP 1: 6. Slide accordion panel housing into guides as far as it will go. INSTALLING TOP RAIL AND ACCORDION PANELS 7. Repeat above steps for the left accordion panel. 1. Locate top rail and accordion panels. FOR STORM WINDOWS WOOD FOR Left Panel Top Mounting Rail... - Page 11 STEP 3: 5. Attach cabinet to window sill with Type E screws. SECURING ACCORDION PANEL TO FRAME 1. Pull left-hand accordion 4 Type E Screws panel out until it reaches Front the window frame. Use a View 3/32ʺ drill bit to drill a starter hole through the hole in the accordion panel housing and into the lower window sash.
-
Page 12: Installation Instructions
INSTALLATION INSTRUCTIONS WARNING EXCESSIVE WEIGHT HAZARD! To reduce the risk of personal injury, we advise you have the assistance of 2 or more individuals while moving and installing the air conditioner. Failure to do so can result in back or other injuries. A room air conditioner can weigh between 70–240 lbs. INSTALL THE AIR CONDITIONER IN 5. Secure the front grille frame to the case with one THE CASE Type C screw. -
Page 13: Control Panel
CONTROL PANEL HEAT Mode • Press the MODE button until the HEAT indicator is on. • Press the TEMP/TIME buttons (+/–) to adjust desired room temperature on the display. POWER • Press the SPEED button to select desired fan speed TEMP/TIMER (High, Med, Low, Auto). AUTO HEAT HIGH COOL ENERGY SAVER FAN Mode FAN ONLY Use this mode to circulate the air in the room without TIMER MODE SWING SPEED... -
Page 14: Remote Control
REMOTE CONTROL 1. ON/OFF Button Press to turn the unit ON/OFF. 2. DIGITAL DISPLAY 3. MODE Button Press this button to select operating mode. 4. +/– BUTTONS These buttons are for increasing/decreasing the temperature settings within a range of 61 – 86°F (16 – 30°C) and for setting the MODE time when setting the Timer. 5. SWING Button Press to automatically swing fins left and right. 6. TIMER Button SWING Press this button to set the Timer for time Switch-On, Switch-Off or to cancel the timer. (See page 13 for more information.) SLEEP TIMER 7. - Page 15 USING THE REMOTE CONTROL COOL Mode • Press the ON/OFF button to turn the unit on. • Press the MODE button to select COOL. An arrow will appear next to this icon to indicate that it is selected. • Set the temperature using the –/+ buttons. • To select fan speed, press the FAN button until the required speed is selected (LOW/MED/HIGH/AUTO). NOTE: In COOL mode the unit automatically removes excess moisture from the atmosphere. HEAT Mode - Room Heat Pumps Heat pumps work by moving heat instead of creating it. In the summer, the cool indoor coil absorbs heat from your room and moves it outdoors, providing cooling.
- Page 16 ENERGY SAVER Mode While the unit is running press the MODE button to select Energy Saver (”SAVE”). When the set temperature is reached the compressor will shut off. The fan will continue to run 3 minutes after the compressor shuts off. The unit will not run for 10 minutes. After 10 minutes the fan will run for 1 minute and repeat the cycle. If the temperature changes the compressor will turn on until the set temperature is reached. SLEEP Function The temperature setting will gradually increase to 1ºF above the original set temperature for each of the first 2 hours. The unit will keep operating at...
-
Page 17: Care & Cleaning
CARE AND CLEANING CAUTION Clean air conditioner occasionally to keep it looking and operating like new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. NOTE: If the air filter screen is blocked by dust, the performance of the unit will be affected, the unit will be louder than normal, and power consumption will increase. Therefore, periodic cleaning of the air filter screen is necessary. NOTE: The life of your unit may be greatly reduced if you live in a salty air or other corrosive type environment. Under these conditions, the unit should be removed from its case and completely cleaned at least once a year. -
Page 18: Troubleshooting
TROUBLESHOOTING WARNING To reduce the risk of electric shock, personal injury, or death, turn the fan control to the OFF position and remove the unit plug from the wall outlet before doing any inspection or maintenance work The following is a list of problems that are sometimes encountered when using a room air conditioner. Possible cause and suggested remedies are given for each problem. If the problem cannot be fixed using the suggested remedies, see WHEN ASSISTANCE IS REQUIRED section on the next page. BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW ISSUE POSSIBLE CAUSES POSSIBLE SOLUTIONS... - Page 19 BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW ISSUE POSSIBLE CAUSES • Adjust slope of unit so it drains downward toward the exterior of the home. (See installation instructions.) WATER PUDDLES INSIDE UNIT OR IS COMING • Make sure that there is no debris blocking the drainage area of the unit. INTO ROOM • If the air conditioner operates in high humidity for a long time, moisture may be condensed and appear at the air outlets (louvers). • Unit is removing a large quantity of moisture from a humid room. This is normal during WATER DRIPPING OUTSIDE excessively humid days.
- Page 20 Distributed by: Perfect Aire, LLC 5401 Dansher Rd. Countryside, IL 60525 844-4PA-AIRE | 844-472-2473 www.perfectaire.us PA/User_2PAHP18002/11212017 Specification and performance data is subject to change without notice. Printed in China...
