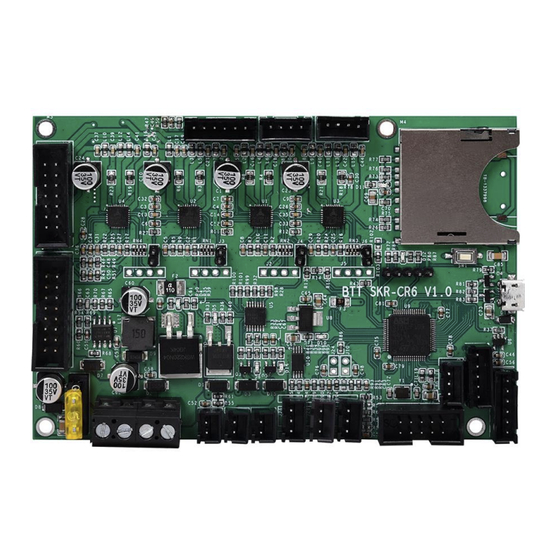

- Page 1 SHENZHEN BIGTREE TECHNOLOGY CO., LTD. SKR CR6 V1.0 mannul SHENZHEN BIGTREE TECHNOLOGY CO., LTD. BIG TREE TECH BIGTREETECH SKR CR6 V1.0 User's Instruction 【 】 Please read this manual carefully before use website：www.BIGTREE-TECH.com...
- Page 2 Shenzhen BIG TREE Technology Co., Ltd. to upgrade your CREALITY CR-6 SE 3D printer. SKR CR6 V1.0 is a direct replacement for the motherboard on the CREALITY CR-6 SE. This printer has an extruder and uses 4 TMC2209 stepper drivers.
- Page 3 5) Motor driver: TMC2209 onboard 6) Motor drive interface: X, Y, Z0, Z1, E 7) Temperature sensor interface: BED, T0 8) Display screen: BIGTREETECH-3.5 inch TFT, LCD12864, original screen 9) PC communication interface: Micro USB, easy to plug and unplug, communication baud rate 115200...
- Page 4 SHENZHEN BIGTREE TECHNOLOGY CO., LTD. SKR CR6 V1.0 mannul 4. Mainboard power wiring method The main board uses switching power supply for power supply, the wiring method is shown in the figure below The two wires on the left are the main input power wires, and the two wires on the right are the hotbed wires.
- Page 5 SHENZHEN BIGTREE TECHNOLOGY CO., LTD. SKR CR6 V1.0 mannul be recognized for data transmission. If the installation fails, you can go to our open source website: https://github.com/bigtreetech?tab=repositories find corresponding motherboard to download the driver. After the driver is installed, open the "Device Manager" and you can see the ports as shown in the figure below, indicating that the motherboard is connected to the computer normally.
- Page 6 SHENZHEN BIGTREE TECHNOLOGY CO., LTD. SKR CR6 V1.0 mannul 6. Motherboard interface description 1、Motherboard size diagram 2、Motherboard wiring diagram 6 / 8...
- Page 7 SHENZHEN BIGTREE TECHNOLOGY CO., LTD. SKR CR6 V1.0 mannul 3. Motherboard Pin Diagram For details, see Pin file information. 7.Motherboard jumper description If you need the locked-rotor detection function, you need to short the following 4 positions with a jumper cap:...
- Page 8 SHENZHEN BIGTREE TECHNOLOGY CO., LTD. SKR CR6 V1.0 mannul 8.Motherboard firmware description 1) Currently, only our open-source Marlin2.0 firmware is supported, and you can go to our open source website to find the corresponding motherboard to download. https://github.com/bigtreetech?tab=repositories 2) Marlin2.0 firmware update method: After downloading our open-source Marlin2.0 firmware, use Visual Studio Code to...
