- Page 1 EBB SB2209 USB V1.0 User Manual...
-
Page 2: Table Of Contents
BIGTREETECH EBB SB2209 USB V1.0 User Manual TABLE OF CONTENTS Revision Log ..............4 Product Profile ............5 1.1. Feature Highlights .............5 1.2. Specifications ............6 1.3. Dimensions ............7 2. Peripheral Interface ............9 2.1. Pin Description ............9 3. Interface Introduction/Connection ..........10 3.1. Power and USB Input Interface .........10 3.2. - Page 3 BIGTREETECH EBB SB2209 USB V1.0 User Manual 4.2. Firmware Update .............23 4.3. Configuring Klipper ...........24...
-
Page 4: Revision Log
BIGTREETECH EBB SB2209 USB V1.0 User Manual Revision Log Version Date Revisions v1.00 June 26th, 2024 Initial Version... -
Page 5: Product Profile

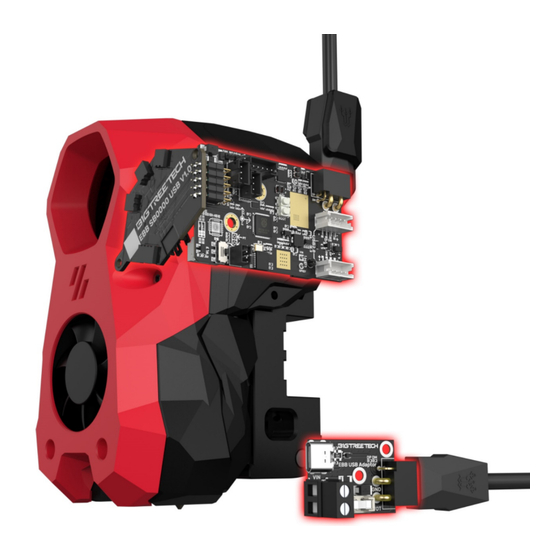

BIGTREETECH EBB SB2209 USB V1.0 User Manual 1. Product Profile The BIGTREETECH EBB SB2209 USB V1.0 is a tool board designed for the Voron StealthBurner. It features convenient, user-friendly USB communication via a dual XT30 shielded cable for stable and high communication. It also includes an TMC2209 driver and LIS2DW accelerometer. -
Page 6: Specifications
BIGTREETECH EBB SB2209 USB V1.0 User Manual 1.2. Specifications RP2040 Dual ARM Cortex-M0+ @ 133MHz Input Voltage DC12V-DC24V 9A Logic Voltage DC3.3V Heating Interface Heater Cartridge (HE0), max output current: 6A Onboard Accelerometer LIS2DW Fan Ports 2x PWM Fan Ports (FAN1, FAN2), 1x 4-pin Fan... -
Page 7: Dimensions
BIGTREETECH EBB SB2209 USB V1.0 User Manual 1.3. Dimensions... - Page 8 BIGTREETECH EBB SB2209 USB V1.0 User Manual...
-
Page 9: Peripheral Interface
BIGTREETECH EBB SB2209 USB V1.0 User Manual 2. Peripheral Interface 2.1. Pin Description For details, please refer to BIGTREETECH EBB SB2209 USB-Pin. -
Page 10: Interface Introduction/Connection
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3. Interface Introduction/Connection 3.1. Power and USB Input Interface When powered normally, the power indicator "P" stays on, and the status indicator "S" lights up when the program starts. -
Page 11: Heater Cartridge
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3.2. Heater Cartridge... -
Page 12: 100K Ntc Or Pt1000
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3.3. 100K NTC or PT1000 Note: 1. The factory default does not include the MAX31865 and related components. 2. The pull-up resistance value is 2.2K. When debugging the firmware, be careful not to incorrectly write it as 4.7K, as this can cause inaccurate temperature... -
Page 13: Probe
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3.4. Probe... -
Page 14: Endstop
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3.5. Endstop... -
Page 15: Proximity Switch
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3.6. Proximity Switch 3.6.1. Connecting the NPN Type Proximity Switch... -
Page 16: Connecting The Pnp Type Proximity Switch
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3.6.2. Connecting the PNP Type Proximity Switch Note: The interface only supports 24V proximity switches. If using an NPN type proximity switch, use a jumper to short the two pins at the "pull-up" position. -
Page 17: Connecting A Fan
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3.6.3. Connecting a Fan... -
Page 18: Stepper Motor
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3.7. Stepper Motor... -
Page 19: I 2 C
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3.8. I... -
Page 20: Usb2.0
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3.9. USB2.0 Note: The three USB2.0 interfaces can only support one camera simultaneously. It is recommended to use a camera with a resolution of 1080P or lower to maintain smooth performance. -
Page 21: Fan Connection And Voltage Selection
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3.10. Fan Connection and Voltage Selection 3.10.1. 4-pin Fan Note: The 4-pin fan interface defaults to 5V output at the factory. You will need to manually solder the fuse to the 24V side if you want to use 24V. -
Page 22: Rgb
BIGTREETECH EBB SB2209 USB V1.0 User Manual 3.11. RGB 3.12. 5V-OUT KNOMI: KNOMI 2:... -
Page 23: Klipper
4.2. Firmware Update Raspberry Pi or CB1 firmware update through DFU 1. Use the adapter board to connect the BIGTREETECH EBB SB2209 USB V1.0 to Raspberry Pi/CB1, and ensure the power cable is also connected. 2. Hold down the Boot button, then press the Reset button once to enter DFU mode. - Page 24 BIGTREETECH EBB SB2209 USB V1.0 User Manual 4. After flashing, enter ls /dev/serial/by-id/ to query the device Serial ID. 5. There is no need to manually press the Boot button to enter DFU mode for subsequent updates after the first flashing is completed. Directly enter...
- Page 25 BIGTREETECH EBB SB2209 USB V1.0 User Manual 3. Add the mainboard configuration in the "printer.cfg" file: [include sample-bigtreetech-ebb-sb-usb-v1.0.cfg] 4. Change the USB serial within the configuration file to match the actual ID of the motherboard. Configure the specific functions of the module according to the instructions in the following link: https://www.klipper3d.org/Overview.html...
- Page 26 BIGTREETECH EBB SB2209 USB V1.0 User Manual If you need further resources for this product, you can find them at [GitHub](https://github.com/bigtreetech/). If you cannot find what you need, you may contact our after-sales support(service005@biqu3d.com). If you encounter any other problems during use or have suggestions or feedback, please...
