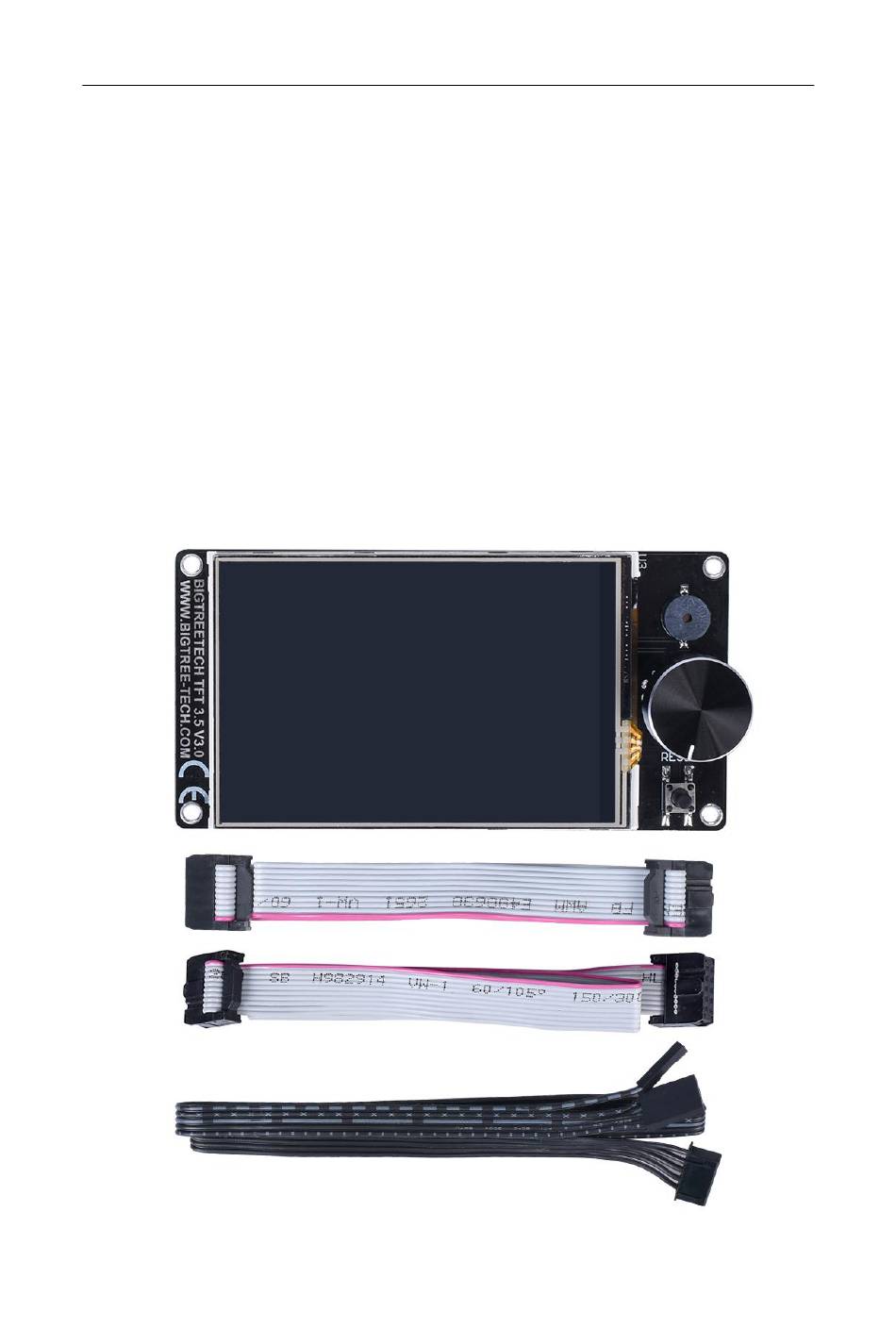

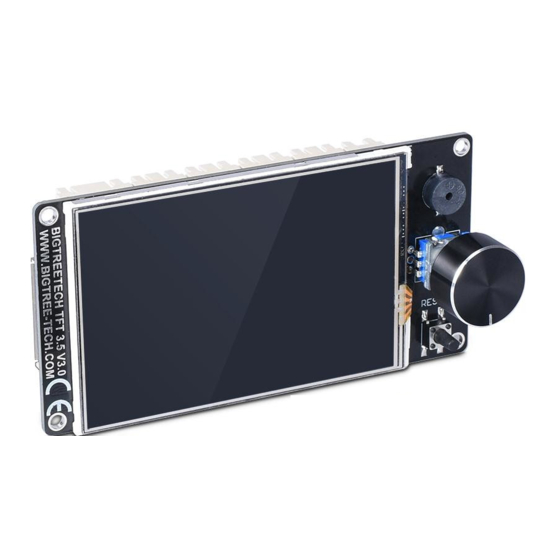

- Page 1 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH BIGTREETECH TFT35 V3.0 User Guide...
- Page 2 BIG TREE TECH Explanation of black screen in TFT35 V3.0: 1. First of all, according to the manual, when using TFT35 V3.0, common interface motherboards (such as SKR V1.3, SKR MINI V1.1, SKR Pro V1.1, etc.), EXP1, EXP2 and RS232 should be connected. After ensuring the correct line order, the connection can be used in dual mode.
- Page 3 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH When the TFT35 V3.0 is switched to the LCD screen mode, the content is not displayed: Phenomenon: when switching from touch mode to LCD mode, the phenomenon that the screen does not display contents will appear as...
- Page 4 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Essence: the main board in TFT mode has completed the initialization process. If you switch to LCD mode, there will be no data to transfer, so the LCD interface will not refresh. If you need to change the data, you can press the encoder or rotate the encoder to refresh the screen and finally display what it should display.
- Page 5 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Final statement: The TFT2.4 or TFT35 sold by our company are not equipped with SD card. The customer can only use their own SD card to update the firmware, or purchase the SD card separately. Therefore, when purchasing, please make sure whether the SD card is equipped with or not.
