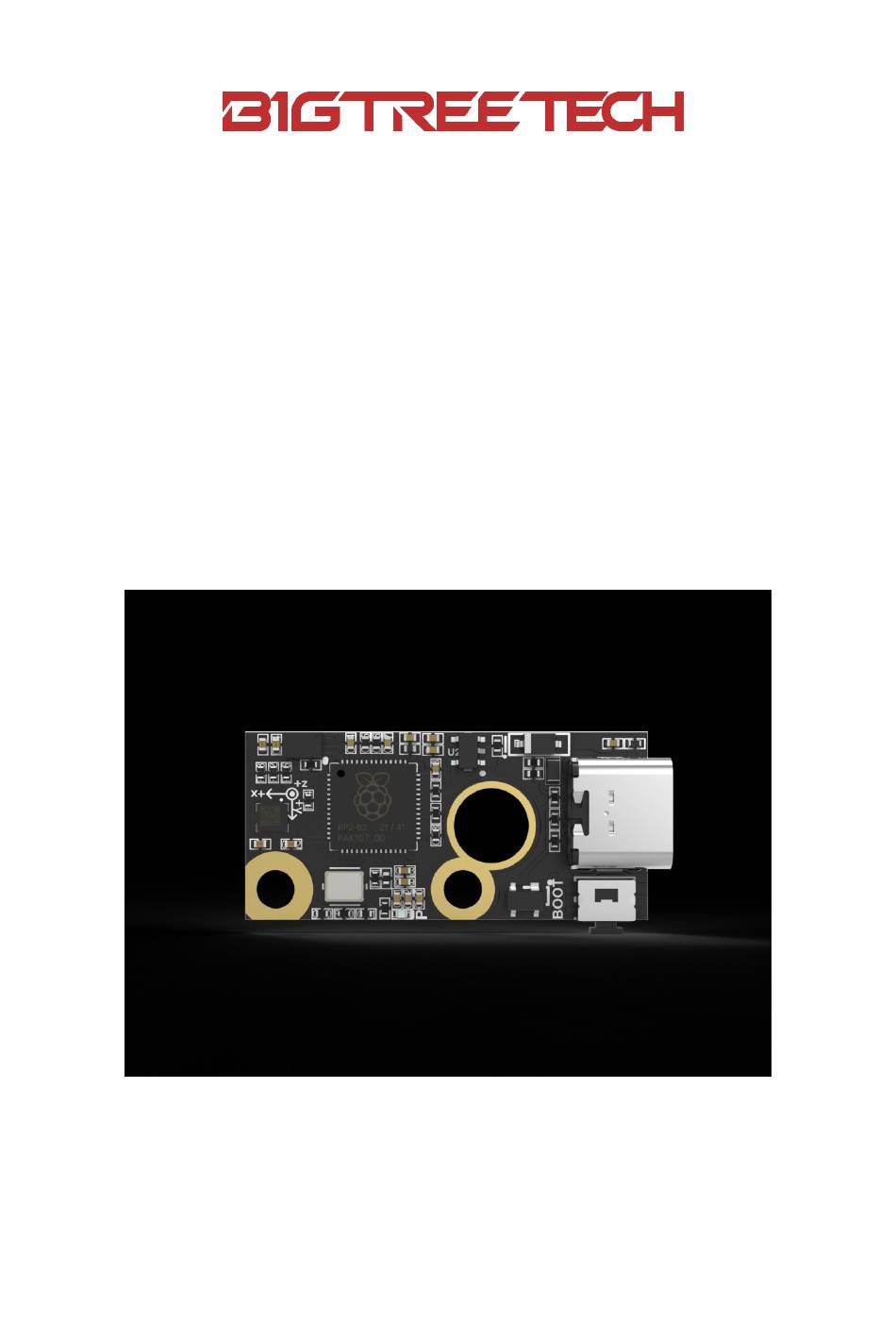

- Page 1 S2DW V1.0 User Manual...
-
Page 2: Revision Log
BIGTREETECH S2DW V1.0 User Manual Revision Log Version Date Revisions v1.00 23rd August 2023 Initial Version... -
Page 3: Table Of Contents
BIGTREETECH S2DW V1.0 User Manual CONTENTS Revision Log ..............2 Product Profile ...............4 Feature Highlights ............4 Specifications ............4 Firmware Support ............4 Dimensions ..............5 Peripheral Interfaces ............6 Pin Description ............6 Interface Introduction ............6 Connecting to BTT Pi V1.2 (Type-C) ........6 Connecting to Manta M8P (Type-C) ........7 Connecting to Manta M8P (Soldering Wires) ........7... -
Page 4: Product Profile

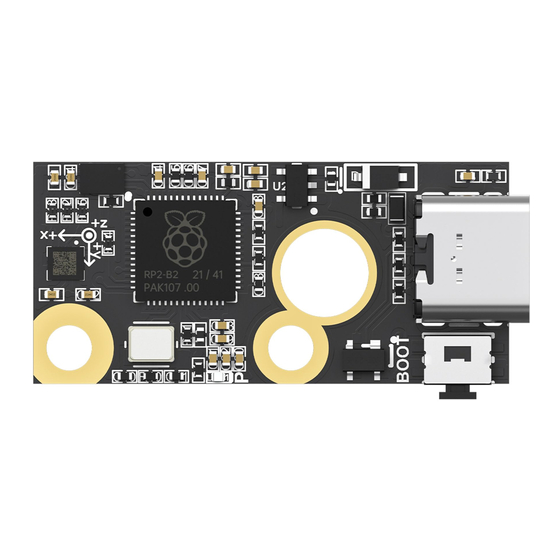

BIGTREETECH S2DW V1.0 User Manual Product Profile BIGTREETECH S2DW V1.0 is a module for printer resonance compensation. It can communicate through USB, greatly simplifying wiring. Feature Highlights The board has a reserved BOOT button for easy firmware updates. ... -
Page 5: Dimensions
BIGTREETECH S2DW V1.0 User Manual Dimensions... -
Page 6: Peripheral Interfaces
BIGTREETECH S2DW V1.0 User Manual Peripheral Interfaces Pin Description Interface Introduction Connecting to BTT Pi V1.2 (Type-C) -
Page 7: Connecting To Manta M8P (Type-C)
BIGTREETECH S2DW V1.0 User Manual Connecting to Manta M8P (Type-C) Connecting to Manta M8P (Soldering Wires) -
Page 8: Klipper Firmware
BIGTREETECH S2DW V1.0 User Manual Klipper Firmware Compiling Klipper Firmware Connect to CB1/Raspberry Pi via SSH and enter the following commands: cd ~/klipper/ make menuconfig Configure the firmware as shown in the provided image (update Klipper firmware to the latest version if options are not available). -
Page 9: Firmware Update Via Dfu
BIGTREETECH S2DW V1.0 User Manual Firmware Update via DFU Raspberry Pi or CB1 update via DFU. Hold the Boot button and connect the board to Raspberry Pi/CB1 via Type-C cable to enter DFU mode. Enter lsusb in the SSH terminal to query the DFU device ID. - Page 10 BIGTREETECH S2DW V1.0 User Manual In printer.cfg, add: [include sample-bigtreetech-lis2dw-v1.0.cfg] 4. Set the correct ID number for your board.(USB serial or canbus) Configure the module's functions according to the instructions in the link below: https://www.klipper3d.org/Config_Reference.html#lis2dw axes_map parameter needs to be set according to the direction of the module installation and the movement direction of the printer.
-
Page 11: Assembly
BIGTREETECH S2DW V1.0 User Manual Assembly Note: Avoid overtightening screws during installation to prevent damage. Example using the Voron StealthBurner: Method 1: Install on the side bracket with the dual holes (matches official spacing). Method 2: Use screws through the PCB and rubber ring on the heater block as shown. - Page 12 BIGTREETECH S2DW V1.0 User Manual If you need further resources for this product, you can find them at [GitHub](https://github.com/bigtreetech/). If you cannot find what you need, you may contact our after-sales support(service005@biqu3d.com). If you encounter any other problems during use or have suggestions or feedback, please...
