- Page 1 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH BIGTREETECH E3 RRF IDEX V1.0 Expansion board user manual...

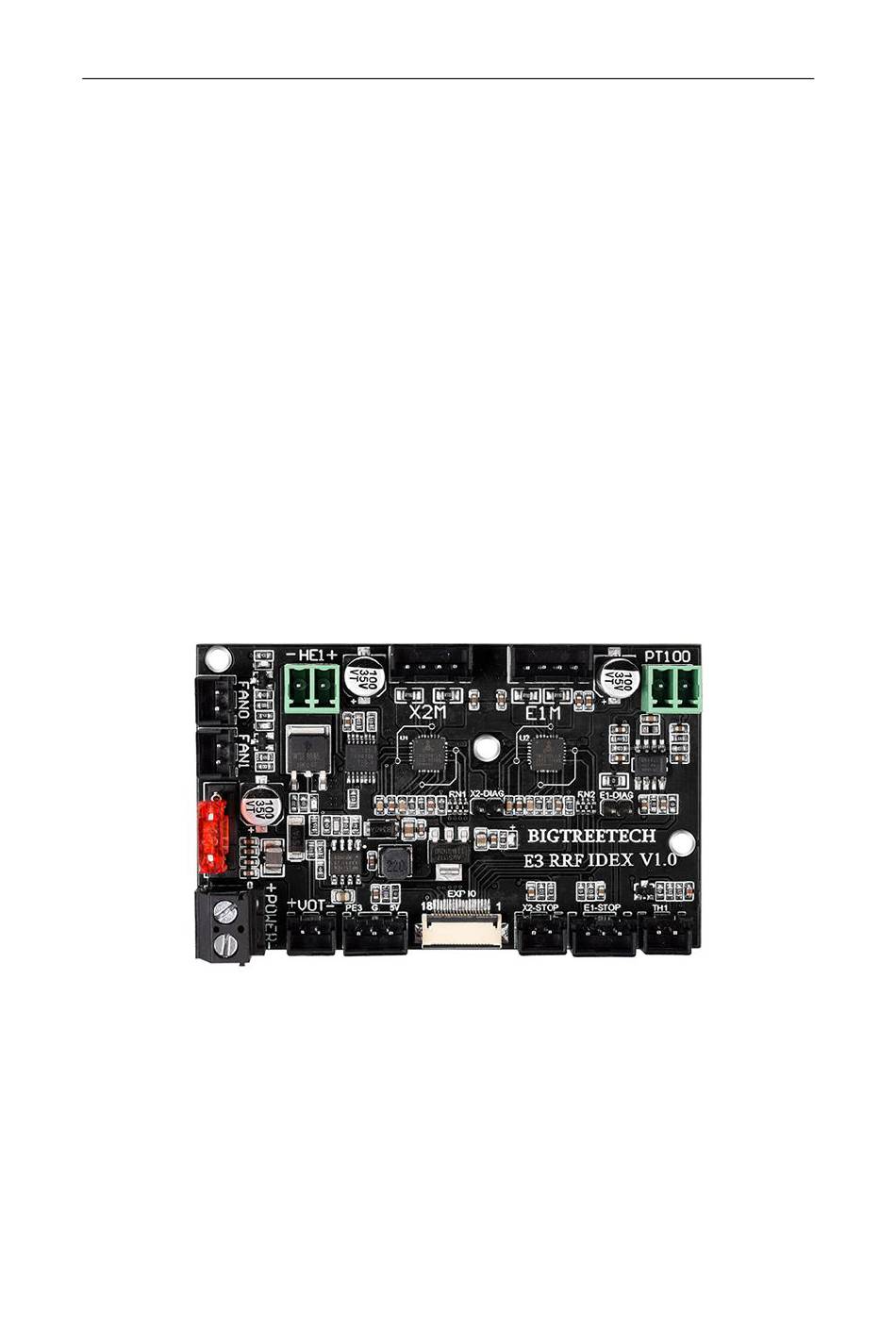

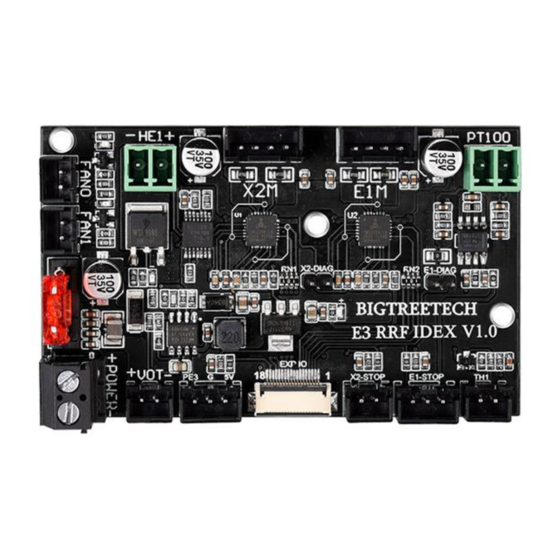

- Page 2 BIG TREE TECH I. Introduction to the motherboard E3 RRF IDEX V1.0 is an expansion board specially tailored for the E3 RRF V1.1 motherboard launched by the 3D printing team of Shenzhen Biqu Technology Co., Ltd., which enables the Ende3 series of machines to realize the function of independent dual nozzles.
- Page 3 1) Use FPC cable to connect RRF E3 V1.0 and E3 RRF IDEX V1.0 according to Pin To Pin; 2) Connect RRF E3 V1.0 to 3.3V of E3 RRF IDEX V1.0 with a DuPont cable, as shown in the figure below...
- Page 4 BIG TREE TECH 3. Connection with E3 RRF V1.1: 1) Use FPC cable to connect E3 RRF V1.1 and E3 RRF IDEX V1.0 according to Pin To Pin; 2) Insert the jumper cap into the "3.3V" position of E3 RRF IDEX V1.0 as shown...
- Page 5 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH 4. Sensorless homing function selection: Use a jumper to connect the corresponding axis as shown in the figure to use the Sensorless homing function; Note: If you select this function, you cannot use external ENDSTOP! ! !
- Page 6 If you have any good comments or suggestions on our products, you are also welcome to give us feedback, We will also carefully consider your comments or suggestions, thank you for choosing BIGTREETECH products, thank you!
