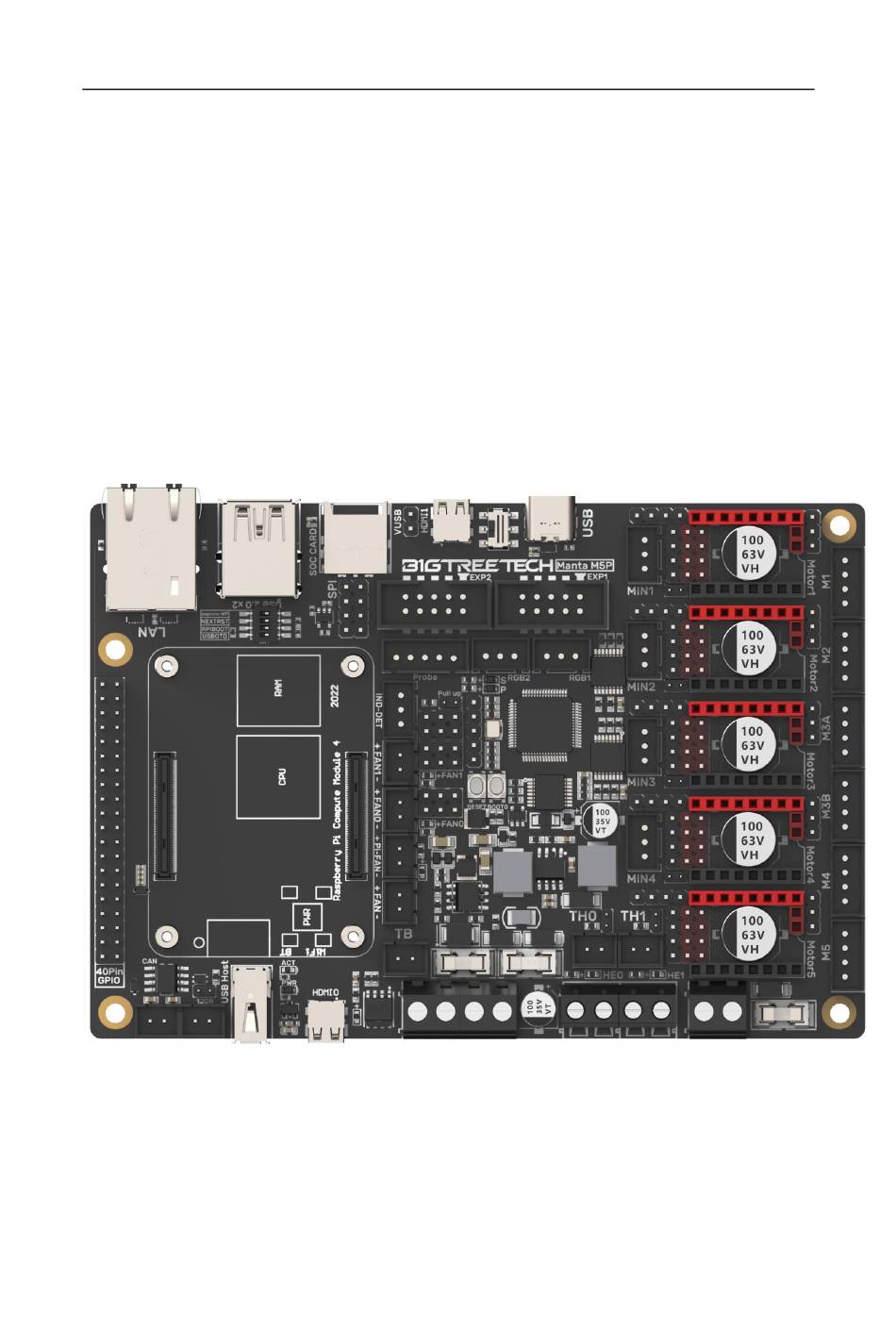

- Page 1 Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH BIGTREETECH MANTA M5P V1.0 User Manual 1 / 35...
-
Page 2: Table Of Contents
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH CONTENTS Revision History ....................4 Product Profile ..................... 5 Feature Highlights ..................5 Specifications ....................6 Dimensions ....................8 Peripheral Port ..................... 9 Connector Diagram ..................9 Pinout Diagram ..................... 9 Connection Description ..................10 USB Power Supply .................. - Page 3 System Setting (CM4) ................. 25 USB 2.0 Hub ..................25 DSI1 Display ..................25 CSI1 Camera ..................25 BIGTREETECH CB1 Usage ................26 Download OS Image ................... 26 Download and Install Raspberry Pi Imager ..........26 Write OS ....................... 26 WiFi Setting ....................
-
Page 4: Revision History
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Revision History Version Revisions Date 01.00 Original 2022/10/20 4 / 35... -
Page 5: Product Profile

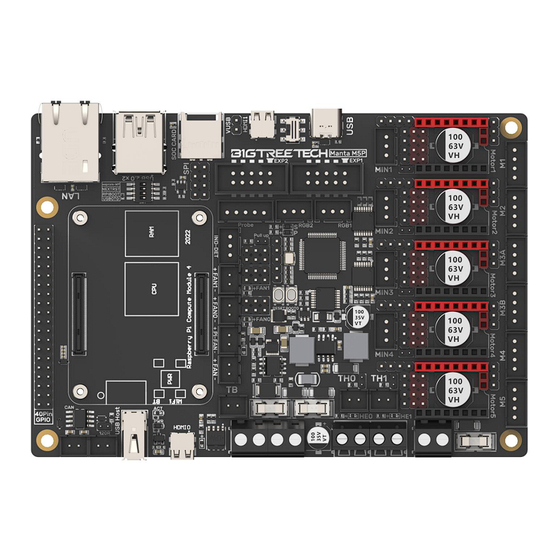

BIGTREETECH Product Profile BIGTREETECH MANTA M5P is a 32-bit motherboard developed by the 3D printing team of Shenzhen Big Tree Technology Co., Ltd. for Klipper running. It can run Klipper with a core board, which greatly eliminates the mass wiring between the motherboard and Raspberry Pi, and also greatly saves space in the chassis. -
Page 6: Specifications
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Specifications 137.5mm x 95mm, Dimensions for details please refer to BIGTREETECH MANTA M5P V1.0-SIZE-top.pdf Please refer to BIGTREETECH MANTA M5P V1.0- Mounting Size SIZE-top.pdf ARM Cortex-M0+ STM32G0B1RET6 64MHz Driver Input Voltage VIN (DC12V-24V), HV (DC24V-56V) Selectable Motherboard Input... - Page 7 Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Motor1, Motor2, Motor3 (Dual Motors Port), Motor4, Motor Driver Port Motor5 5 Channels in Total 3 x 100K NTC, two of which are selectable for NTC Thermistor and PT1000 SPI Touchscreen, LCD Display, HDMI Touchscreen,...
-
Page 8: Dimensions
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Dimensions 8 / 35... -
Page 9: Peripheral Port
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Peripheral Port Connector Diagram Pinout Diagram 9 / 35... -
Page 10: Connection Description
Connection Description USB Power Supply After the BIGTREETECH MANTA M5P has been powered, the red light D22 on the left side of the MCU will light up, indicating power on. When using only the USB to power the board or provide power through the USB, please insert the jumper cap onto the VUSB. - Page 11 Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Excitation Driver Chips MODE2 MODE1 MODE0 Microsteps Mode Full Step 2 Phase 1-2 Phase DRV8825 W1-2 Phase Maximum 32 microsteps 1/16 8.2V-45V 2.5A 1/32 at 24V T=25℃ 1/32 1/32 �� Current (��������) ��...
-
Page 12: Uart Mode Of Tmc Driver
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH UART Mode of TMC Driver e.g.: TMC2208, TMC2209, TMC2225, etc., place jumpers according to the diagram below, microstep and current can be configured in firmware. TMC Driver SPI Mode e.g.: TMC2130, TMC5160, TMC5161, etc., place jumpers according to the diagram below, microstep and current can be configured in firmware. -
Page 13: Driver Voltage Selection
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Driver Voltage Selection Install the Core Board via BTB Connection M5P+CM4: Note the direction, as shown in the figure below: 13 / 35... -
Page 14: Voltage Selection For Cnc Fan
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH M5P+CB1: Note the direction, as shown in the figure below: Voltage Selection for CNC Fan Through the jumper cap, you can set the output voltage to 5V, 12V, or 24V. Note: We are not responsible for fan burnout caused by incorrect voltage selection. -
Page 15: 100K Ntc Or Pt1000 Setting
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH 100K NTC or PT1000 Setting When using 100K NTC, no jumpers need to be connected, the pull up resistance of TH0-TH3 is 4.7K 0.1%. When using PT1000, the pins indicated in the picture below need to be connected via jumpers, parallel connection of 4.12K 0.1%... -
Page 16: Wiring Between Lcd Screen And Exp1+Exp2
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Wiring between LCD Screen and EXP1+EXP2 RGB Wiring 16 / 35... -
Page 17: Filament Sensor Wiring
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Filament Sensor Wiring 40 Pins GPIO 17 / 35... -
Page 18: Dsi/Csi Wiring
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH DSI/CSI Wiring Proximity Switch Wiring As shown in the figure below, 24V as an example, normally open (NPN type), no need for shorting through a jumper cap: 18 / 35... - Page 19 Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH As shown in the figure below, 24V as an example, normally closed (PNP type), need for shorting through a jumper cap. 19 / 35...
-
Page 20: Raspberry Pi Cm4 Usage Instructions
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Raspberry Pi CM4 Usage Instructions Download OS Image When using CM4, download the image of Fluidd, Mainsail directly, also, you can download a pure OS image from the Raspberry Pi official website and install it yourself. -
Page 21: Write Os
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Write OS CM4 LITE Version(MicroSD Card) 1. Insert MicroSD into your computer via a card reader. 2. Choose OS. 3. Select "Use custom", then select the image that you downloaded. 21 / 35... - Page 22 Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH 4. Click the settings icon in the lower right corner. 5. "Enable SSH" and then click "Save", there are other functions that can be set in this interface, please modify them according to your needs. Details are as follows: Set hostname: raspberrypi.local...
- Page 23 Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH 6. Select the MicroSD card and click "WRITE" (WRITE the image will format the MicroSD card. Be careful not to select the wrong storage device, otherwise the data will be formatted). 7. Wait for the writing to finish.
-
Page 24: Cm4 Emmc Version
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH CM4 eMMC Version (Note: the eMMC version will not run the system from the MicroSD card.) 1. Install rpiboot For Windows: http://github.com/raspberrypi/usbboot/raw/master/win32/rpiboot_setup.exe For Mac and Linux https://github.com/raspberrypi/usbboot#building 2. Turn DIP switch 4 (USBOTG), 3 (RPIBOOT) to ON to enter BOOT mode. -
Page 25: System Setting (Cm4)
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH System Setting (CM4) USB 2.0 Hub MANTA M5P is equipped with a USB 2.0 Hub. In order to save power consumption, the USB port of CM4 is disabled by default. If you need to enable it, you need to add the following content in the config.txt file:... -
Page 26: Bigtreetech Cb1 Usage
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH BIGTREETECH CB1 Usage Download OS Image When using CB1, you can only download and install the OS image provided by BIGTREETECH. https://github.com/bigtreetech/CB1/releases Download and Install Raspberry Pi Imager Install the official Raspberry Pi Imager: https://www.raspberrypi.com/software/, This software can also write the OS image of CB1. - Page 27 Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH 3. Select "Use custom", then select the image that you downloaded. 4. Select the MicroSD card and click "WRITE" (WRITE the image will format the MicroSD card. Be careful not to select the wrong storage device, otherwise the data will be formatted).
-
Page 28: Wifi Setting
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH 5. Wait for the writing to finish. WiFi Setting Note: This step can be skipped if you are using a network cable connection. CB1 cannot directly use the Raspberry Pi Imager to set the WiFi name and password like CM4. - Page 29 Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Open it with Notepad, replace WIFI-SSID with your WiFi name, and PASSWORD with your password. 29 / 35...
-
Page 30: Configure The Motherboard
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Configure the Motherboard SSH Connect to Device 1. Install the ssh application Mobaxterm: https://mobaxterm.mobatek.net/download-home-edition.html 2. Insert MicroSD card to MANTA M5P, and wait for the system to load after power on, approx. 1-2min. - Page 31 Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH 6. Open Mobaxterm and click "Session", and click "SSH", inset the device IP into Remote host, and click "OK" (Note: your computer and the device needs to be in the same network). 7. Login:...
-
Page 32: Compile Mcu Firmware
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Compile MCU Firmware 1. After SSH is successfully connected to the device, enter in the terminal: cd ~/klipper/ make menuconfig Compile the firmware with the following configuration(if the options below are not available, please update your Klipper source code to the newest version). -
Page 33: Firmware Update
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Firmware Update Update Using SD Card 1. Rename klipper.bin to "firmware.bin", copy it to the root directory of the SD card, insert the SD card into the SD card slot of the MANTA M5P, click the reset button, or power on again, the firmware will be updated automatically, after the update is complete, "firmware.bin"... -
Page 34: Configure Klipper
Shenzhen Big Tree Technology Co., Ltd. BIGTREETECH Configure Klipper 1. Enter your device IP address into your browser, and find the reference config for the motherboard in the directory shown below, if there is no such config available, update your Klipper source code to the newest version or download it from GitHub: https://github.com/bigtreetech/Manta-M8P. -
Page 35: Cautions
If you encounter other problems during use, feel free to contact us, and we are answering them carefully; any good opinions or suggestions on our products are welcome, too and we will consider them carefully. Thank you for choosing BIGTREETECH. Your support means a lot to us! 35 / 35...
