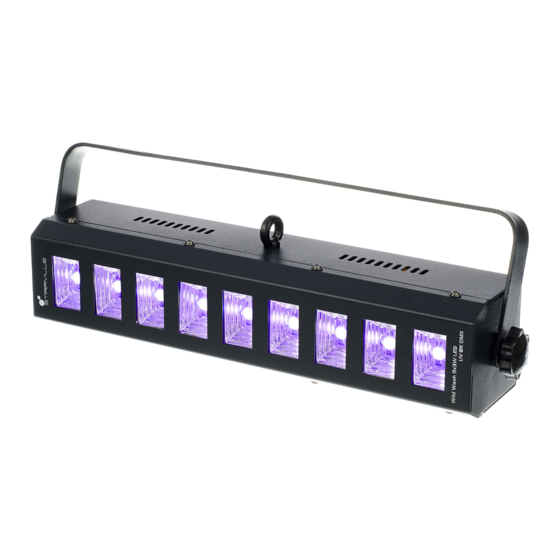

- Page 1 Wild Wash 9x3W LED UV BK DMX LED Floodlight...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 11.05.2022, ID: 426835 (V3)
-
Page 3: Table Of Contents
Connections and controls........................21 Operating..............................23 7.1 Starting the device........................... 23 7.2 Main menu............................23 7.3 Menu overview..........................25 7.4 Functions in DMX mode 2Ch-1....................26 7.5 Functions in DMX mode 2Ch-2....................26 Wild Wash 9x3W LED UV BK DMX LED Floodlight... - Page 4 Table of Contents 7.6 Functions in DMX mode 11Ch..................... 27 Technical specifications........................29 Plug and connection assignments....................31 Troubleshooting............................32 Cleaning............................... 34 Protecting the environment......................35 Wild Wash 9x3W LED UV BK DMX LED Floodlight...
- Page 5 Wild Wash 9x3W LED UV BK DMX LED Floodlight...
-
Page 6: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Wild Wash 9x3W LED UV BK DMX LED Floodlight... -
Page 7: Further Information
Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. Wild Wash 9x3W LED UV BK DMX LED Floodlight... -
Page 8: Notational Conventions
Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Wild Wash 9x3W LED UV BK DMX LED Floodlight... - Page 9 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Wild Wash 9x3W LED UV BK DMX LED Floodlight...
- Page 10 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. Wild Wash 9x3W LED UV BK DMX LED Floodlight...
-
Page 11: Safety Instructions
Extend the operating life of the device by regular breaks and by avoiding frequent switching on and off. The device is not suitable for continuous operation. Wild Wash 9x3W LED UV BK DMX LED Floodlight... - Page 12 Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. WARNING! Eye damage caused by high light intensity Never look directly into the light source. Wild Wash 9x3W LED UV BK DMX LED Floodlight...
- Page 13 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Wild Wash 9x3W LED UV BK DMX LED Floodlight...
- Page 14 Possible damage due to installation of a wrong fuse The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used. Wild Wash 9x3W LED UV BK DMX LED Floodlight...
-
Page 15: Features
For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. Wild Wash 9x3W LED UV BK DMX LED Floodlight... -
Page 16: Installation
Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. Wild Wash 9x3W LED UV BK DMX LED Floodlight... - Page 17 For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Wild Wash 9x3W LED UV BK DMX LED Floodlight...
- Page 18 Installation Please note that this device must not be connected to a dimmer. Wild Wash 9x3W LED UV BK DMX LED Floodlight...
-
Page 19: Starting Up
Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Wild Wash 9x3W LED UV BK DMX LED Floodlight... - Page 20 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). Wild Wash 9x3W LED UV BK DMX LED Floodlight...
-
Page 21: Connections And Controls
Connections and controls Connections and controls Rear panel Wild Wash 9x3W LED UV BK DMX LED Floodlight... - Page 22 [DOWN]: Decreases the displayed value by one. [ENTER]: Selects an option of the respective operating mode. 5 IEC chassis plug for the mains cable with fuse holder. 6 Bracket for floor placement or hanging. Wild Wash 9x3W LED UV BK DMX LED Floodlight...
-
Page 23: Operating
This setting is only relevant if the device is controlled via a DMX controller. Press [MODE] repeatedly until ‘Chnd’ appears in the display. Press [ENTER], then use [UP] and [DOWN] to select the desired DMX mode (2CH1, 2CH2 or 11CH) and confirm with [ENTER]. Wild Wash 9x3W LED UV BK DMX LED Floodlight... - Page 24 ( ‘0’ ) and 99 ( ‘99’ ) and confirm with [ENTER]. Firmware version Press [MODE] repeatedly until ‘vEr’ appears in the display. Press [ENTER] to let the display show the currently used firmware version. Confirm with [ENTER]. Wild Wash 9x3W LED UV BK DMX LED Floodlight...
-
Page 25: Menu Overview
Confirm with [ENTER]. 7.3 Menu overview MENU Temp Addr Chnd Shou SPEE Soun SENS A001 SP 0 vX.X 2Ch1 Sh 0 A512 2Ch2 Ch15 SP99 11Ch Wild Wash 9x3W LED UV BK DMX LED Floodlight... -
Page 26: Functions In Dmx Mode 2Ch-1
Strobe effect, increasing frequency 7.5 Functions in DMX mode 2Ch-2 Channel Value Function 0 … 9 All LEDs off 10 … 249 Auto show selection 250 … 255 All LEDs on Wild Wash 9x3W LED UV BK DMX LED Floodlight... -
Page 27: Functions In Dmx Mode 11Ch
0 … 255 Brightness LED 1 (0 % to 100 %) 0 … 255 Brightness LED 2 (0 % to 100 %) 0 … 255 Brightness LED 3 (0 % to 100 %) Wild Wash 9x3W LED UV BK DMX LED Floodlight... - Page 28 0 … 255 Brightness LED 7 (0 % to 100 %) 0 … 255 Brightness LED 8 (0 % to 100 %) 0 … 255 Brightness LED 9 (0 % to 100 %) Wild Wash 9x3W LED UV BK DMX LED Floodlight...
-
Page 29: Technical Specifications
Output connections DMX control XLR chassis socket, 3-pin Power consumption 34 W Supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, fast- acting Wild Wash 9x3W LED UV BK DMX LED Floodlight... - Page 30 350 mm × 125 mm × 75 mm Housing colour Black Weight 1.3 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Further information Type Rechargeable battery operation Wild Wash 9x3W LED UV BK DMX LED Floodlight...
-
Page 31: Plug And Connection Assignments
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) Wild Wash 9x3W LED UV BK DMX LED Floodlight... -
Page 32: Troubleshooting
Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Wild Wash 9x3W LED UV BK DMX LED Floodlight... - Page 33 DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Wild Wash 9x3W LED UV BK DMX LED Floodlight...
-
Page 34: Cleaning
Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. Wild Wash 9x3W LED UV BK DMX LED Floodlight... -
Page 35: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Wild Wash 9x3W LED UV BK DMX LED Floodlight... - Page 36 Notes Wild Wash 9x3W LED UV BK DMX LED Floodlight...
- Page 37 Notes Wild Wash 9x3W LED UV BK DMX LED Floodlight...
- Page 38 Notes Wild Wash 9x3W LED UV BK DMX LED Floodlight...
- Page 40 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
