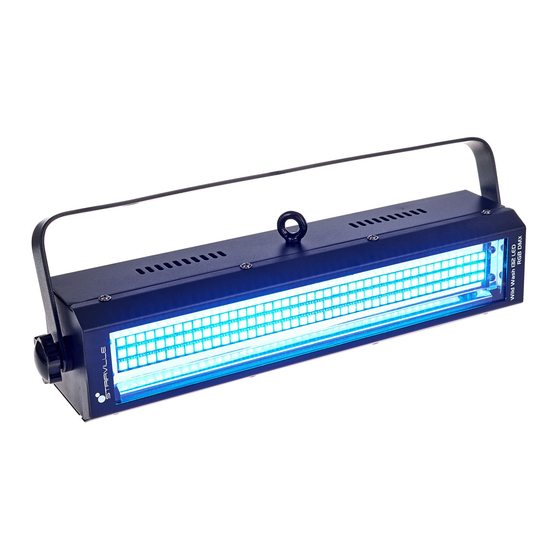

Wild Wash
132 LED RGB DMX,
132 LED White DMX,
648 LED RGB DMX
LED Floodlight

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wild Wash 132 LED RGB DMX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stairville Wild Wash 132 LED RGB DMX

Summary of Contents for Stairville Wild Wash 132 LED RGB DMX

  • Page 1 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 29.04.2022, ID: 399664, 399663, 399658 (V2)

  • Page 3: Table Of Contents

    7.2 Main menu............................28 7.3 Menu overview..........................38 7.4 Functions in DMX mode 1ch......................40 7.5 Functions in DMX mode 2Ch (model versions with white LEDs)........41 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 4 7.14 Functions in DMX mode 6Ch (model versions with RGB LEDs)........56 Technical specifications........................58 Plug and connection assignments....................64 Troubleshooting............................65 Cleaning............................... 67 Protecting the environment......................68 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 5 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 6: General Information

    Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 7: Further Information

    Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 8: Notational Conventions

    In the electronic version of the manual, you can click the cross-reference to jump to the specified location. Example: See Ä ‘Cross-references’ on page 8. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 9: Symbols And Signal Words

    This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 10 General information Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 11: Safety Instructions

    Extend the operating life of the device by regular breaks and by avoiding frequent switching on and off. The device is not suitable for continuous operation. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 12 Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. WARNING! Eye damage caused by high light intensity Never look directly into the light source. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 13 Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 14 The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 104 °F (40 °C). Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 15: Features

    Equipped with SMD LEDs with 0.2 W power consumption each, depending on the model version: – Stairville Wild Wash 132 LED RGB DMX (item no. 399664): 132 tricolour LEDs (RGB) – Stairville Wild Wash 132 LED White DMX (item no. 399663): 132 cold white LEDs –...
  • Page 16 You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 17: Installation

    Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 18 For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 19 Installation Please note that this device must not be connected to a dimmer. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 20: Starting Up

    Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 21 Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 22 DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 23: Connections And Controls

    Connections and controls Connections and controls Stairville Wild Wash 132 LED RGB DMX (item no. 399664) & DMX IN DMX OUT MODE UP DOWN ENTER ö Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 24 Stairville Wild Wash 132 LED White DMX (item no. 399663) & DMX IN DMX OUT Wild Wash 132 LED CW MODE UP DOWN ENTER ö Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 25 Stairville Wild Wash 648 LED RGB DMX (item no. 399658) DMX IN DMX OUT Wild Wash 648 LED RGB MODE UP DOWN ENTER ö & Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 26 5 Safety cable eyelet. 6 Two-piece bracket for hanging or installation and for securing the safety cable 7 Locking screw for fixing the spotlight Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 27: Operating

    The device is then ready for use. The display shows the operating mode that was selected when the unit was last powered off. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 28: Main Menu

    [ENTER]. Use [UP] and [DOWN] to select the desired DMX address between 1 ( ‘A001’ ) and 512 ( ‘A512’ ) and press [ENTER]. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 29 To adjust the Strobe effect, use [UP] and [DOWN] to select a value between ‘CF01’ (Strobe fre‐ quency approx. 1 Hz) and ‘CF99’ (Strobe frequency approx. 30 Hz) or ‘CF00’ (continuous light, no Strobe effect) and press [ENTER]. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 30 To adjust the Strobe effect, use [UP] and [DOWN] to select a value between ‘CF01’ (Strobe fre‐ quency approx. 1 Hz) and ‘CF99’ (Strobe frequency approx. 30 Hz) or ‘CF00’ (continuous light, no Strobe effect) and press [ENTER]. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 31 [DOWN] to select a value between ‘CM01’ and ‘CM015’ and press [ENTER]. The table below shows the colour assignment. Setting Colour CM01 CM02 Amber CM03 Warm yellow CM04 Yellow CM05 Green CM06 Turquoise CM07 Cyan Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 32 Operating Setting Colour CM08 Blue CM09 Lavender CM10 Mauve CM11 Magenta CM12 Pink CM13 Warm white CM14 White CM15 Cold white Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 33 To adjust the Strobe effect, use [UP] and [DOWN] to select a value between ‘JF01’ (flash fre‐ quency approx. 1 Hz) and ‘CF99’ (flash frequency approx. 30 Hz) or ‘CF00’ (continuous light, no Strobe effect) and press [ENTER]. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 34 To adjust the Strobe effect, use [UP] and [DOWN] to select a value between ‘FF01’ (flash fre‐ quency approx. 1 Hz) and ‘FF99’ (flash frequency approx. 30 Hz) or ‘FF00’ (continuous light, no Strobe effect) and press [ENTER]. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 35 Press [MODE] repeatedly until ‘AUTO’ appears in the display and press [ENTER]. For effect speed, use [UP] and [DOWN] to select a value between ‘AU00’ (minimum speed) and ‘AU99’ (maximum speed) and press [ENTER]. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 36 Press [MODE] repeatedly until ‘SOUN’ appears in the display and press [ENTER]. For micro‐ phone sensitivity, use [UP] and [DOWN] to select a value between ‘SO00’ (minimum sensitivity) and ‘SO99’ (maximum sensitivity) and press [ENTER]. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 37 Press [MODE] repeatedly until ‘SLAV’ appears in the display and press [ENTER]. The slave device now copies exactly the actions of the master device. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 38: Menu Overview

    MENU xChx Axxx Cxxx FAxx AUTO SLAV SOUN A001 C100 FA00 AU00 S000 A512 C199 FA99 AU99 S099 3Ch1 CF00 FF01 3Ch2 CF99 FF99 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 39 AU00 S000 2Ch1 A512 C199 CM15 JU99 FA99 AU99 S099 2Ch2 C200 JF00 FF01 3Ch1 C299 JF99 FF99 3Ch2 C300 3Ch3 C399 CF00 CF99 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 40: Functions In Dmx Mode 1Ch

    Channel Value Function Strobe 0 … 10 LEDs off (blackout) 11 … 255 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 41: Functions In Dmx Mode 2Ch (Model Versions With White Leds)

    6 … 10 LEDs off (blackout) 11 … 250 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 … 255 LEDs on Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 42: Functions In Dmx Mode 2Ch1 (Model Versions With Rgb Leds)

    22 … 29 Warm yellow 30 … 37 Yellow 38 … 45 Green 46 … 53 Turquoise 54 … 61 Cyan 62 … 69 Blue Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 43 118 … 125 Cold white 126 … 128 Ending colour change 129 … 192 Colour change, increasing speed 193 … 255 Gradual colour change, increasing speed Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 44: Functions In Dmx Mode 2Ch2

    6 … 10 LEDs off (blackout) 11 … 250 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 … 255 LEDs on Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 45: Functions In Dmx Mode 3Ch1

    Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 … 255 LEDs on Flash impulse 0 … 255 Flash impulse duration, increasing from 0 ms to 510 ms Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 46: Functions In Dmx Mode 3Ch2 (Model Versions With Rgb Leds)

    251 … 255 LEDs on Colour macro 0 … 5 LEDs off (blackout) 6 … 13 14 … 21 Amber 22 … 29 Warm yellow Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 47 94 … 101 Pink 102 … 109 Warm white 110 … 117 White 118 … 125 Cold white 126 … 128 Ending colour change Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 48 Operating Channel Value Function 129 … 192 Colour change, increasing speed 193 … 255 Gradual colour change, increasing speed Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 49: Functions In Dmx Mode 3Ch2 (Model Versions With White Leds)

    128 … 250 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 … 255 LEDs on, brightness controlled by channel 1 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 50: Functions In Dmx Mode 3Ch3 (Model Versions With Rgb Leds)

    Intensity red (0 % to 100 %) 0 … 255 Intensity green (0 % to 100 %) 0 … 255 Intensity blue (0 % to 100 %) Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 51: Functions In Dmx Mode 4Ch (Model Versions With Rgb Leds)

    128 … 250 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 … 255 LEDs on, brightness controlled by channel 1 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 52 46 … 53 Turquoise 54 … 61 Cyan 62 … 69 Blue 70 … 77 Lavender 78 … 85 Mauve 86 … 93 Magenta Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 53 193 … 255 Gradual colour change, increasing speed Sound control 0 … 5 Sound control off 6 … 255 Sound control on, increasing sensitivity Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 54: Functions In Dmx Mode 5Ch (Model Versions With White Leds)

    128 … 250 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 … 255 LEDs on, brightness controlled by channel 1 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 55 Automatic Strobe programme speed, increasing if channel 5 = 0…5) Sound control 0 … 5 Sound control off 6 … 255 Sound control on, increasing sensitivity Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 56: Functions In Dmx Mode 6Ch (Model Versions With Rgb Leds)

    128 … 250 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 … 255 LEDs on, brightness controlled by channel 1 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 57 0 … 255 Intensity blue (0 % to 100 %) Sound control 0 … 5 Sound control off 6 … 255 Sound control on, increasing sensitivity Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 58: Technical Specifications

    XLR chassis socket, 3-pin Power consumption 30 W Supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, fast-acting Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 59 310 mm × 70 mm × 70 mm Weight 1.05 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 60 XLR chassis socket, 3-pin Power consumption 30 W Supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, fast-acting Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 61 310 mm × 70 mm × 70 mm Weight 1.05 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 62 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, fast-acting Degree of protection IP20 Mounting options Hanging, standing Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 63 20 %…80 % (non-condensing) Further information Suitable for outdoor use LED type Floor housing Fanless Remote control Not possible wireless DMX Housing colour Black Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 64: Plug And Connection Assignments

    XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 65: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 66 DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 67: Cleaning

    Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 68: Protecting The Environment

    When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
