Chapter 5: Working with BLDS™

examples

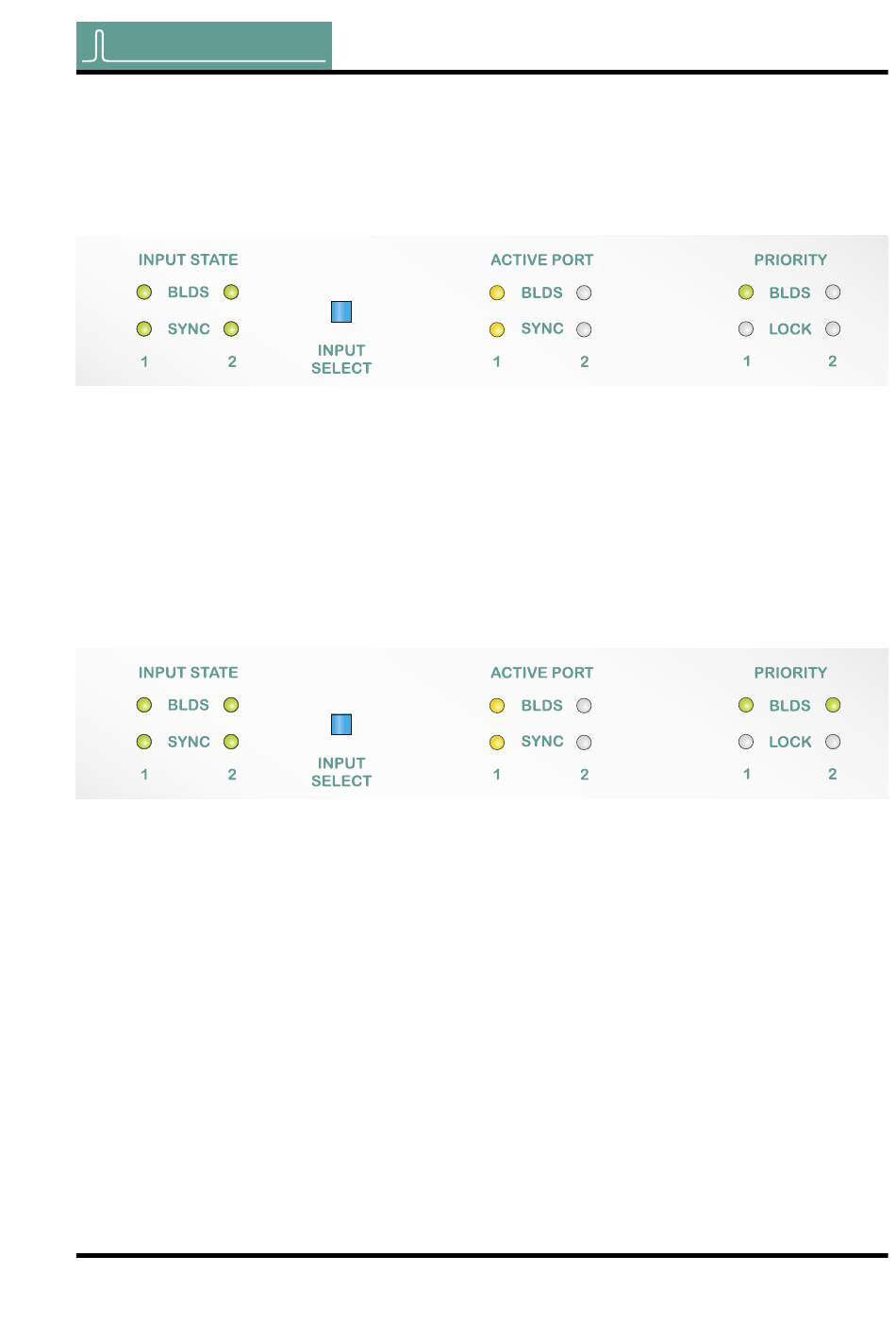

example 1 - blDs, priority input 1
Both MADI inputs detect a valid input signal containing
a BLDS signal. Input 1 is prioritized and active. If input
1 fails (BLDS error), input 2 is used. Once input 1 re-
gains signal the switch will revert to input 1.
example 2 - blDs, no priority
Both MADI inputs detect a valid input signal containing
a BLDS signal. No input is prioritized and input 1 is ac-
tive. If input 1 fails (BLDS error), input 2 is used. Once
input 1 regains signal the switch will remain at input 2.
