Chapter 4: Operation
button
-
-
Input Select
Set
page 34 of 56

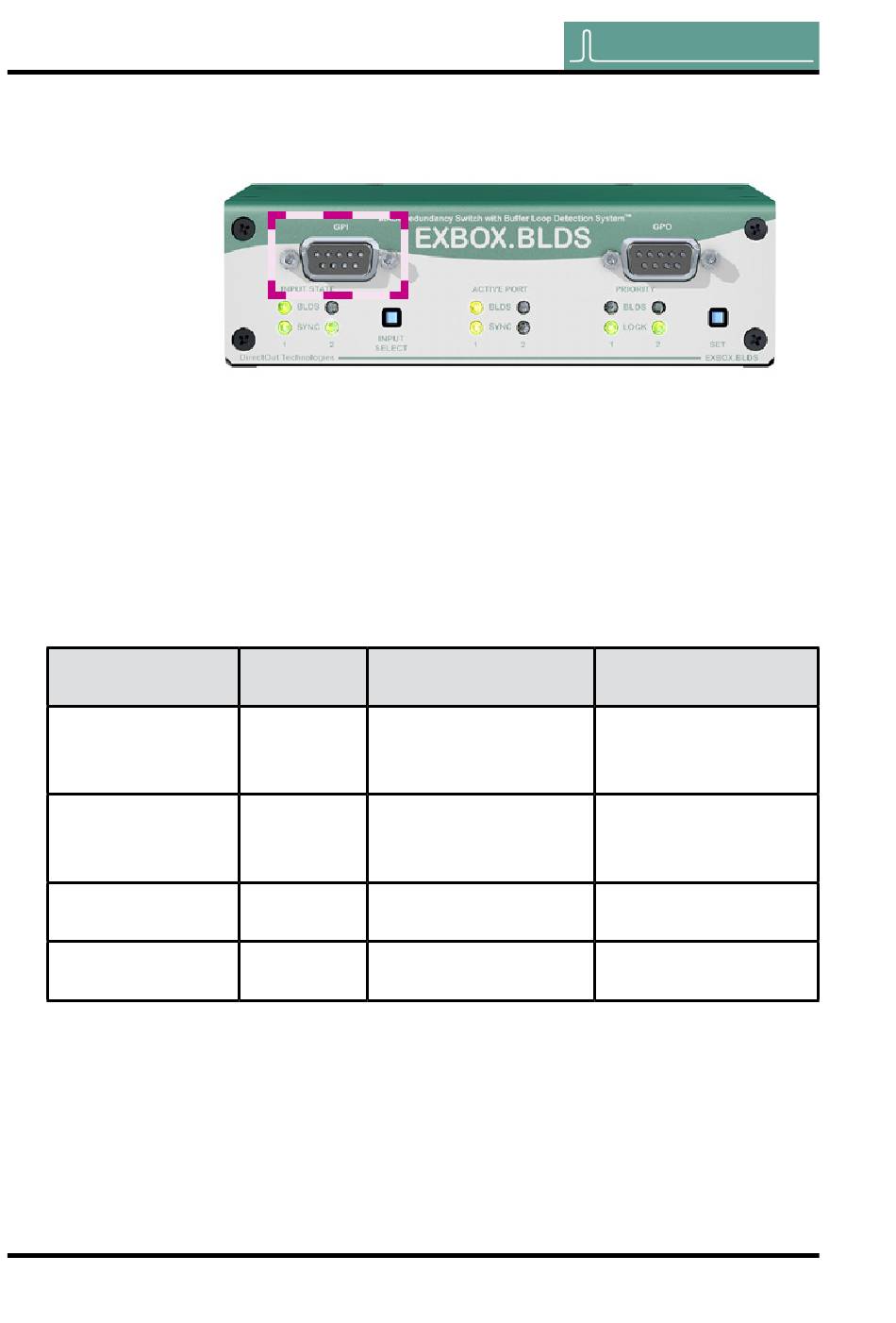

Control via gpi

Four GPIs offer full control of the device via remote or
external equipment.
Each GPI can be triggered by connecting the input pin
with ground (GND) or by a voltage source between in-
put pin and ground. The high level of the voltage may
range between 2 V and 24 V due to a safety limiter in
the input.
gpi
1
2
3
4
See „DSUB-9 - GPI / GPO" on page 49 for wiring
details.
EXBOX.BLDS Manual Version 1.1
effect
Force Input 1 or
trigger watchdog
Force Input 2 or
trigger watchdog
Selection Input
Selection Priority
DirectOut Technologies
Characteristics
switch*
switch*
push button
push button
