DirectOut Technologies

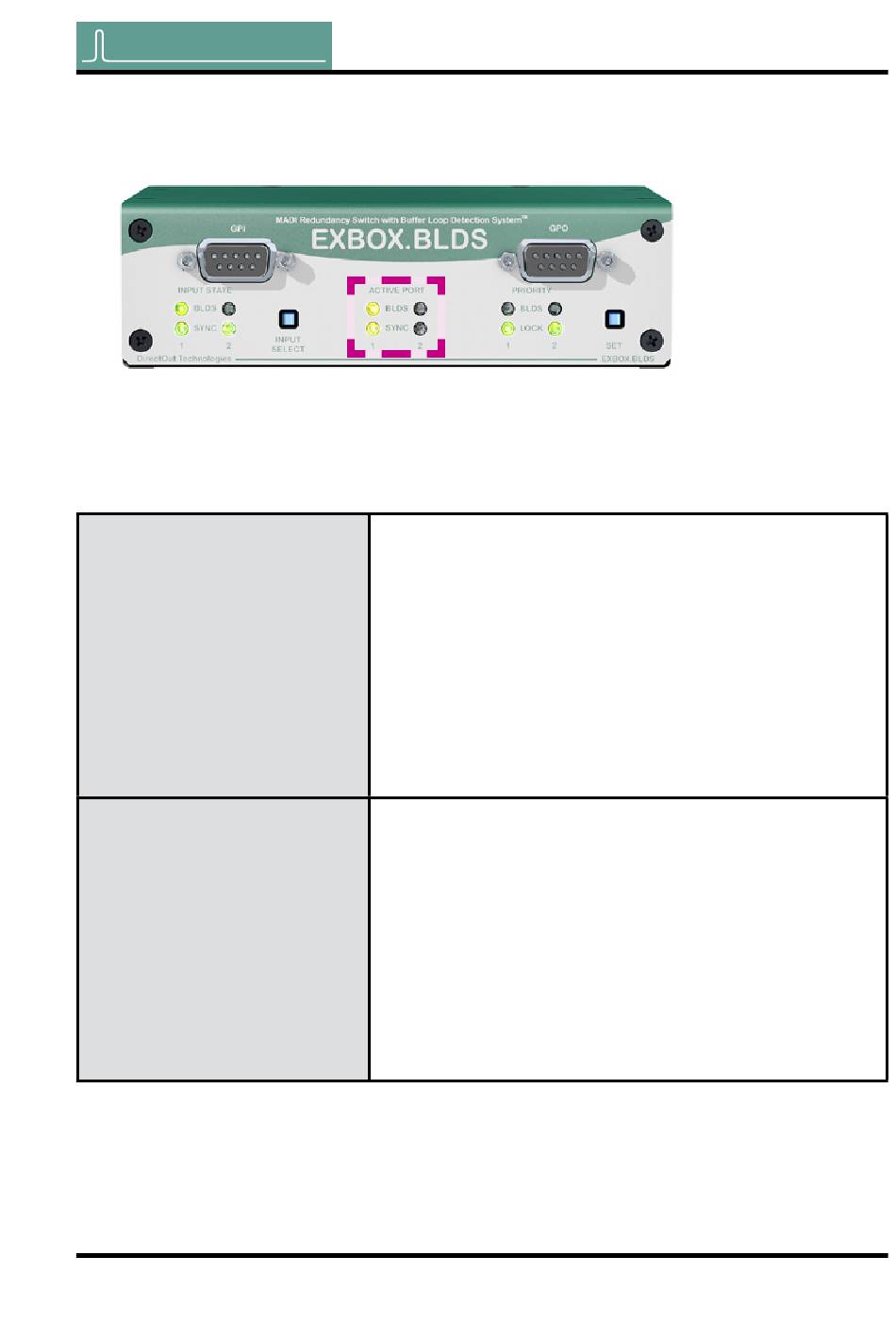

output state
Two LEDs each monitor the selection of the MADI in-
put for the two MADI outputs (SYNC) and the presence
of a BLDS signal at the output (BLDS).
leD sYnC 1
(Active port)
leD sYnC 2
(Active port)
© 2014 DirectOut GmbH
®
This leD indicates the selection of
MADi input 1 for the output signal.
LED OFF = MADI input 1 is not
selected for the output.
LED blinking = MADI input 1 is selected for
the output but no valid signal is detected.
LED ON = MADI input 1 is
selected for the output.
This leD indicates the selection of
MADi input 2 for the output signal.
LED OFF = MADI input 2 is not
selected for the output.
LED blinking = MADI input 2 is selected for
the output but no valid signal is detected.
LED ON = MADI input 2 is
selected for the output.
EXBOX.BLDS Manual Version 1.1
Chapter 4: Operation
page 29 of 56
